Despiece RUGER PC CARBINE
Key - Part Name

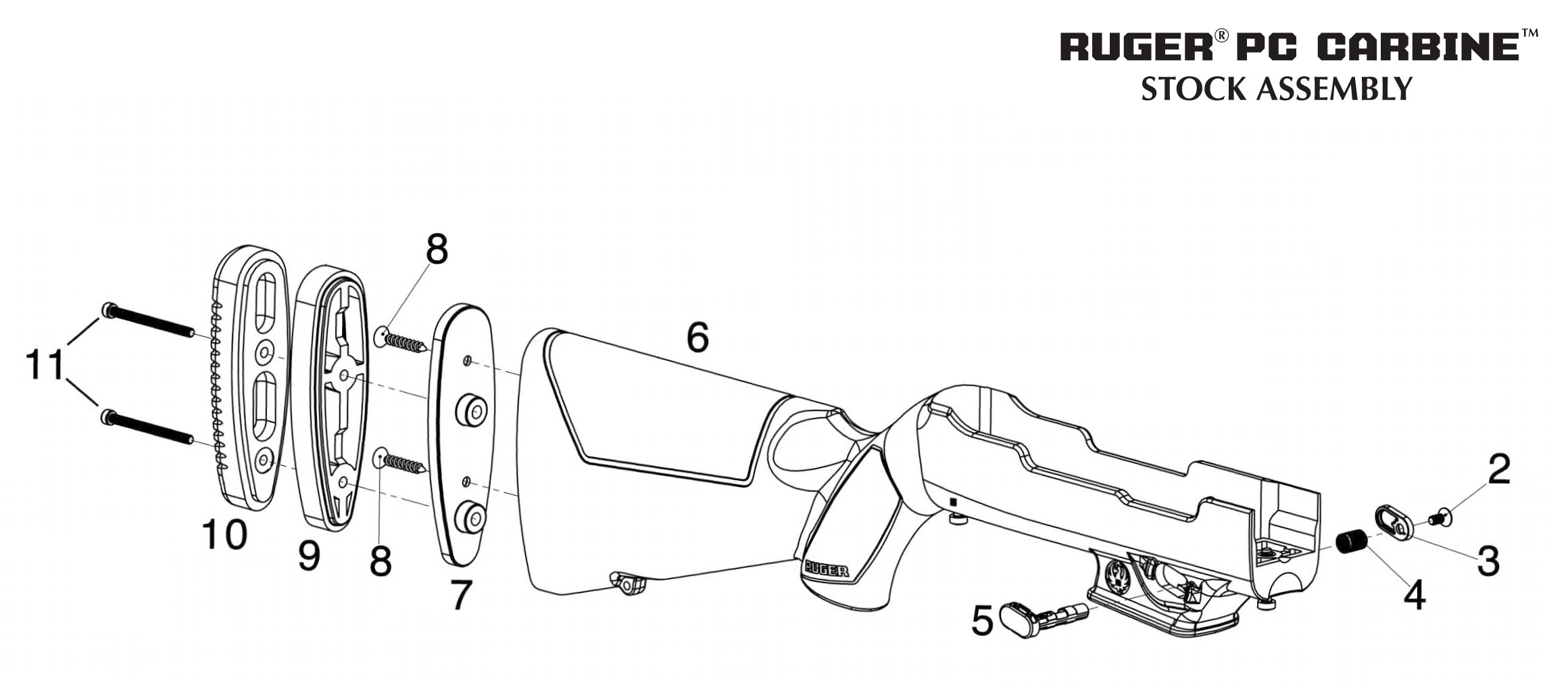

1 - Stock Assembly
2 - Low Profile Cap Screw
3 - Magazine Release Button
4 - Magazine Release Spring
5 - Magazine Release Stud
6 - Stock Assembly
7 - Butt Pad Holder
8 - Butt Plate Screw, 2 Req’d
9 - Pad Spacer
10 - Recoil Pad Assembly
11 - Recoil Pad Screws

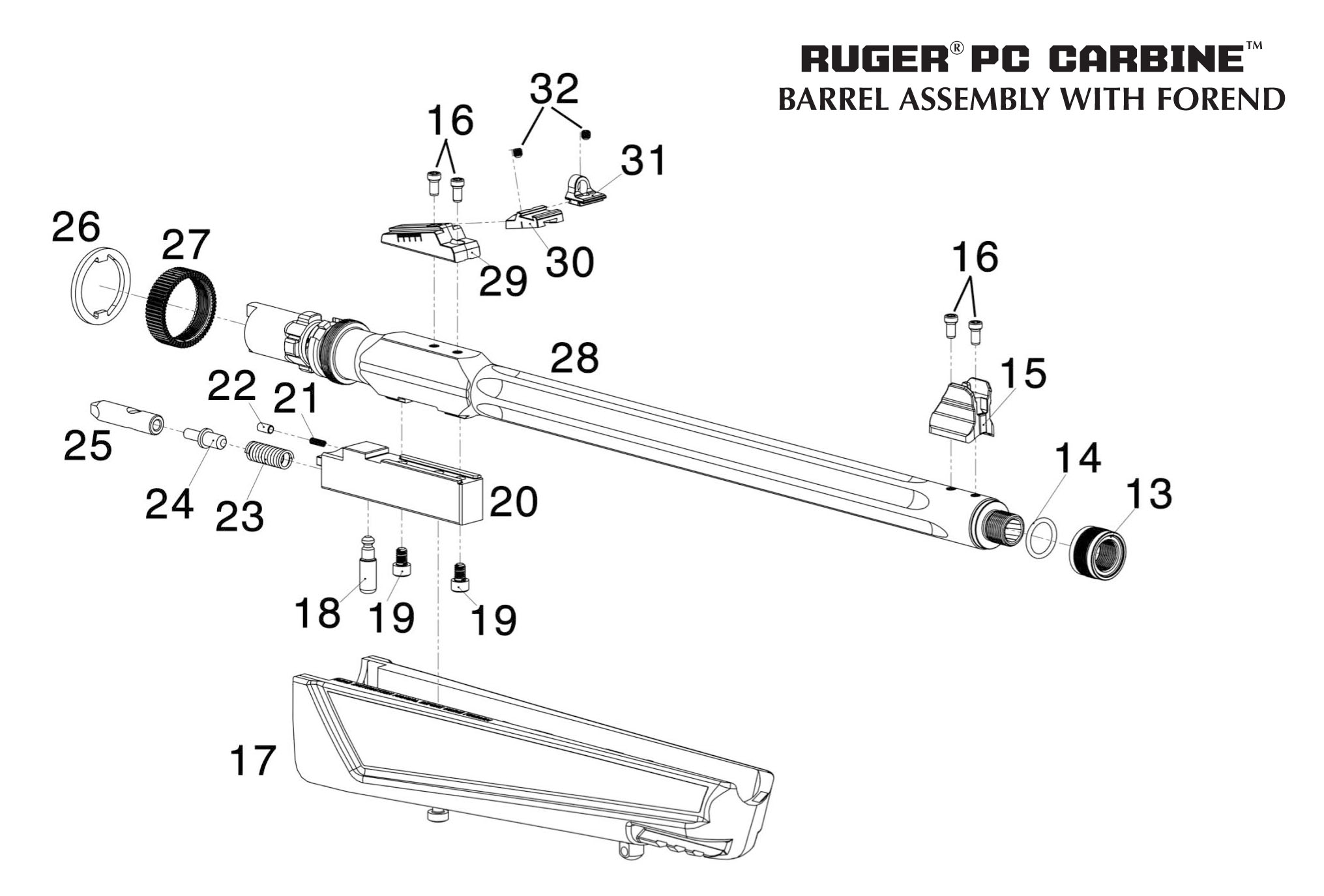

12 - Barrel Assembly with Forend
13 - Thread Protector
14 - O-Ring
15 - Front Sight
16 - Sight Screws, 4 Req’d
17 - Forend Assembly
18 - Locking Lever
19 - Mounting Screws, 2 Req’d
20 - Takedown Block
21 - Detent Spring
22 - Detent Plunger
23 - Locking Plunger Spring
24 - Locking Plunger Detent
25 - Locking Plunger
26 - Barrel Spacer
27 - Adjustment Ring
28 - Barrel
29 - Rear Sight Base
30 - Rear Sight Slide
31 - Rear Sight Aperture
32 - Set Screws, 2 Req’d

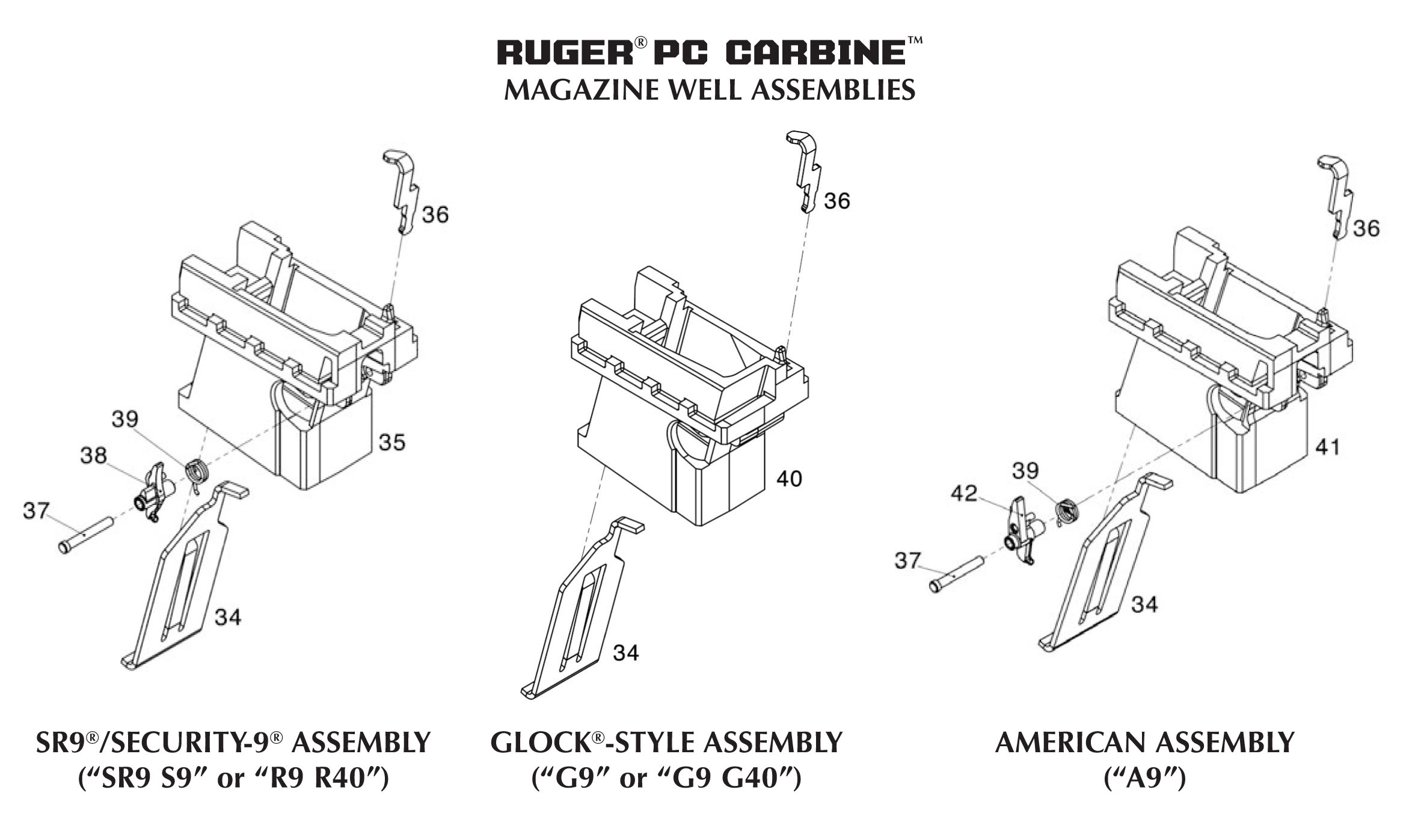

33 - Magazine Well Assemblies (SR9/G9/American)
34 - Ejector
35 - Magazine Well, SR9
36 - Last Round Plunger
37 - Latch Pin
38 - Magazine Latch, SR9
39 - Magazine Latch Spring
40 - Magazine Well, G9
41 - Magazine Well, American 9mm
42 - Magazine Latch, American 9mm
43 - Last Round Catch
44 - Last Round Spring
45 - Last Round Pivot Pin
46 - Barrel Block

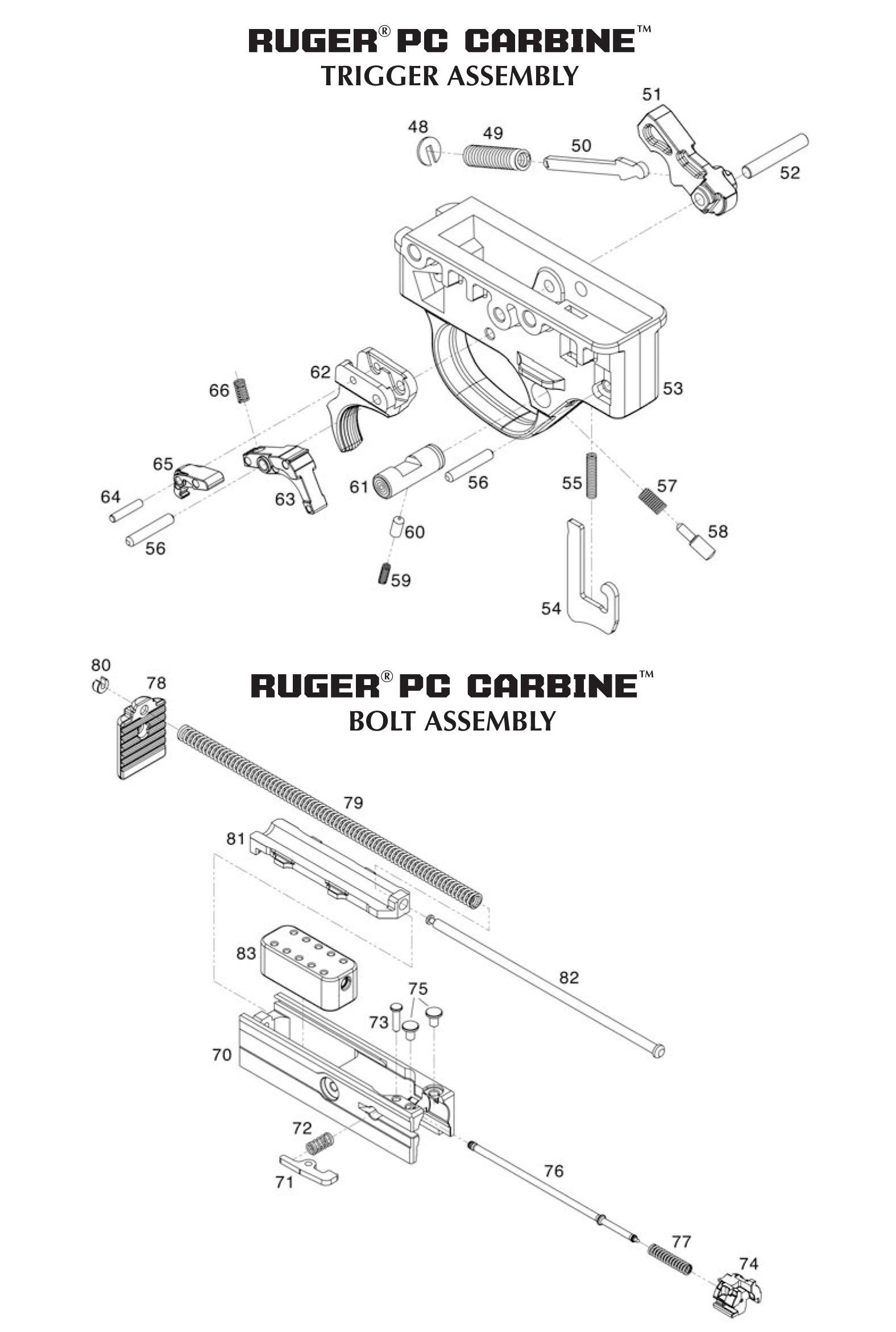

*47 - Trigger Assembly
*48 - Hammer Strut Washer
*49 - Hammer Strut Spring
*50 - Hammer Strut
*51 - Hammer
*52 - Hammer Pivot Pin
*53 - Trigger Guard
54 - Bolt Stop
55 - Bolt Stop Spring
*56 - Trigger Pivot Pin
*57 - Trigger Plunger Spring
*58 - Trigger Plunger
*59 - Safety Detent Plunger Spring
*60 - Safety Detent Plunger
*61 - Safety Button
*62 - Trigger
*63 - Sear
*64 - Disconnector Pin
*65 - Disconnector
*66 - Disconnector Spring
67 - Socket Head Cap Screw
68 - Charging Handle
69 - Bolt Assembly
70 - Bolt
71 - Extractor
72 - Extrctor Spring
73 - Extractor Pin
*74 - Bolt Head
75 - Bolt Head Retaining Pins, 2 Req’d
76 - Firing Pin
77 - Firing Pin Spring
78 - Buffer
79 - Recoil Spring
80 - Recoil Spring Retainer
81 - Bolt Top
82 - Guide Rod
83 - Dead Blow Weight
84 - Trigger Guard Cross Pins, 2 Req’d
†85 - Receiver
86 - Button Head Screws, 3 Req’d
* Parts so marked must be factory fit.
† The receiver is a serial-numbered part and is not offered for sale.

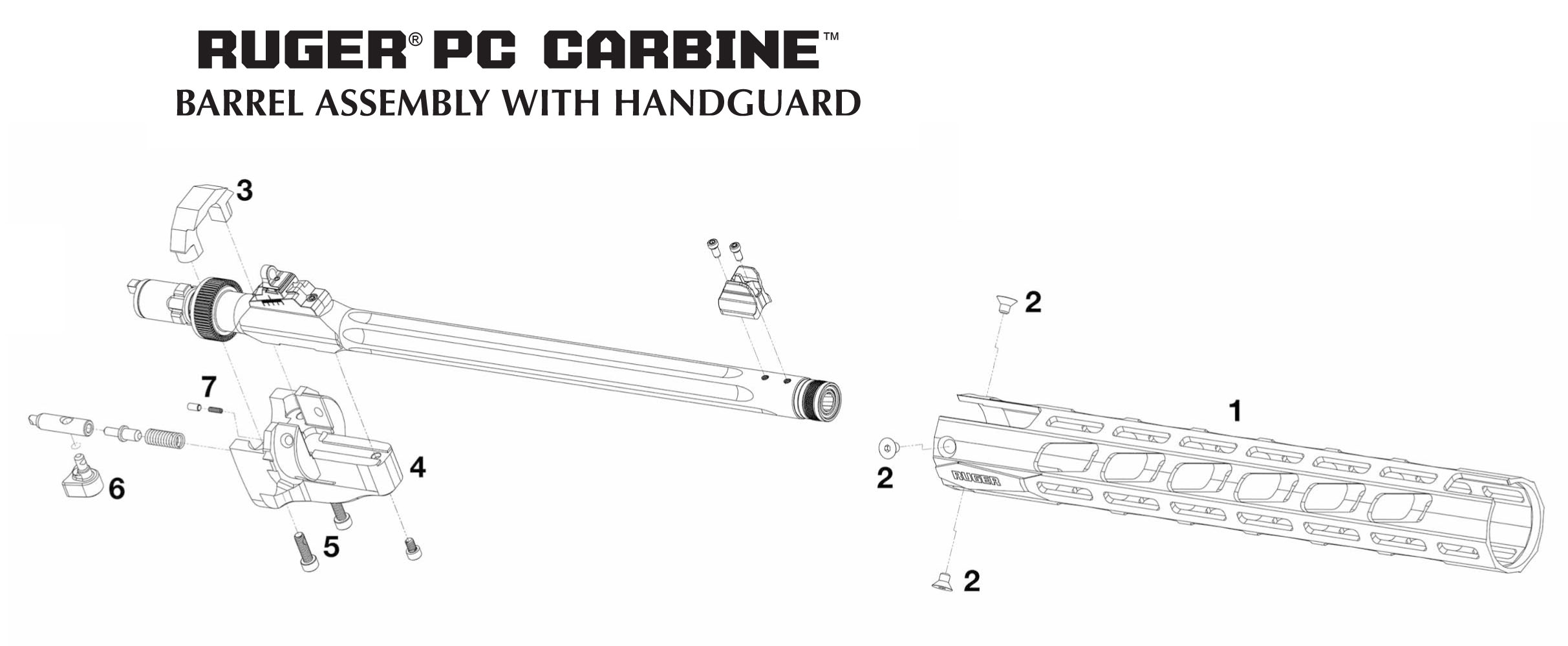

Key - Part Name
1 - Handguard
2 - Handguard Screw, 4 Req’d
3 - Barrel Clamp
4 - Handguard Mount
5 - Barrel Clamp Screw, 2 Req’d
6 - Locking Lever
7 - Detent Spring & Plunger
