Despiece RUGER American Standard / Hunter
Key- Part Name

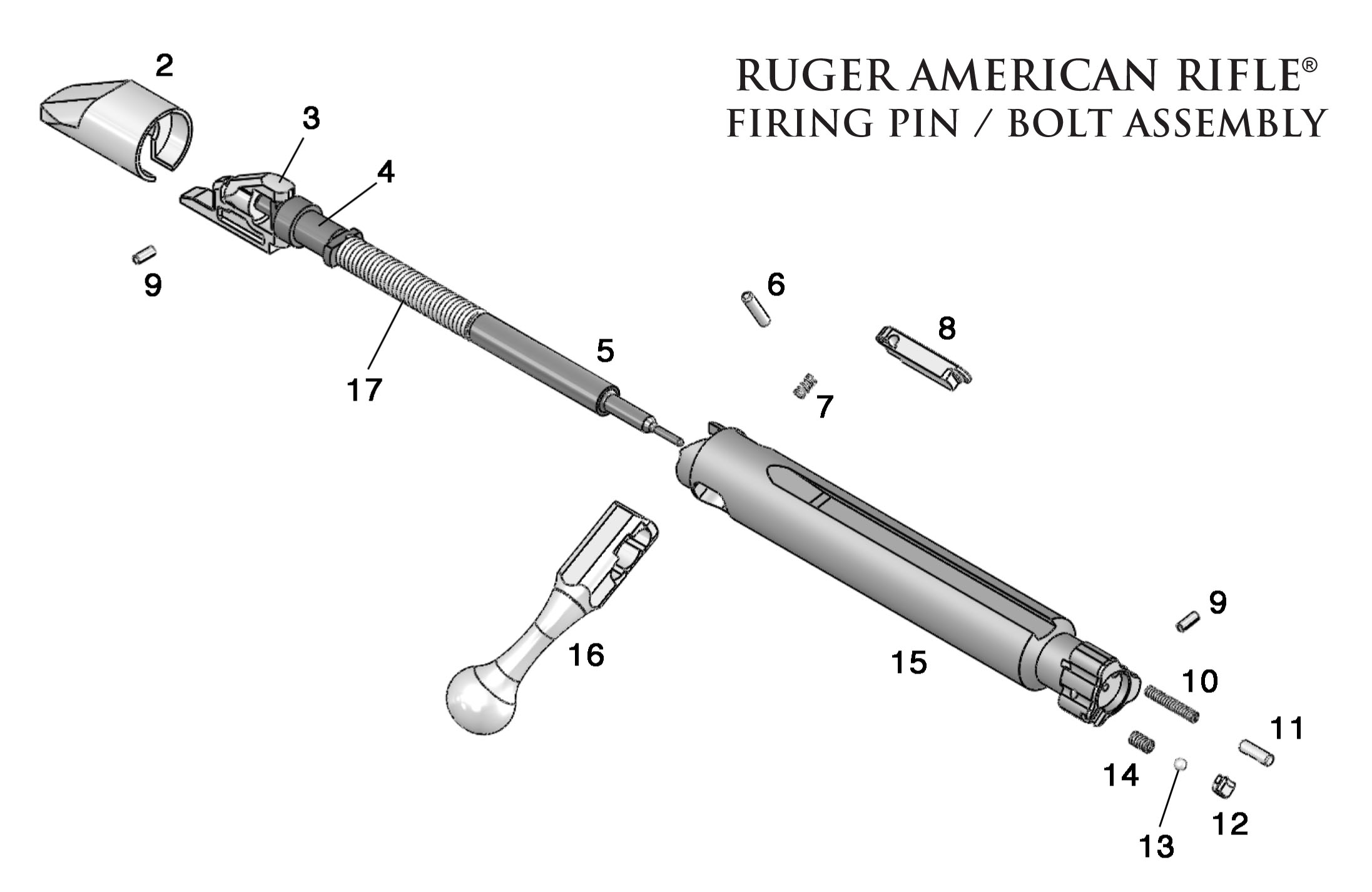

1 - Bolt / Firing Pin Assembly – Complete - Includes Key Nos. 2 - 17 (See Exploded View p. 35)
2 - Bolt Shroud
3 - Firing Pin Back
4 - Firing Pin Spring Stop
5 - Firing Pin
6 - Bolt Stop Pin
7 - Bolt Stop Spring
8 - Bolt Stop Lever
9 - Ejector/Firing Pin Back Pin
10 - Ejector Spring
11 - Ejector Plunger, Short Action
12 - Extractor
13 - Extractor Ball
14 - Extractor Spring
*15 - Bolt Body
16 - Bolt Handle
17 - Firing Pin Spring
†18 - Receiver, Long Action
*19 - Barrel Nut
*20 - Barrels

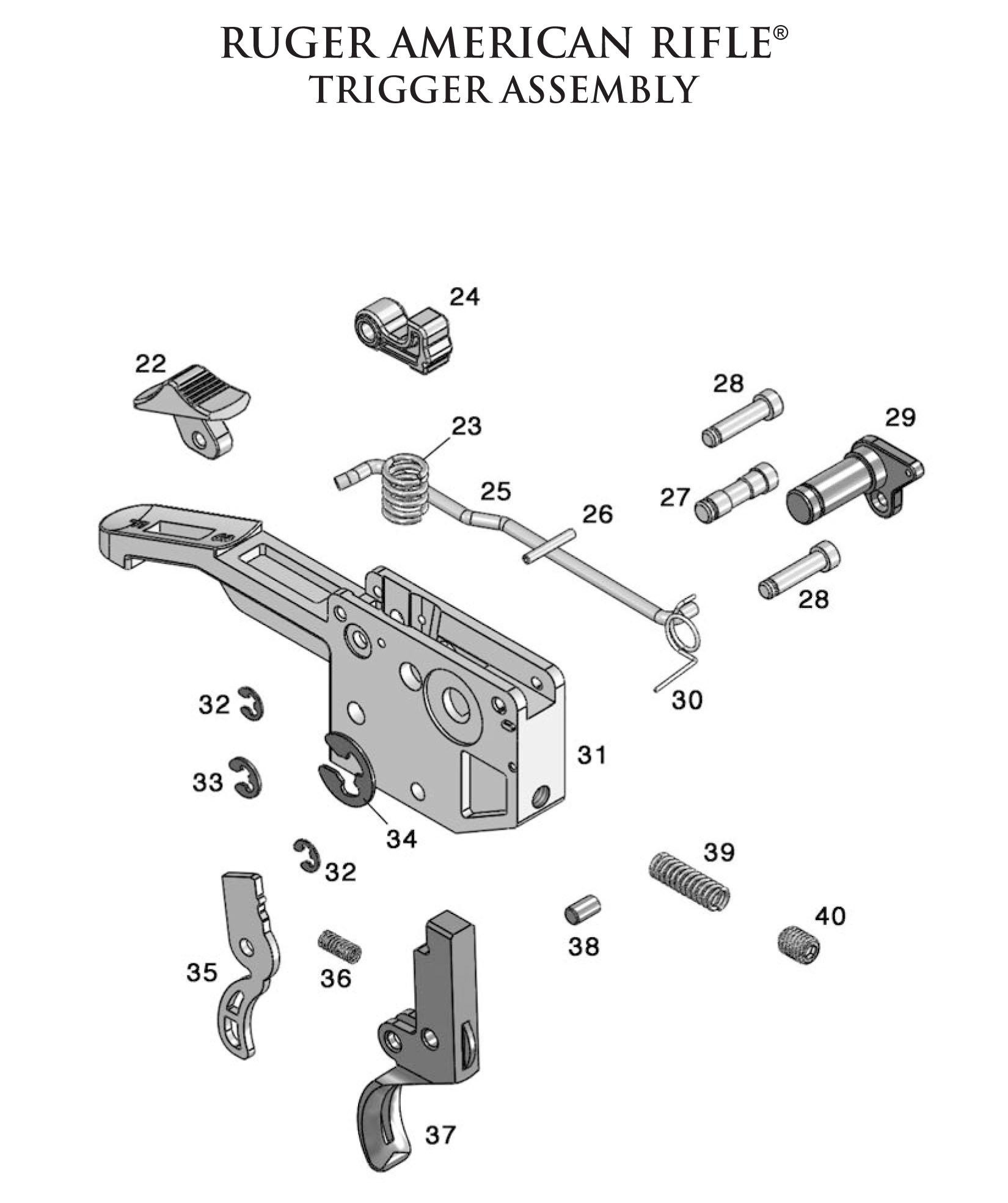

*21 - Trigger Assembly – Complete - Includes Key Nos. 22 - 40 (See Exploded View p. 36)
22 - Safety Button
23 - Sear Spring
*24 - Sear
*25 - Safety Link
26 - Sear Stop Pin
*27 - Trigger Block Pin
28 - Trigger Sear Pin, 2 Req'd
*29 - Safety Shaft
*30 - Safety Spring
*31 - Trigger Housing
32 - Trigger Sear Pin E-Clip, 2 Req'd
33 - Trigger Block Pin E-Clip
34 - Safety Shaft E-Clip
35 - Trigger Release
36 - Trigger Release Spring
37 - Trigger
38 - Trigger Release Pin
39 - Trigger Spring
40 - Trigger Adjustment Screw
41 - Trigger Housing Pin, 2 Req'd

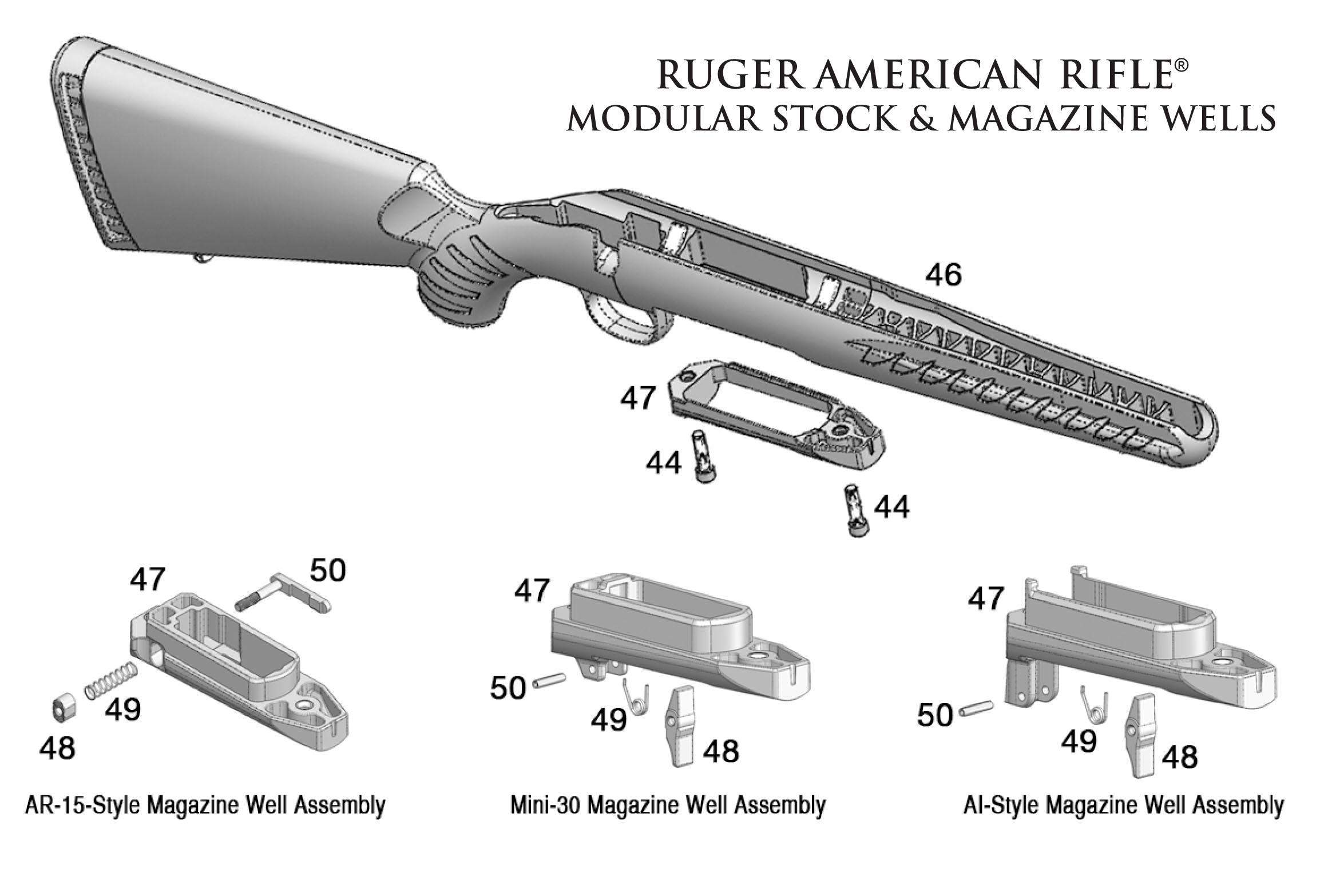

42 - Recoil Pad
43 - Sling Swivel Stud
44 - Action Screws, 2 Req'd
45 - Magazine
46 - Stock Assembly
47 - Magazine Well
48 - Magazine Button - AR-Style Magazine Well Magazine Latch - Mini-30 & AI-Style Magazine Well
49 - Magazine Latch Spring
50 - Magazine Latch Pin
* Parts so marked must be factory fit.
† The receiver is a serial-numbered part and is not offered for sale
