Despiece Savage 10/110 LE - 12/112 TARGET/VARMINT
MODELOS DE LIBERACIÓN INFERIOR:
ACCUTRIGGER (LIBERACIÓN INFERIOR): CARGA SUPERIOR Y CARGADOR DE CAJA DESMONTABLE
|
Item # |
Description |
Item # |
Description |
Item # |
Description |
|
5 |
Magazine box |
12P |
Ejector spring |
19C |
Rear action screw |
|
6 |
Magazine follower assembly |
12Q |
Ejector retaining pin |
19D |
Front action screw |
|
7 |
Magazine retaining clip |
12S |
Bolt assembly screw |
26A |
Recoil arrestor |
|
10 |
Detachable box magazine |
13 |
Frame assembly |
26D |
Crush washer |
|
|
assembly |
16B |
Rear sight assembly |
28 |
Bolt release button |
|
12B |
Rear baffle assembly |
17B |
Front sight blade |
29 |
Button spring |
|
12C |
Bolt handle |
17C |
Front sight base |
30 |
Button retainer |
|
12L |
Extractor |
18 |
Stock assembly |
529 |
Swivel stud |
|
12M |
Extractor spring |
18H |
Spacer |
530 |
Swivel stud |
|
12N |
1/8" steel ball |
19A |
Trigger guard |
531 |
10-32 Lock nut |
|
12O |
Ejector |
19B |
Rear trigger guard screw |
533 |
Tension adjustment tool |
MODELOS DE LIBERACIÓN LATERAL

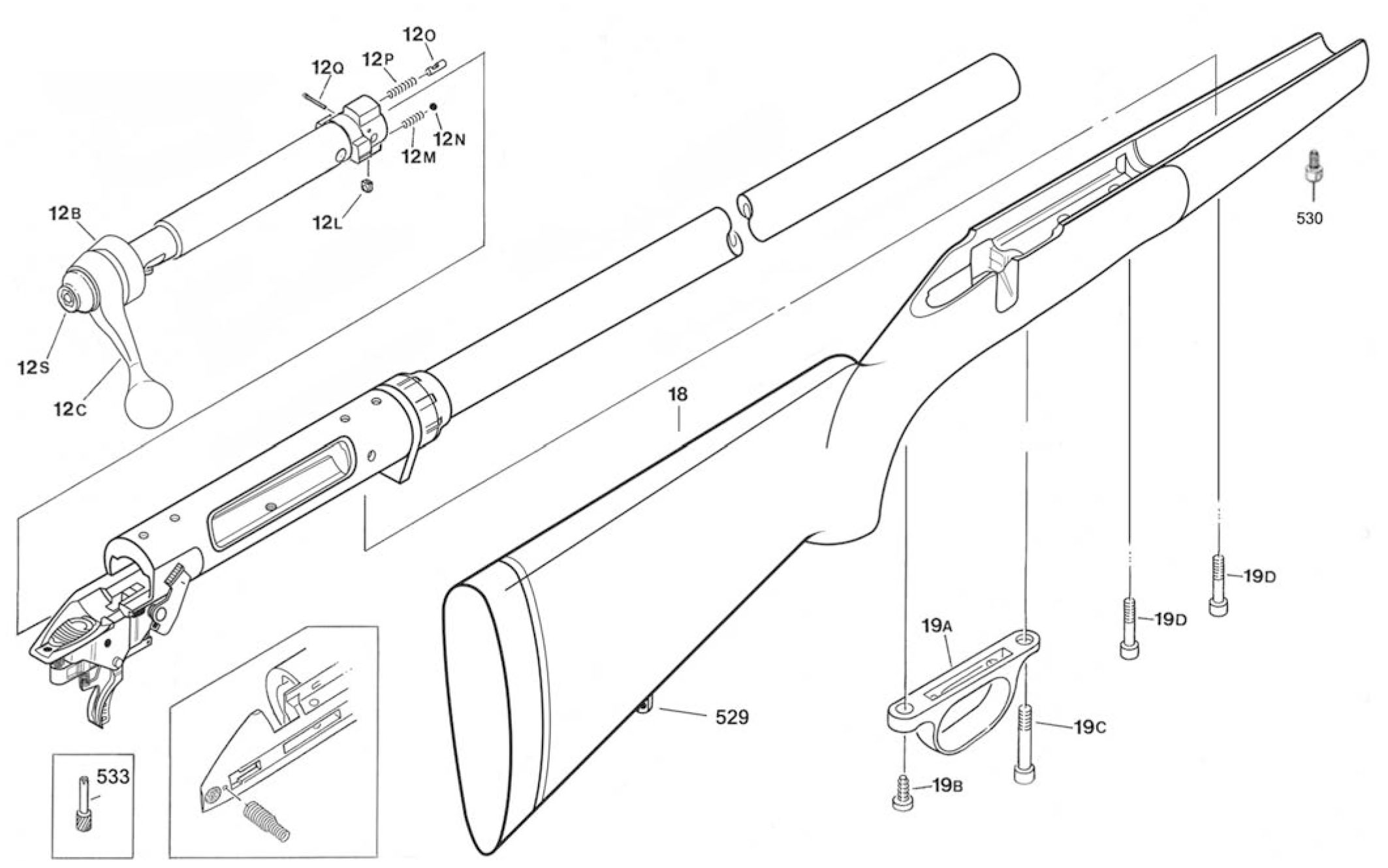

ACCUTRIGGER ACCIÓN TARGET: MONOTIRO
|
Item # |
Description |
Item # |
Description |
Item # |
Description |
|
12B |
Rear baffle assembly |
12P |
Ejector spring |
19C |
Rear action screw |
|
12C |
Bolt handle |
12Q |
Ejector retaining pin |
19D |
Front action screw |
|
12L |
Extractor |
12S |
Bolt assembly screw |
529 |
Swivel stud |
|
12M |
Extractor spring |
18 |
Stock assembly |
530 |
Swivel stud |
|
12N |
1/8” steel ball |
19A |
Trigger guard |
533 |
Tension adjustment tool |
|
12O |
Ejector |
19B |
rear trigger guard screw |
|
|

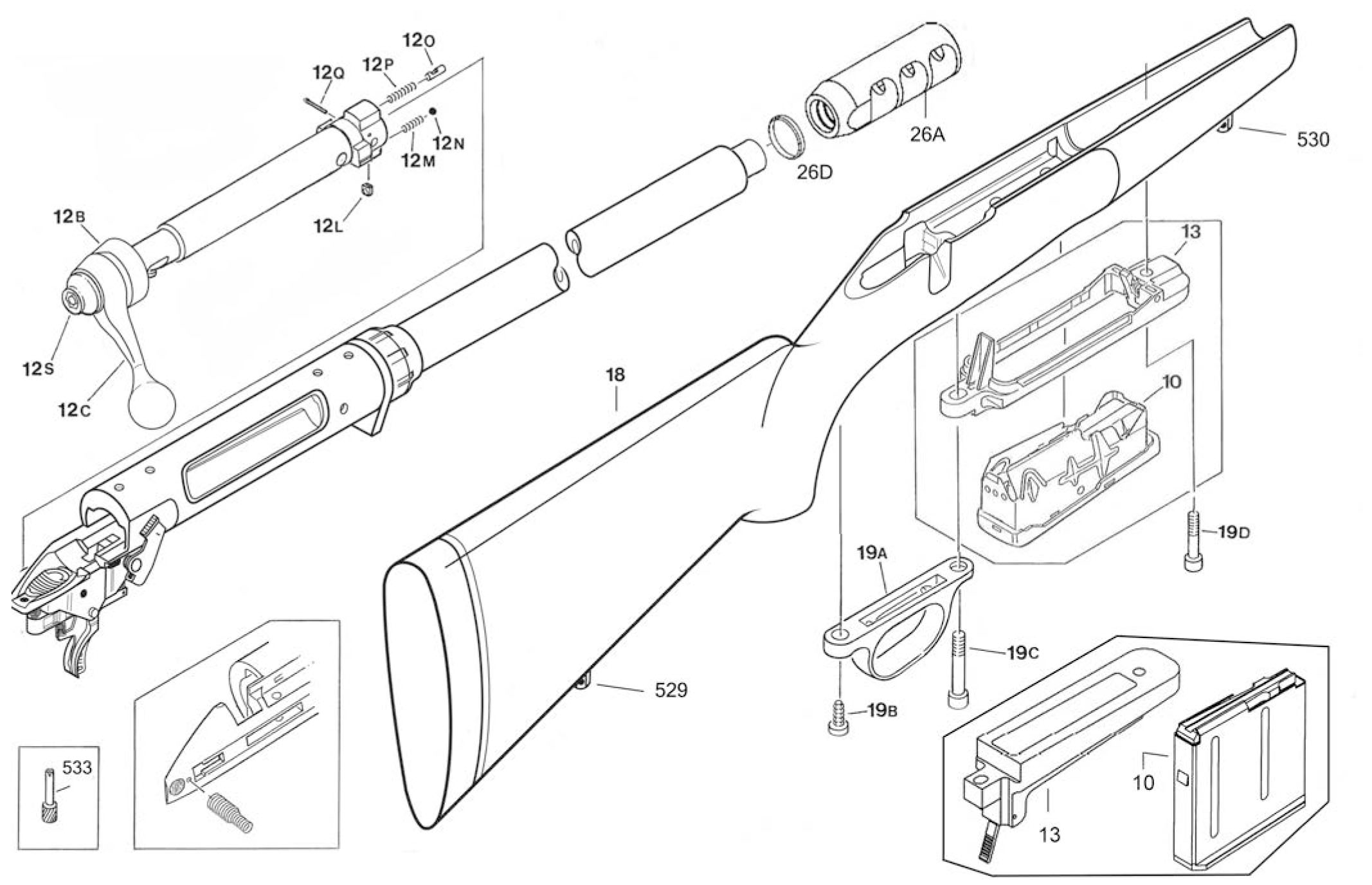

ACCUTRIGGER (LIBERACIÓN LATERAL): CARGA SUPERIOR Y CARGADOR DE CAJA DESMONTABLE
|
Item # |
Description |
Item # |
Description |
Item # |
Description |
|
5 |
Magazine box |
12P |
Ejector spring |
19B |
Rear trigger guard screw |
|
6 |
Magazine follower assembly |
12Q |
Ejector retaining pin |
19C |
Rear action screw |
|
7 |
Magazine retaining clip |
12S |
Bolt assembly screw |
19D |
Front action screw |
|
10 |
Detachable box magazine |
13 |
Frame assembly |
26A |
Recoil arrestor |
|
12B |
Rear baffle assembly |
16B |
Rear sight assembly |
26D |
Crush washer |
|
12C |
Bolt handle |
|
assembly |
529 |
Swivel stud |
|
12L |
Extractor |
17B |
Front sight blade |
530 |
Swivel stud |
|
12M |
Extractor spring |
17C |
Front sight base |
533 |
Tension adjustment tool |
|
12N |
1/8" steel ball |
18 |
Stock assembly |
|
|
|
12O |
Ejector |
19A |
Trigger guard |
|
|

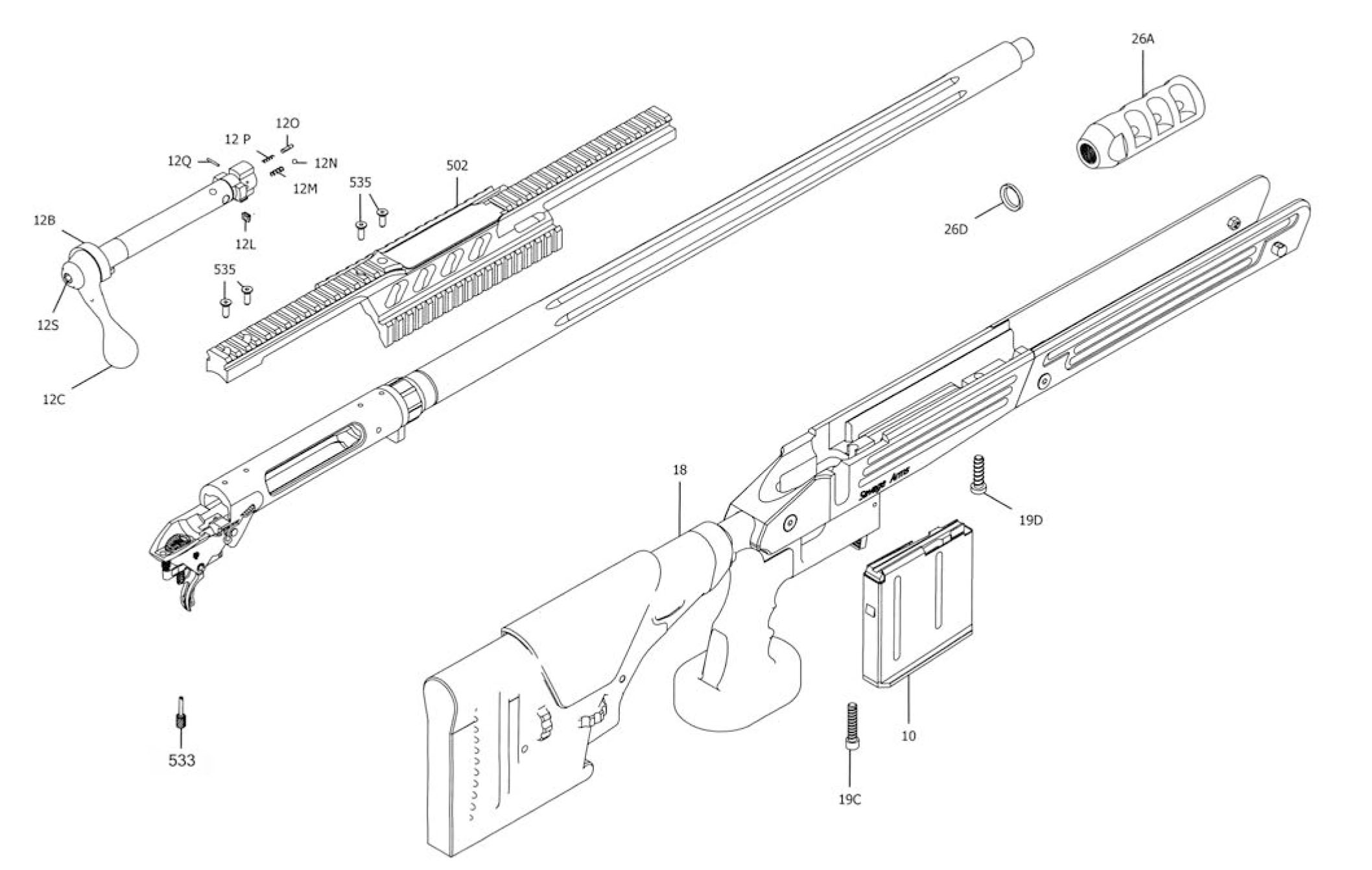

ACUTRIGGER (LIBERACIÓN LATERAL): "BA"
|
Item # |
Description |
Item # |
Description |
Item # |
Description |
|
10 |
Detachable box magazine |
12O |
EJECTOR |
26A |
Recoil arrestor |
|
|
assembly |
12P |
Ejector spring |
26D |
Crush washer |
|
12B |
Rear baffle assembly |
12Q |
Ejector retaining pin |
502 |
Scope mount rail |
|
12C |
Bolt handle |
12S |
Bolt assembly screw |
533 |
Tension adjustment tool |
|
12L |
Extractor |
18 |
Stock assembly |
535 |
Scope mount rail screws |
|
12M |
Extractor spring |
19C |
Rear action screw |
|
|
|
12N |
1/8" steel ball |
19D |
Front action screw |
|
|
