Despiece Savage 10/110 - 11/111 - 14/114 - 16/116
MODELOS DE LIBERACIÓN INFERIOR:
ACCUTRIGGER (LIBERACIÓN INFERIOR): CARGA SUPERIOR Y CARGADOR DE CAJA DESMONTABLE
|
Item # |
Description |
Item # |
Description |
|
5 |
Magazine box |
16B |
Rear sight assembly |
|
6 |
Magazine follower assembly |
17B |
Front sight blade |
|
7 |
Magazine retaining clip |
17C |
Front sight base |
|
10 |
Detachable box magazine assembly |
18 |
Stock assembly |
|
12B |
Rear baffle assembly |
19A |
Trigger guard |
|
12C |
Bolt handle |
19B |
Rear trigger guard screw |
|
12L |
Extractor |
19C |
Rear action screw |
|
12M |
Extractor spring |
19D |
Front action screw |
|
12N |
1/8" steel ball |
28 |
Bolt Release Button |
|
12O |
Ejector |
29 |
Button Spring |
|
12P |
Ejector spring |
30 |
Button Retainer |
|
12Q |
Ejector retaining pin |
529 |
Swivel stud |
|
12S |
Bolt assembly screw |
533 |
Tension adjustment tool |
|
13 |
Frame assembly |
|
|

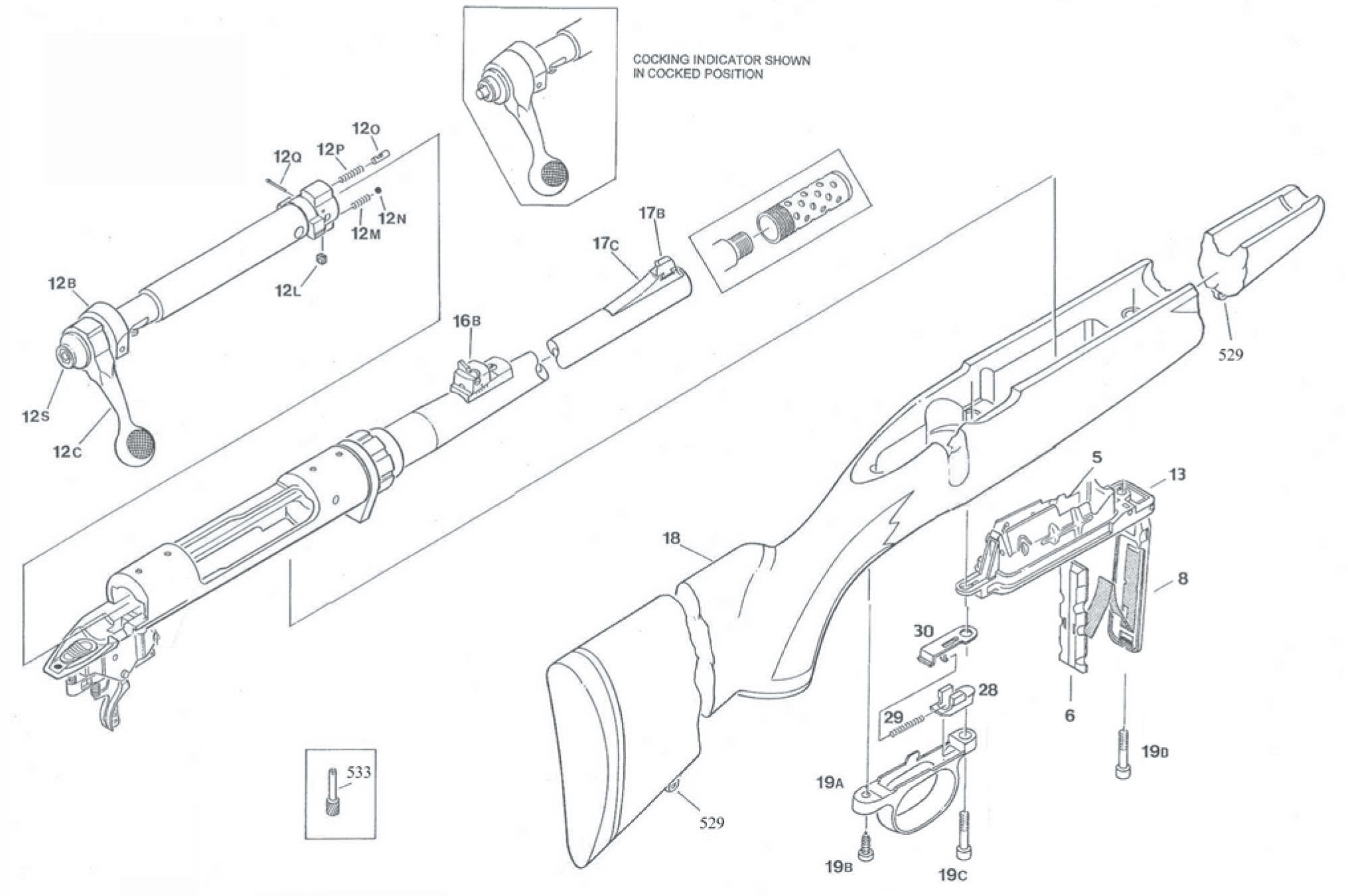

ACCUTRIGGER (DESBLOQUEO INFERIOR): PLACA DE PISO CON BISAGRAS
|
Item # |
Description |
Item # |
Description |
|
5 |
Magazine box |
16B |
Rear sight assembly |
|
6 |
Magazine follower assembly |
17B |
Front sight blade |
|
8 |
Hinge plate |
17C |
Front sight base |
|
12B |
Rear baffle assembly |
18 |
Stock assembly |
|
12C |
Bolt handle |
19A |
Trigger guard |
|
12L |
Extractor |
19B |
Rear trigger guard screw |
|
12M |
Extractor spring |
19C |
Rear action screw |
|
12N |
1/8" steel ball |
19D |
Front action screw |
|
12O |
Ejector |
28 |
Bolt Release Button |
|
12P |
Ejector spring |
29 |
Button Spring |
|
12Q |
Ejector retaining pin |
30 |
Button Retainer |
|
12S |
Bolt assembly screw |
529 |
Swivel stud |
|
13 |
Frame assembly |
533 |
Tension adjustment tool |
MODELOS DE LIBERACIÓN LATERAL

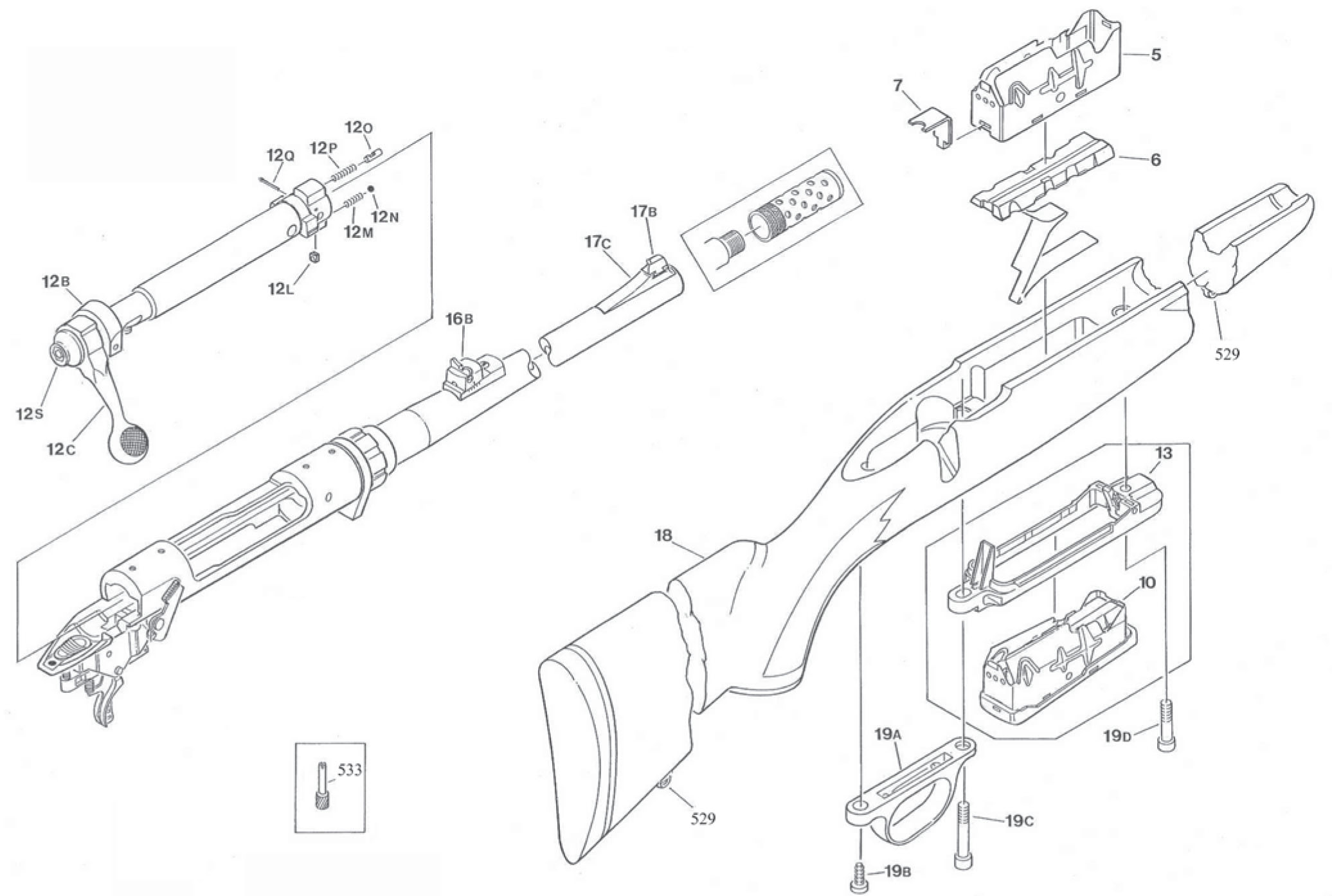

ACCUTRIGGER (LIBERACIÓN LATERAL): CARGA SUPERIOR Y CARGADOR DE CAJA DESMONTABLE
|
Item # |
Description |
Item # |
Description |
|
5 |
Magazine box |
12S |
Bolt assembly screw |
|
6 |
Magazine follower assembly |
13 |
Frame assembly |
|
7 |
Magazine retaining clip |
16B |
Rear sight assembly |
|
10 |
Detachable box magazine assembly |
17B |
Front sight blade |
|
12B |
Rear baffle assembly |
17C |
Front sight base |
|
12C |
Bolt handle |
18 |
Stock assembly |
|
12L |
Extractor |
19A |
Trigger guard |
|
12M |
Extractor spring |
19B |
Rear trigger guard screw |
|
12N |
1/8" steel ball |
19C |
Rear action screw |
|
12O |
Ejector |
19D |
Front action screw |
|
12P |
Ejector spring |
529 |
Swivel stud |
|
12Q |
Ejector retaining pin |
533 |
Tension adjustment tool |

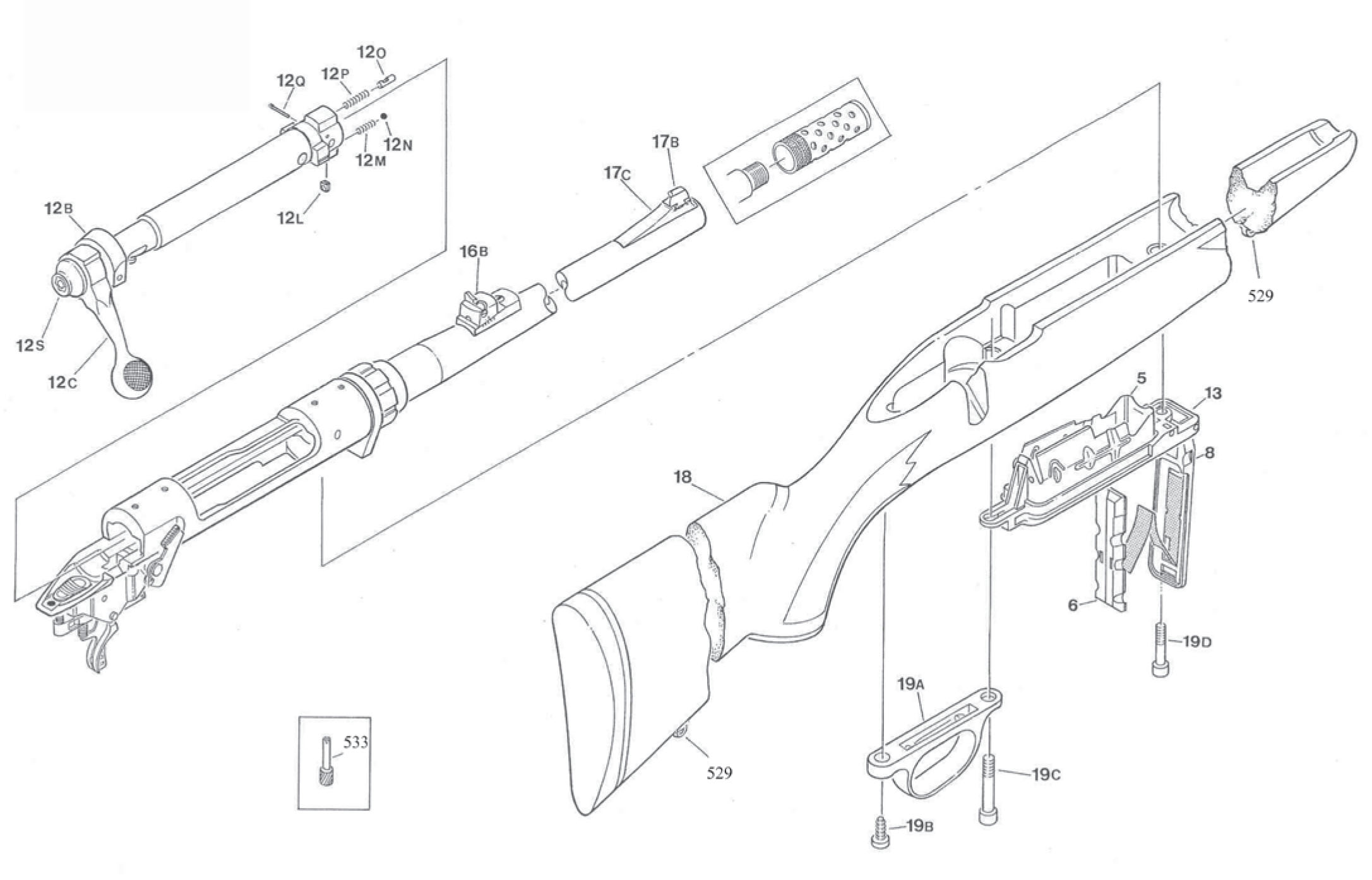

ACCUTRIGGER (LIBERACIÓN LATERAL): PLACA DE PISO CON BISAGRAS
|
Item # |
Description |
Item # |
Description |
|
5 |
Magazine box |
13 |
Frame assembly |
|
6 |
Magazine follower assembly |
16B |
Rear sight assembly |
|
8 |
Magazine bottom |
17B |
Front sight blade |
|
12B |
Rear baffle assembly |
17C |
Front sight base |
|
12C |
Bolt handle |
18 |
Stock assembly |
|
12L |
Extractor |
19A |
Trigger guard |
|
12M |
Extractor spring |
19B |
Rear trigger guard screw |
|
12N |
1/8" steel ball |
19C |
Rear action screw |
|
12O |
Ejector |
19D |
Front action screw |
|
12P |
Ejector spring |
529 |
Swivel stud |
|
12Q |
Ejector retaining pin |
533 |
Tension adjustment tool |
|
12S |
Bolt assembly screw |
|
|
