Despiece RUGER SR1911
Key No. - Part Name
*1 - Barrel Bushing (Does Not Apply to Bull Barrel Models)
*2 - Slide
*3 - Barrel
4 - Barrel Link
5 - Barrel Link Pin
6 - Extractor
7 - Recoil Spring
8 - Recoil Spring Guide
9 - Recoil Spring Plug
10 - Firing Pin
11 - Firing Pin Stop
12 - Firing Pin Spring
†13 - Frame
14 - Magazine Assembly, 8-rd
15 - Magazine Catch
16 - Magazine Catch Spring
17 - Magazine Catch Lock
18 - Hammer
19 - Hammer Strut
20 - Hammer Strut Pin
21 - Hammer Pin
22 - Grip Safety
23 - Slide Stop
24 - Trigger Assembly
25a - Ambidextrous Safety Lock, Left Side
25b - Ambidextrous Safety Lock, Right Side (Not Illustrated)
26 - Disconnector
27 - Sear
28 - Sear Pin
29 - Slide Stop Plunger
30 - Plunger Spring
31 - Safety Lock Plunger
32 - Ejector Pin
33 - Ejector
34 - Rear Sight
35 - Rear Sight Set Screw
36 - Front Sight
37 - Mainspring Cap
38 - Mainspring
39 - Mainspring Housing Pin Retainer
40 - Mainspring Cap Pin
41 - Mainspring Housing
42 - Mainspring Housing Pin
43 - Sear Spring
44 - Grip Screw Bushing, 2 Req’d
45 - Grip Screw, 2 Req’d
46 - Grips, Sold as Pair
47 - Barrel Bushing Wrench (Does Not Apply to Bull Barrel Models)
48 - Magazine Assembly, 7-rd
* Parts so marked must be factory installed.
† The frame is defined as a “firearm” by Federal Law and is not sold as a separate component.

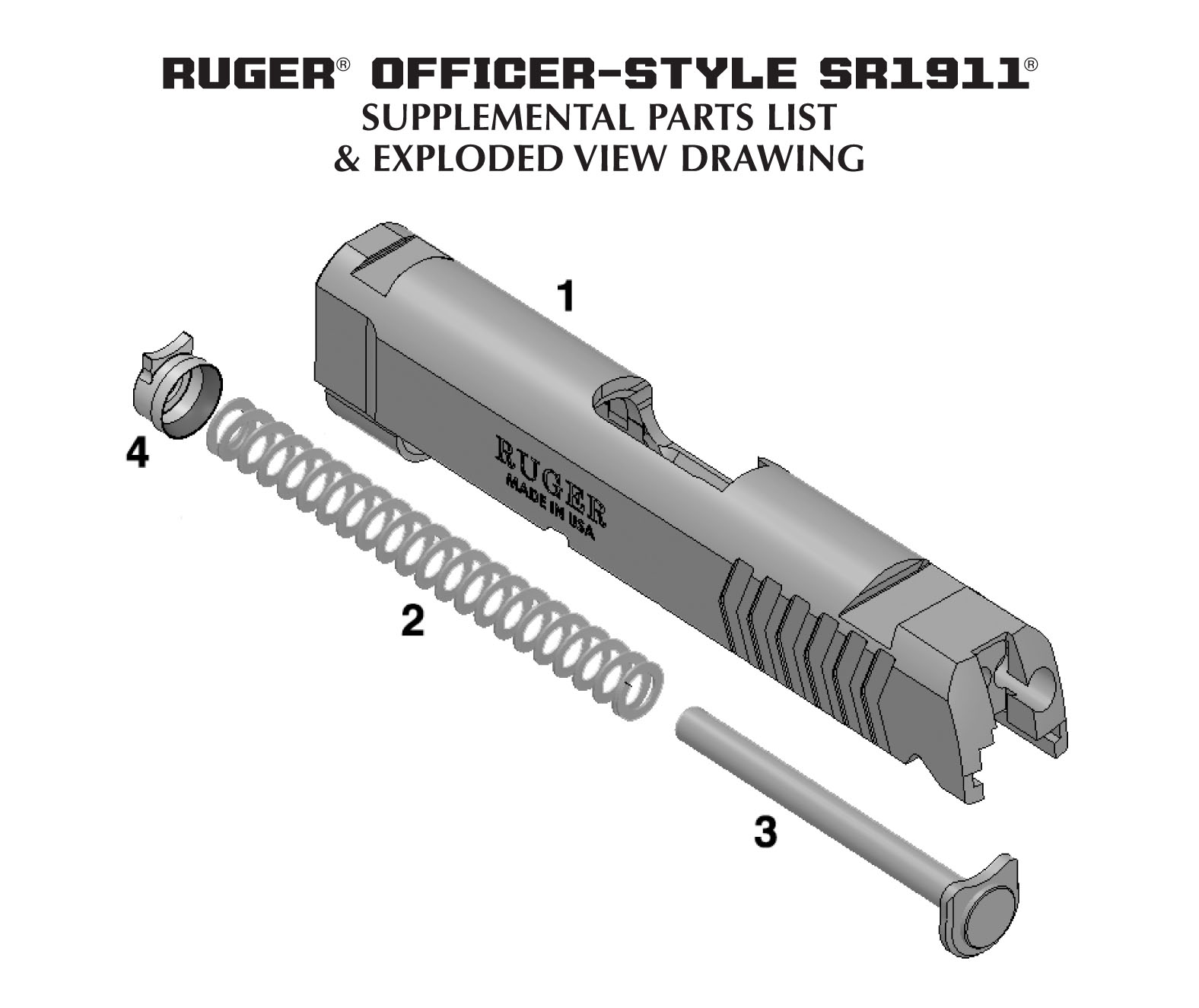

Key No. - Part Name
*1 - Slide
2 - Recoil Spring
3 - Guide Rod
4 - Recoil Spring Plug
* Parts so marked must be factory installed.
