Despiece RUGER SP101

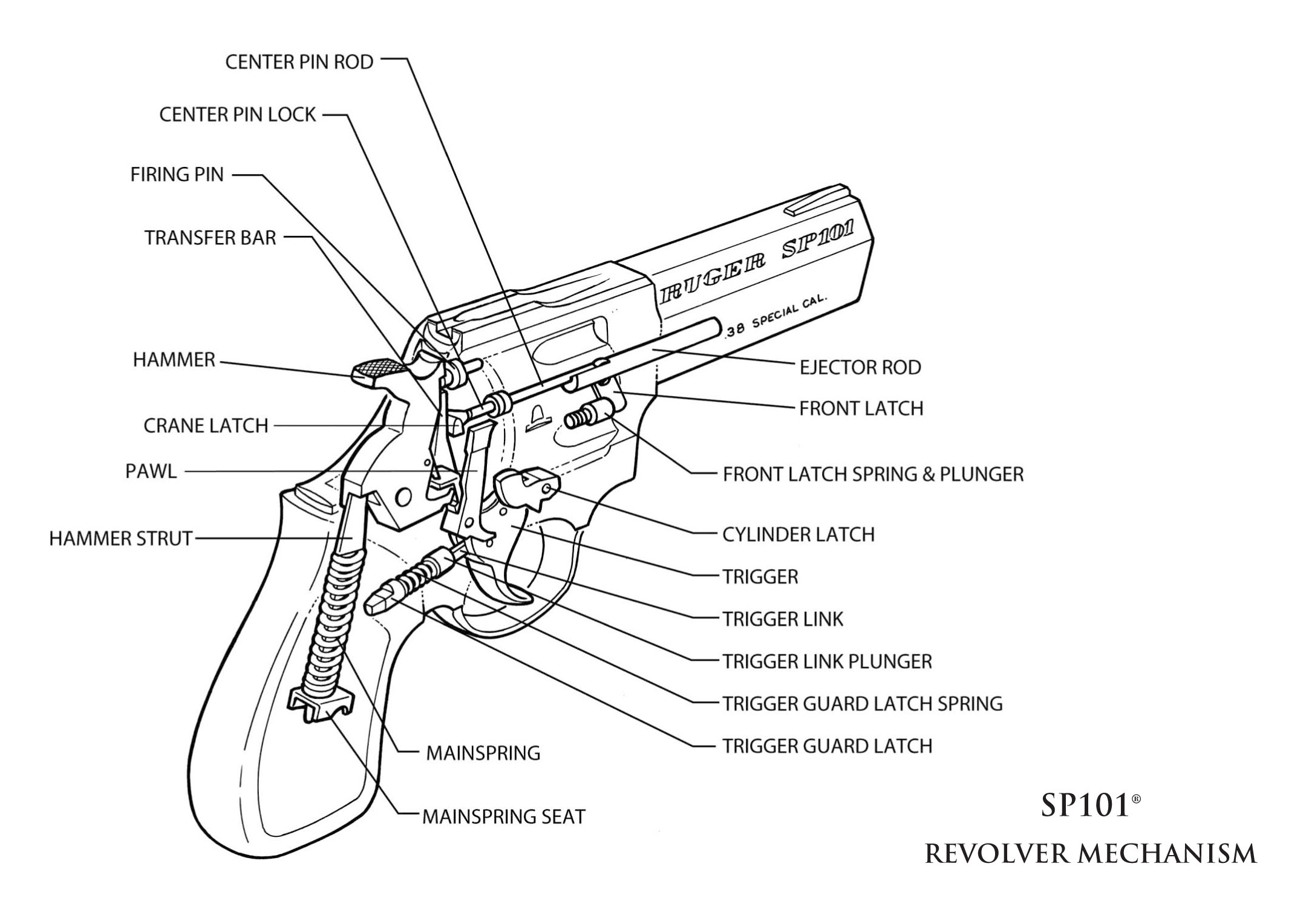

Key No. - Part Name
*1 - Hammer Assembly - Includes Key Nos. 1a - 1e
1a - Hammer Shim, 2 Req’d
1b - Blocker Spring
1c - Blocker Pin
1d - Retention Clip
1e - Retention “C” Clip
2 - Hammer Pivot Pin Assembly
3 - Hammer Dog, Crane, & Front Latch Spring
4 - Pawl Plunger
*5 - Hammer Dog
6 - Hammer Dog Pivot Pin
7 - Hammer Strut
8 - Hammer Strut Mainspring
9 - Hammer Strut Mainspring Seat
*10 - Trigger Assembly
11 - Trigger Plunger
12 - Pawl Plunger Spring
*13 - Pawl
14 - Trigger Link
15 - Trigger Link Pin
16 - Transfer Bar
*17 - Trigger Guard
*18 - Crane Pivot Lock
*19 - Crane Pivot Lock Spring
20 - Cylinder Latch Pivot
21 - Pawl Spring Plunger
22 - Trigger Pivot Pin
23 - Trigger Link Plunger
24 - Trigger Guard Latch Spring
25 - Trigger Guard Latch
26 - Cylinder Latch
*27 - Ejector Retainer
28 - Ejector Spring
29 - Center Pin Spring
30 - Center Pin Rod
31 - Center Pin Lock
*32 - Cylinder
*33 - Ejector
*34 - Crane & Crane Pivot Assembly
35 - Front Latch
36 - Front Latch Pivot Pin
37 - Front Latch Pivot Lock Spring
38 - Front Latch Pivot Lock
39 - Front Latch Spring Plunger
40 - Ejector Rod
41 - Firing Pin Plug
*42 - Firing Pin Spring
*43 - Firing Pin
*44 - Crane Latch
*45 - Crane Latch Pivot
*46 - Barrel
47 - Front Sight
48 - Front Sight Cross Pin
49 - Rear Sight Blade
50 - Rear Sight Windage Spring
51 - Rear Sight Windage Screw
52 - Grip Panel Locator
53 - Rubber Pistol Grip
54 - Grip Inserts
55 - Grip Panel Screw
* PARTS SO MARKED MUST BE FACTORY FIT

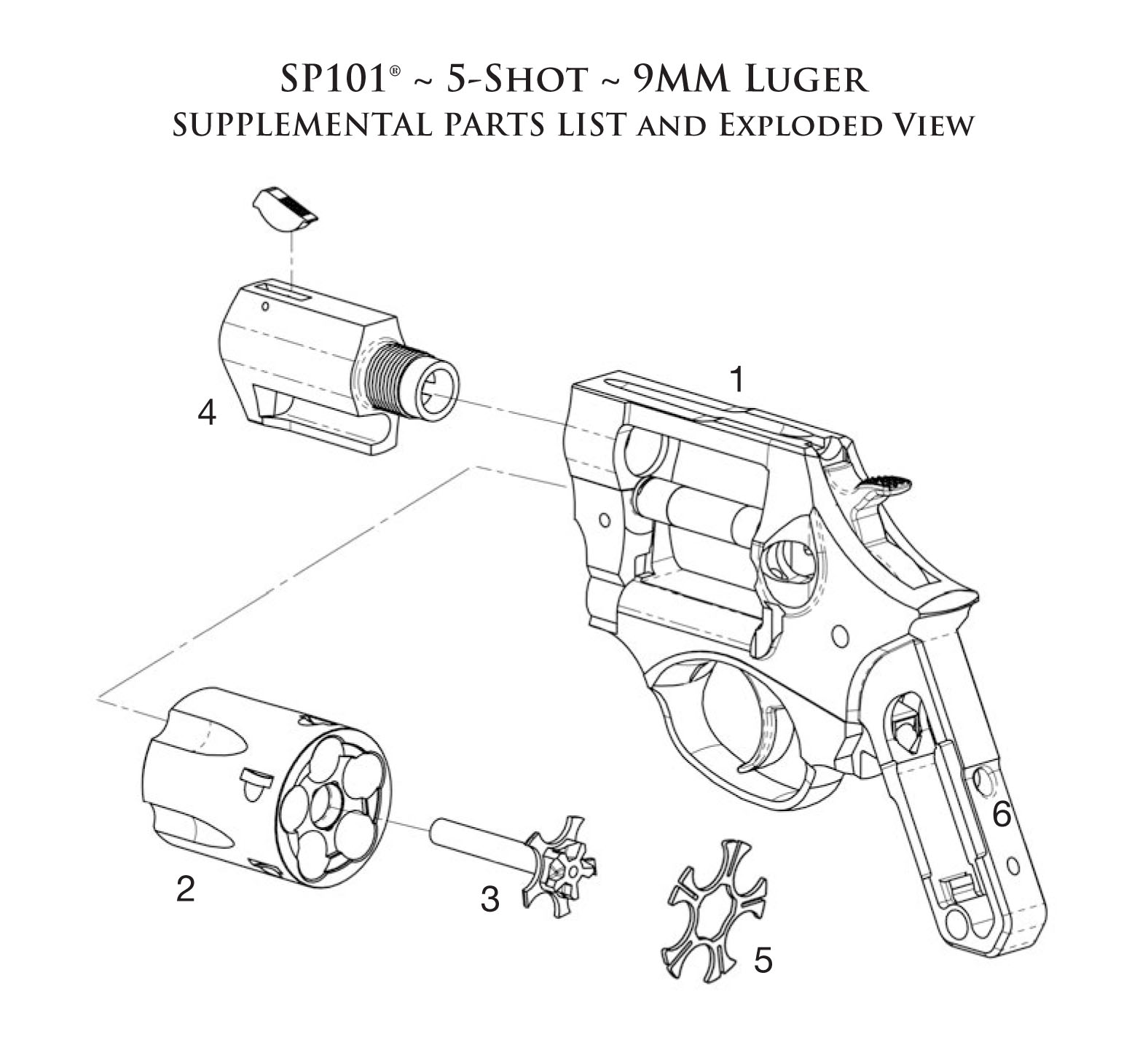

Key - Part Name
†1 - Frame
*2 - Cylinder, 9mm
3 - Ejector
*4 - Barrel
5 - Moon Clip
† The frame of the revolver is defined as a ‘firearm’ by Federal Law and is not offered for sale as a component part.
* Parts so marked must be factory fit.

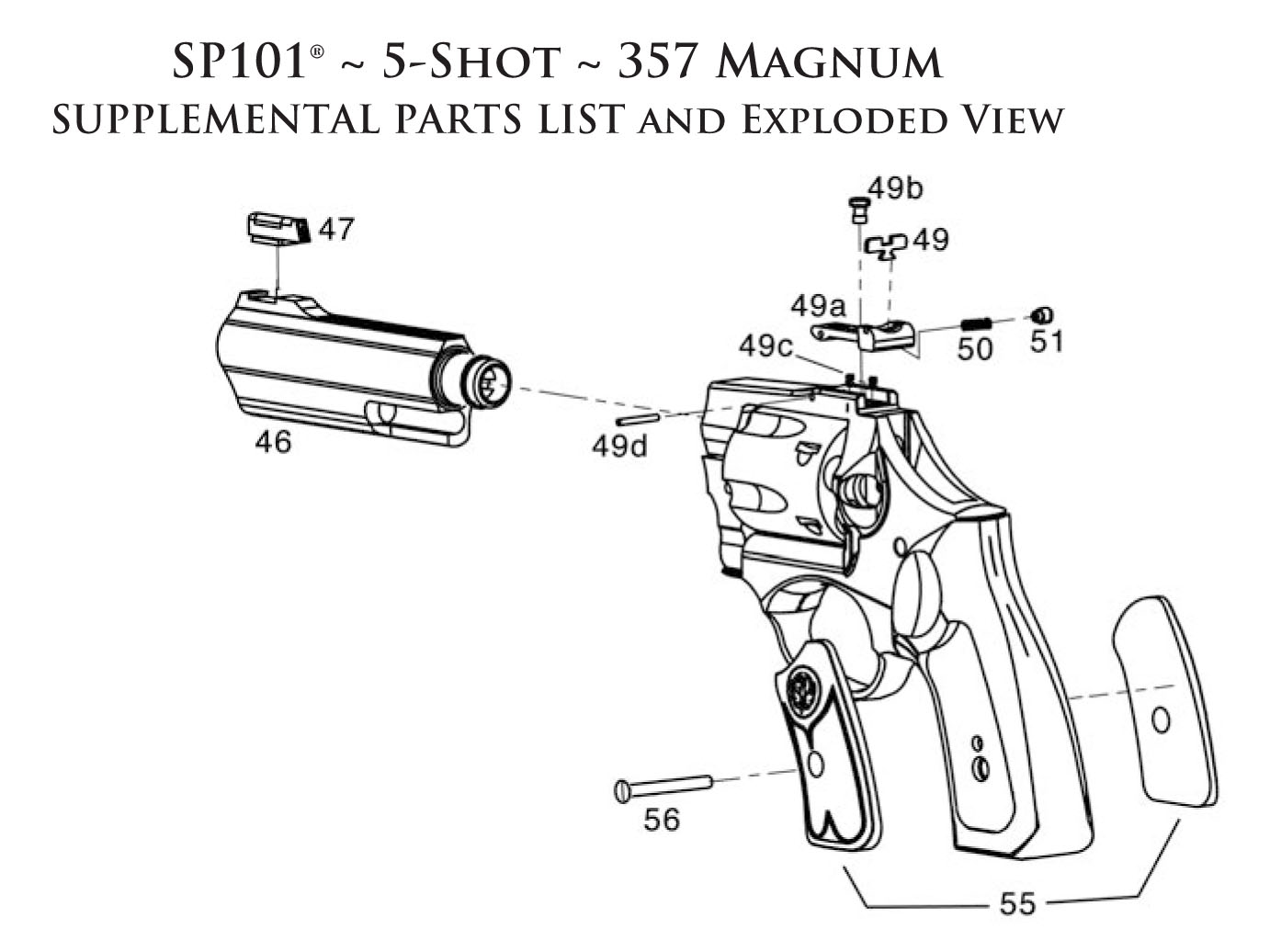

Key - Part Name
*46 - Barrel
47 - Front Sight, HiViz®
49 - Rear Sight Blade
49a - Rear Sight Base
49b - Rear Sight Elevation Screw
49c - Rear Sight Elevation Spring, 2 Req’d
49d - Rear Sight Cross Pin
50 - Rear Sight Windage Spring
51 - Rear Sight Windage Screw
55 - Grip Inserts
56 - Grip Panel Screw
* PARTS SO MARKED MUST BE FACTORY FIT

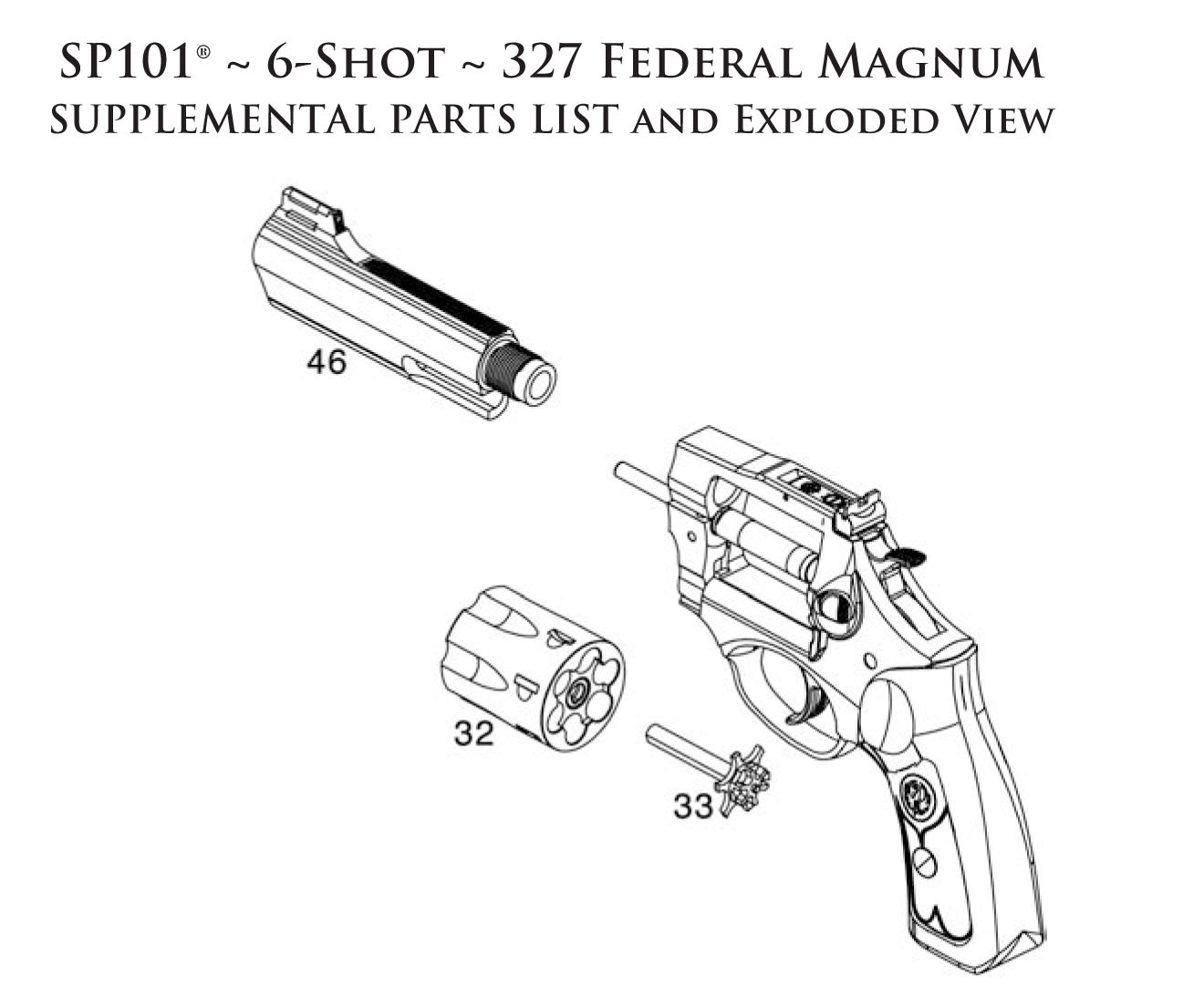

Key - Part Name
*32 - Cylinder, 6-shot, 327 Fed Mag
*33 - Ejector
*46 - Barrel, 327 Fed Mag
* PARTS SO MARKED MUST BE FACTORY FIT

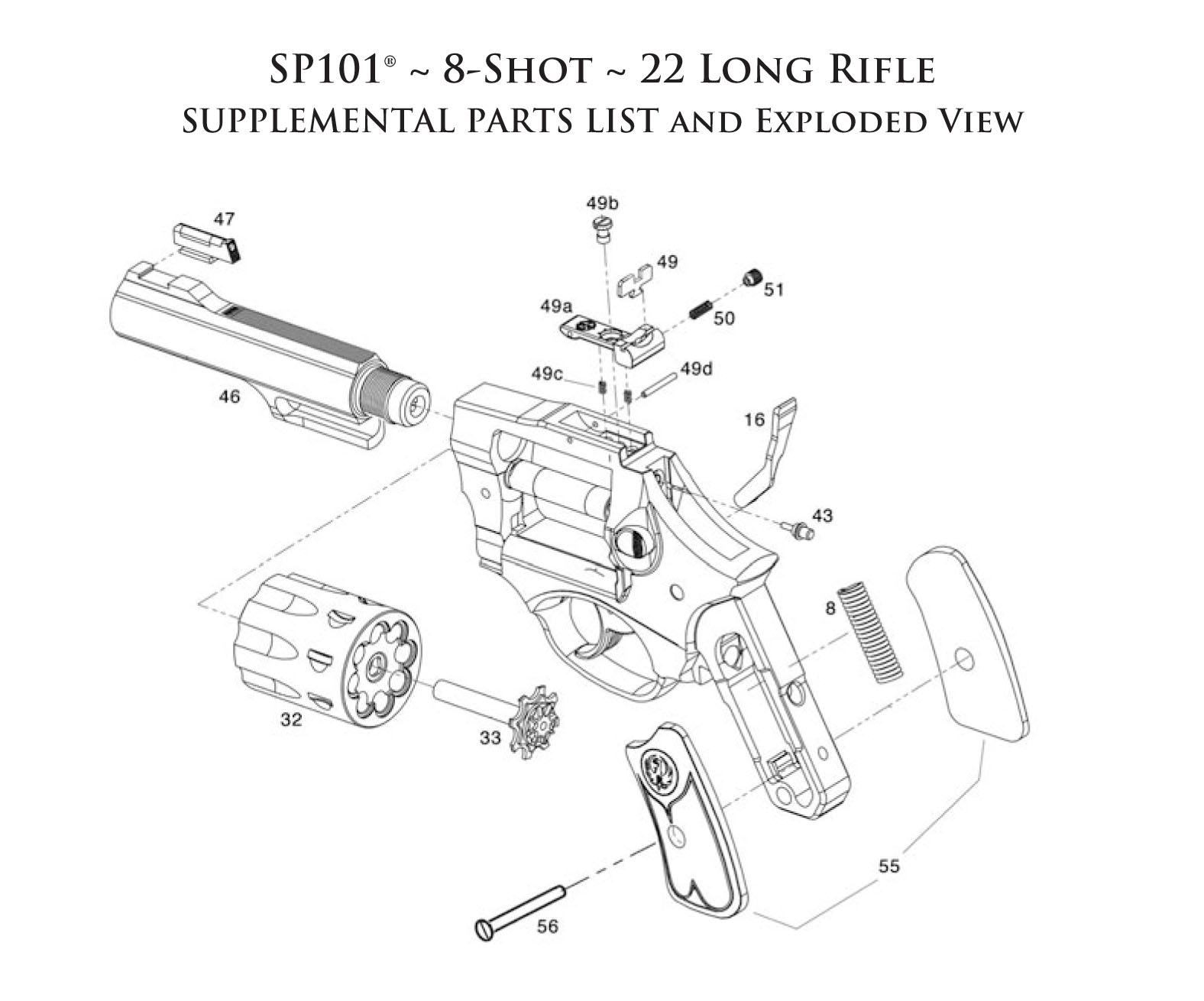

Key No. - Part Name
8 - Hammer Strut Mainspring
16 - Transfer Bar
*32 - Cylinder, 8-shot 22 LR
*33 - Ejector
*43 - Firing Pin
*46 - Barrel, 22 LR
47 - Front Sight, Hi-Viz®
49 - Rear Sight Blade
49a - Rear Sight Base
49b - Rear Sight Elevation Screw
49c - Rear Sight Elevation Spring, 2 Req’d
49d - Rear Sight Cross Pin
50 - Rear Sight Windage Spring
51 - Rear Sight Windage Screw
55 - Grip Inserts
56 - Grip Panel Screw
* PARTS SO MARKED MUST BE FACTORY FIT
