Despiece RUGER SFAR
Key- Part Name
1 - Charging Handle

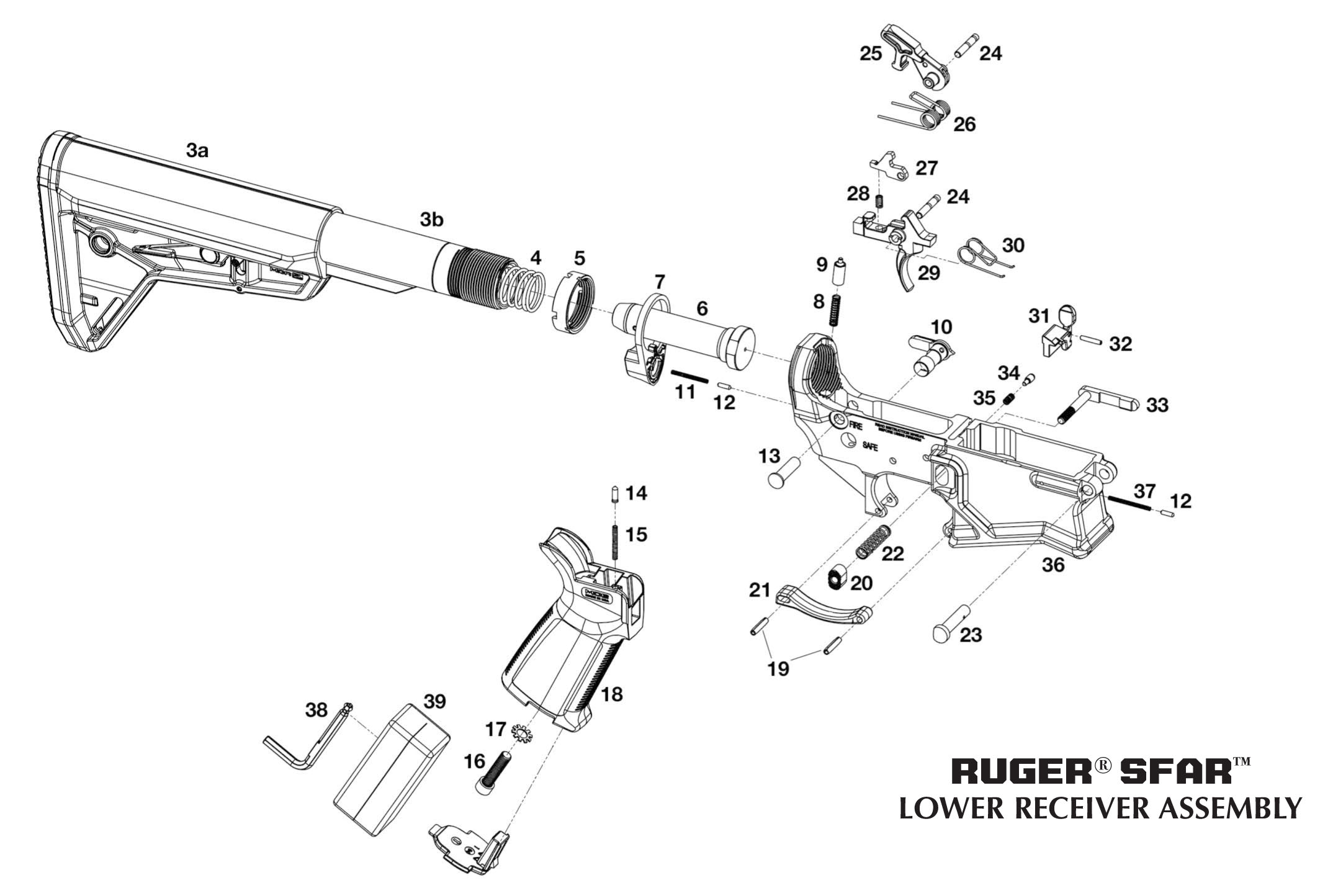

2 - Lower Receiver Assembly – Complete
3 - Buttstock Assembly
3a - Buttstock
3b - Receiver Extension
4 - Buffer Spring
5 - Receiver Extension Nut
6 - Buffer
7 - Receiver Endplate
8 - Buffer Retainer Spring
9 - Buffer Retainer Plunger
*10 - Selector Switch
11 - Takedown Detent Spring
12 - Takedown Detent, 2 Req’d
13 - Takedown Pin
14 - Selector Detent
15 - Selector Detent Spring
16 - Pistol Grip Screw
17 - Grip Screw Washer
18 - Pistol Grip
19 - Trigger Guard Roll Pin, 2 Req’d
20 - Magazine Catch Button
21 - Trigger Guard
22 - Magazine Catch Spring
23 - Pivot Pin
24 - Trigger Pin/ Hammer Pin, 2 Req’d
*25 - Hammer
26 - Hammer Spring
*27 - Disconnector
28 - Disconnector Spring
*29 - Trigger
30 - Trigger Spring
31 - Bolt Catch
32 - Bolt Catch Roll Pin
33 - Magazine Catch Assembly
34 - Bolt Catch Plunger
35 - Bolt Catch Plunger Spring
†36 - Lower Receiver
37 - Takedown Detent Spring
38 - Regulator Adjustment Wrench
39 - Wrench Storage Insert

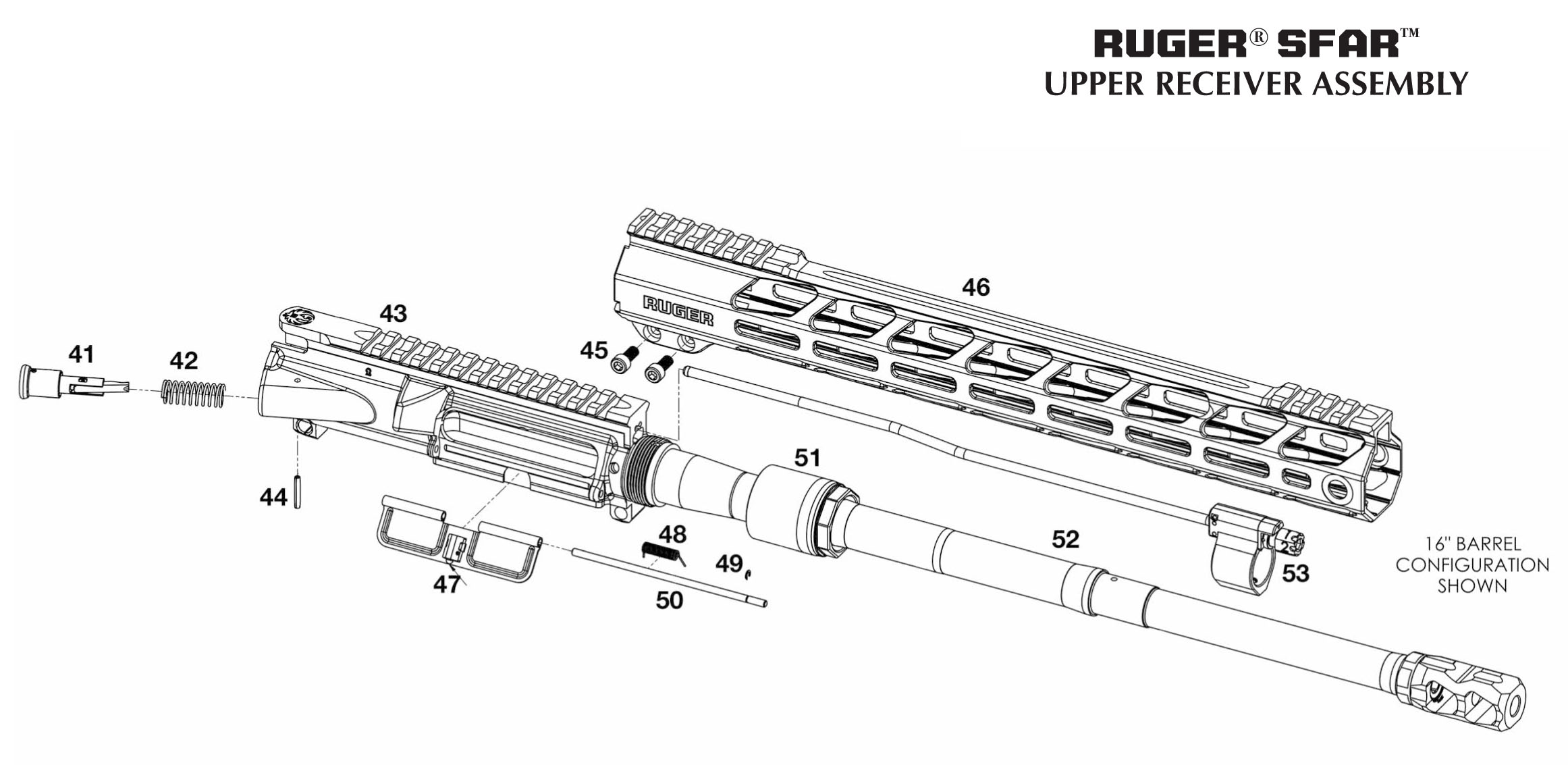

40 - Upper Receiver Assembly – Complete
41 - Forward Assist Assembly
42 - Forward Assist Spring
43 - Upper Receiver
44 - Forward Assist Roll Pin
45 - Handguard Screw, 2 Req’d
46 - Handguard
47 - Ejection Port Cover
48 - Ejection Port Cover Spring
49 - Ejection Port Cover Retaining Clip
50 - Ejection Port Cover Rod
51 - Barrel Nut
*52 - Barrel Assembly

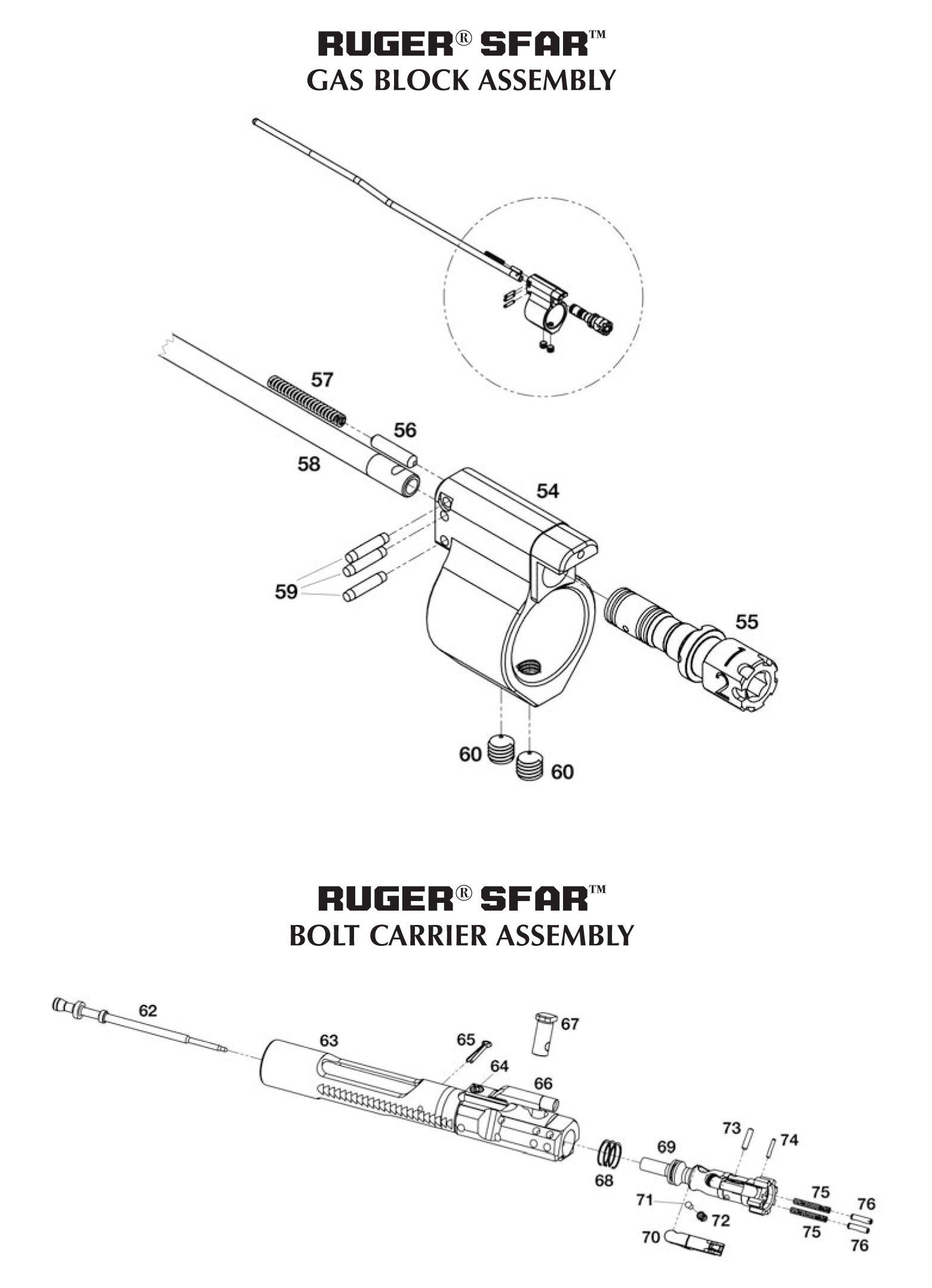

53 - Adjustable Gas Block Assembly – Complete
54 - Gas Block
55 - Regulator
56 - Detent
57 - Detent Spring
58 - Gas Tube
59 - Gas Block Pin
60 - Gas Block Set Screw, 2 Req’d
61 - Bolt Carrier Assembly – Complete
62 - Firing Pin
63 - Bolt Carrier
64 - Gas Key Screw
65 - Cotter Pin
66 - Gas Key
67 - Cam Pin
68 - Gas Ring, 3 Req’d
*69 - Bolt
70 - Extractor
71 - Extractor Buffer Spring
72 - Extractor Spring
73 - Extractor Pin
74 - Ejector Pin
75 - Ejector Sprin, 2 Req’d
76 - Ejector
77 - Muzzle Brake
* Parts so marked must be factory fit.
† The receiver is a serial-numbered part and is not offered for sale.
