Despiece RUGER Precision Rimfire
Key - Part Name

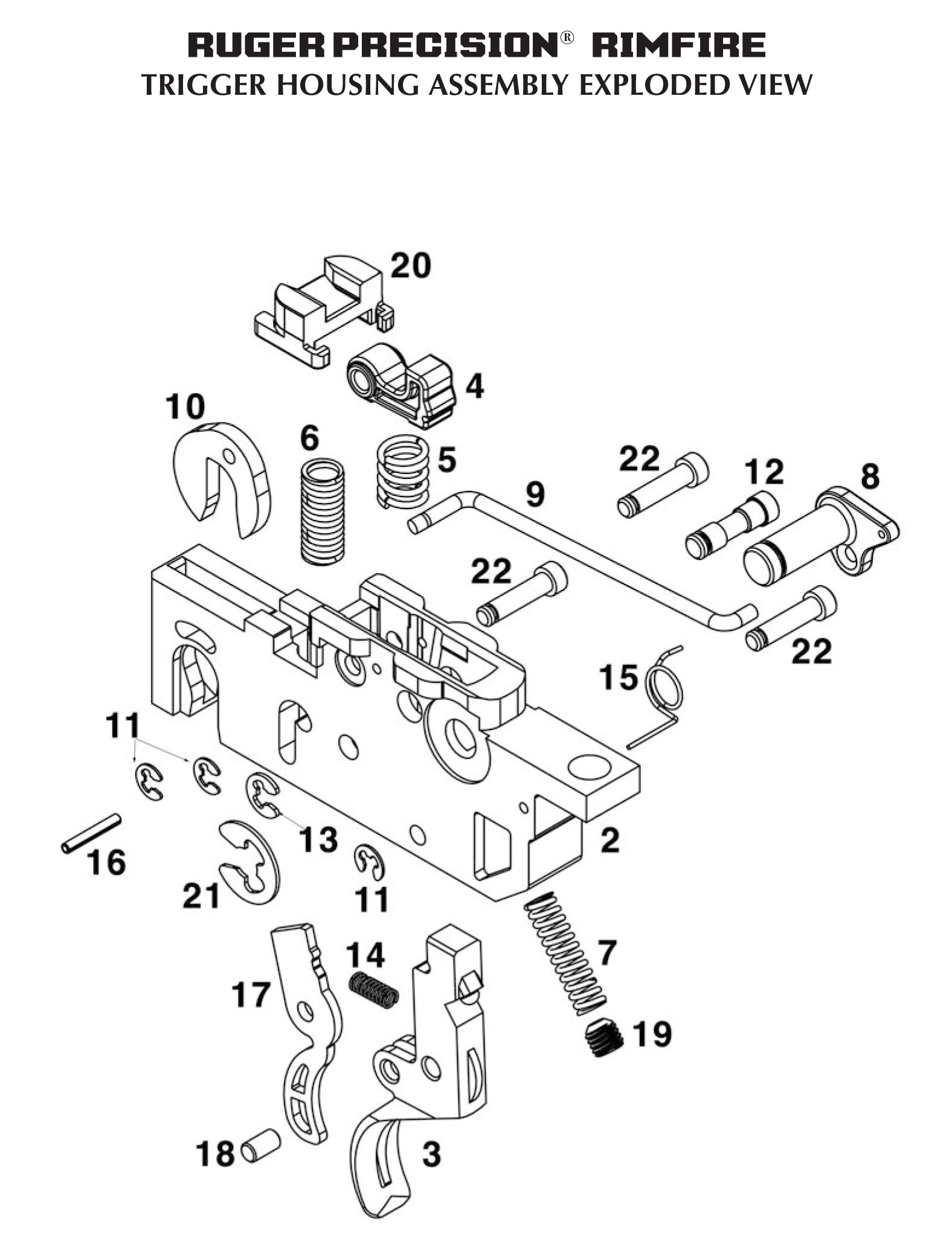

*1 -Trigger Housing Assembly – Complete Includes Key Nos. 2 - 22 (See Exploded View p. 47)
*2 - Trigger Housing
*3 - Trigger
*4 - Sear
*5 - Sear Spring
6 - Cocking Piece Guide Spring
7 - Trigger Spring
*8 - Safety Shaft
*9 - Safety Link
10 -Safety Connector
11 - E-Clip, Trigger & Sear Pin, 3 Req’d
*12 - Trigger Block Pin
13 - E-Clip
14 - Trigger Release Spring
*15 - Safety Spring
16 - Sear Stop Pin
*17 - Trigger Release
18 - Trigger Sear Pin
19 - Trigger Adjustment Screw
20 - Cocking Piece Guide
21 - E-Clip, Safety Shaft
22 -Trigger Sear Pin, 3 Req’d

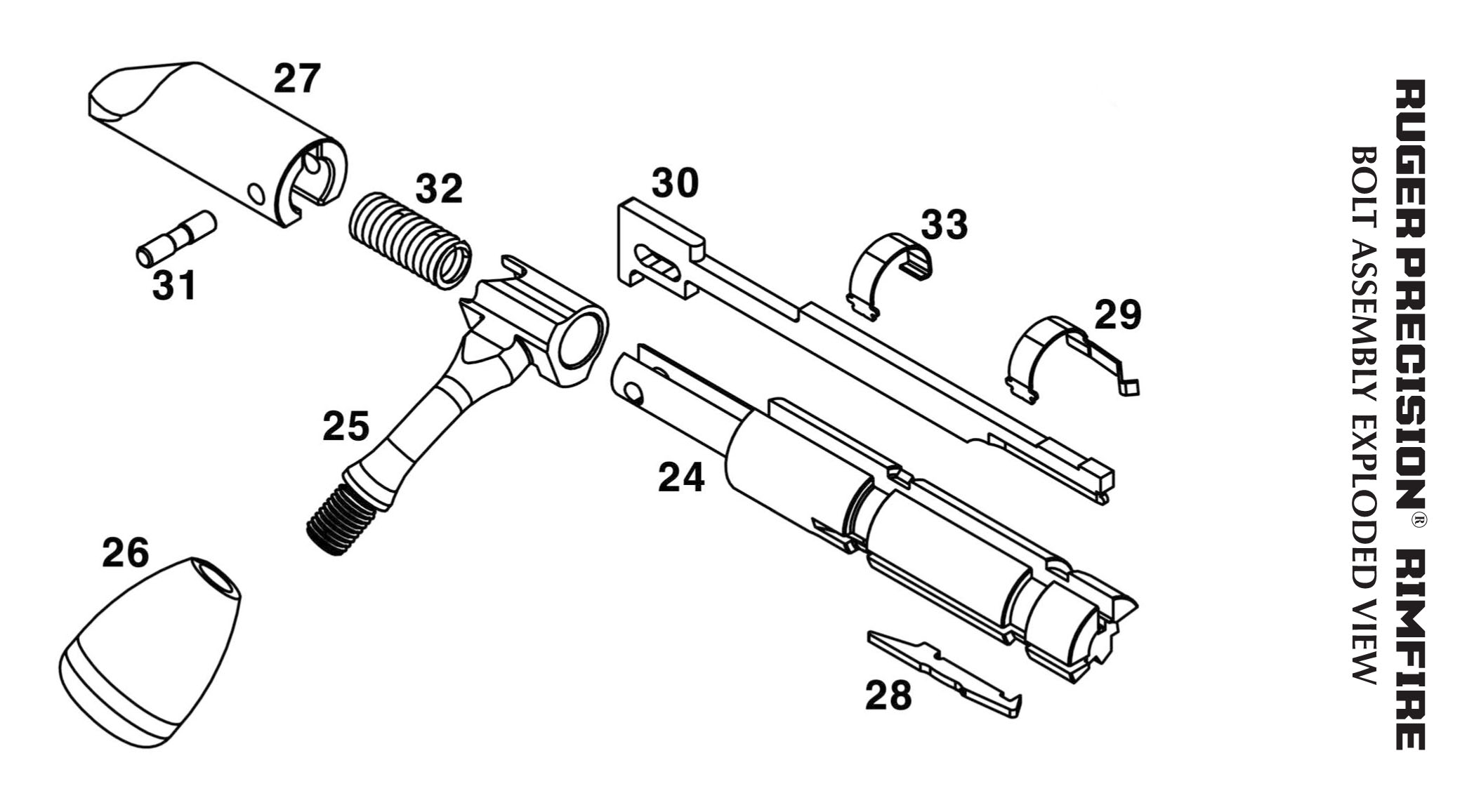

*23 - Bolt Assembly – Complete - Includes Key Nos. 24 - 33 (See Exploded View p. 48)
*24 - Bolt, Front
*25 - Threaded Bolt Handle
26 - Bolt Handle Knob
27 - Bolt, Rear
28 - Extractor
29 - Cartridge Positioner Spring
30 - Firing Pin
31 - Rear Bolt Retaining Pin
32 - Firing Pin Spring
33 - Bolt Stop Spring Clip

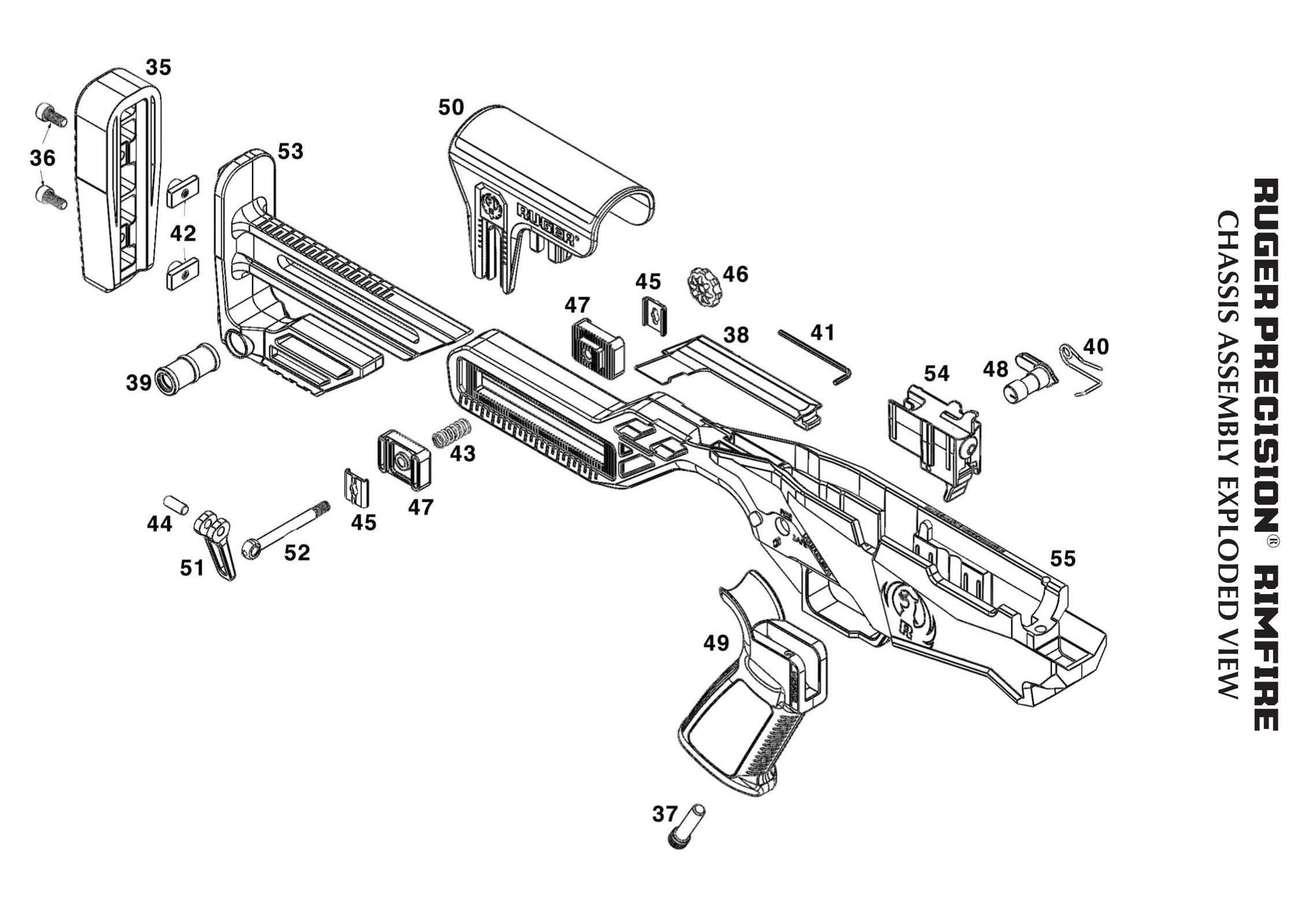

34 - Chassis Assembly – Complete - Includes Key Nos. 35 - 55 (See Exploded View p. 49)
35 - Butt Pad Assembly
36 - Butt Pad Screws, 2 Req’d
37 - Pistol Grip Screw
38 -Chassis Coring Cover
39 - Chassis Insert
40 - Safety Selector Spring
41 - Allen Key
42 - Recoil Pad Fastener, 2 Req’d
43 -Stock Cam Spring
44 - Cam Cross Pin
45 - Stock Detent Washer, 2 Req’d
46 - Cam Nut
47 - Clamping Piece, 2 Req’d
48 - Safety Selector Switch
49 - Pistol Grip
50 - Cheek Rest
51 - Cam Lever
52 - Cam Rod, Long
53 - Butt Pad Base
54 - Magazine Latch Assembly
55 - Chassis

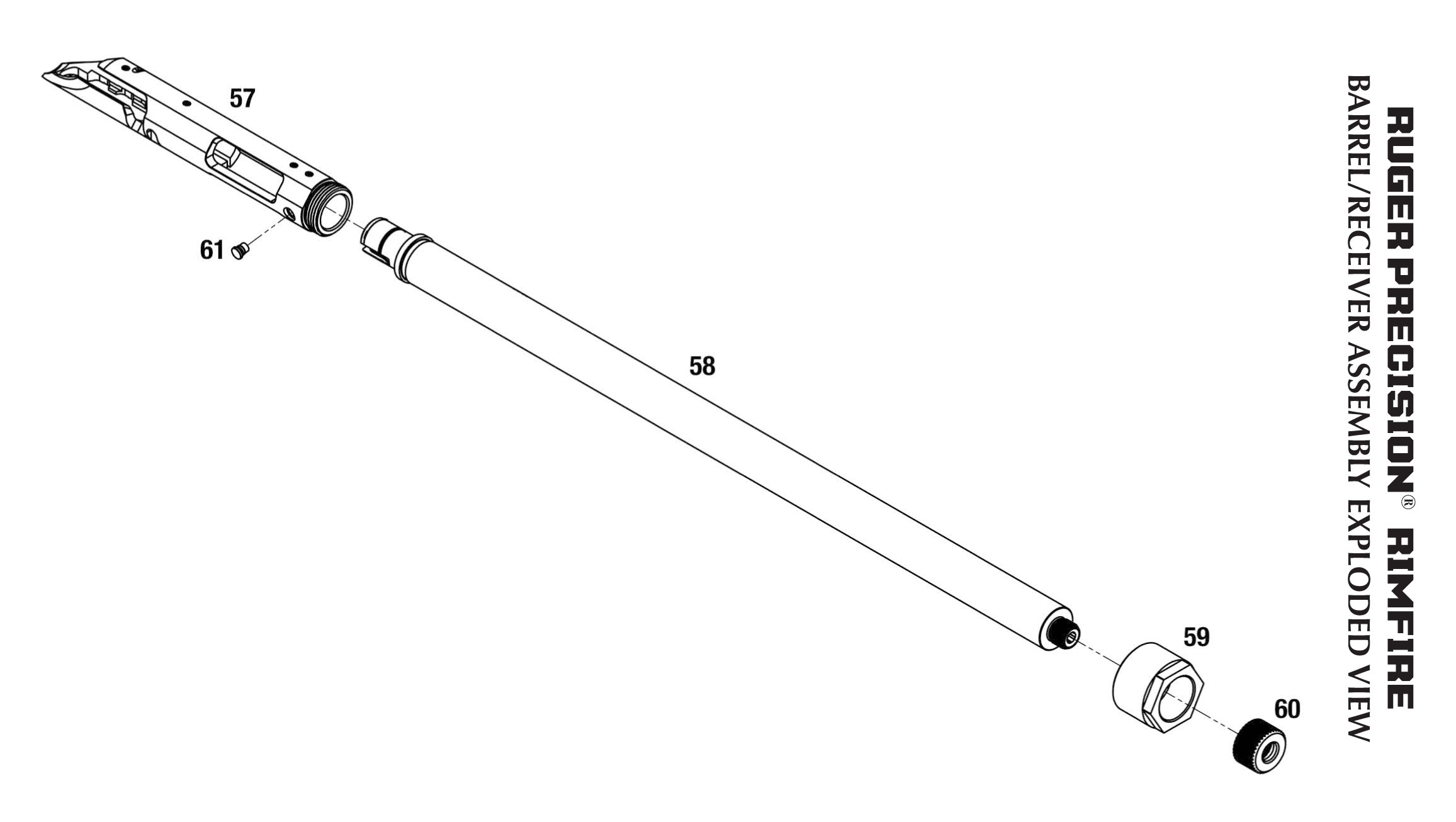

*56 - Barrel/Receiver Assembly – Complete - Includes Key Nos. 57 - 61 (See Exploded View p. 50)
†57 - Receiver
*58 - Barrel
59 - Barrel Nut
60 - Barrel Cap
61 - Barrel Pin
62 - Magazine
63 -Bolt Stop Spring
64 - Bolt Stop Spring Pin
65 -Bolt Stop
66 - Scope Rail
67 - Handguard
68 - Rear Bedding Screw
69 -Front Bedding Screw
70 -Scope Base Screws, 4 Req’d
71 - Handguard Screw, 2 Req’d
* PARTS SO MARKED MUST BE FACTORY FIT.
† The receiver is a serial-numbered part and is not offered for sale.
