Despiece RUGER PRECISION RIFLE
Key- Part Name

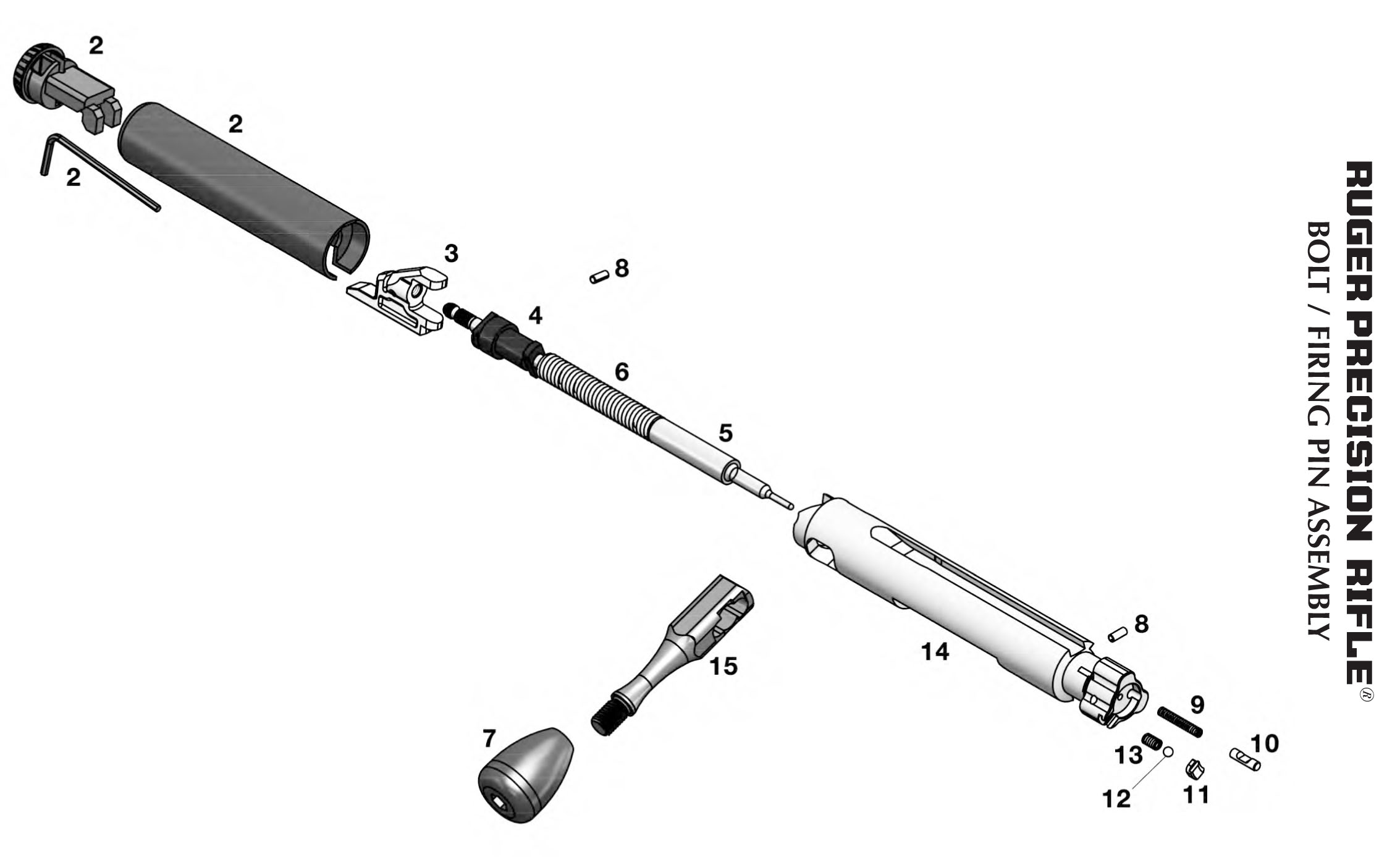

*1 - Bolt / Firing Pin Assembly – Complete
2- Bolt Shroud Assembly, Short
w/Cap & 5/64” Hex Wrench
3 - Firing Pin Back
4 - Firing Pin Spring Stop
5 - Firing Pin, Short Action
6 - Firing Pin Spring
7 - Bolt Knob
8 - Ejector/Firing Pin Back Pin
9 - Ejector Spring
10 - Ejector Plunger
11 - Extractor
12 - Extractor Ball
13 - Extractor Spring
*14 - Bolt Body, Short Action
15 - Bolt Handle
†16 - Receiver
*17- Barrel Nut
*18 - Barrel

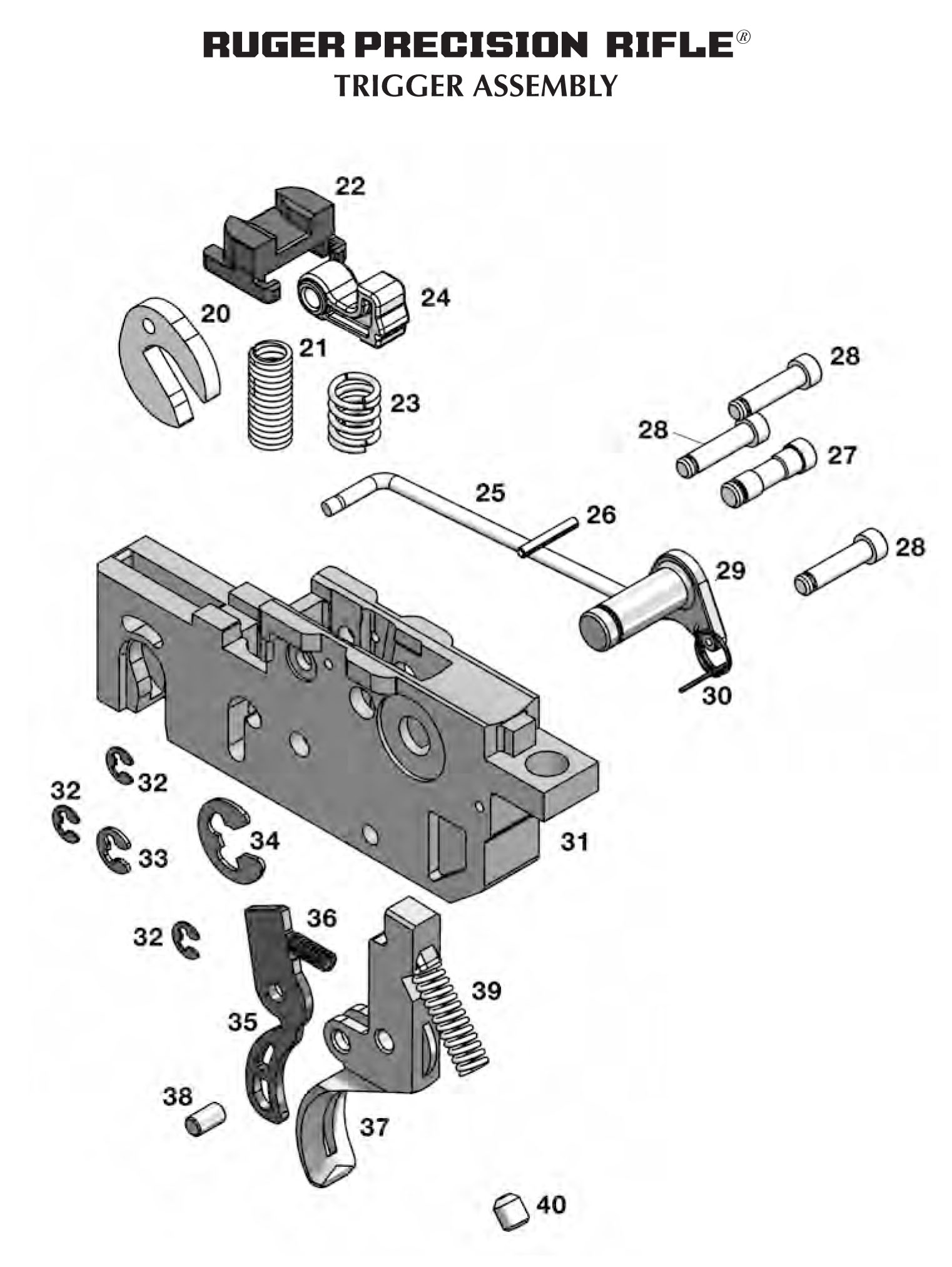

*19 - Trigger Assembly – Complete
20 - Safety Connector
21 - Cocking Piece Guide Spring
22 - Cocking Piece Guide
23 - Sear Spring
*24 - Sear
*25 - Safety Link
26 - Sear Stop Pin
*27 - Trigger block Pin
28 - Trigger-Sear Pin, 3 Req’d
*29 - Safety Shaft
*30 - Safety Spring
*31 - Trigger Housing
32 - Trigger-Sear Pin E-Clip, 3 Req’d
33 - Trigger Block Pin E-Clip
34 - Safety Shaft E-Clip
*35 - Trigger Release
36 - Trigger Release Spring
*37 - Trigger
38 - Trigger Release Pin
39 - Trigger Pull Adjustment Spring
40 - Trigger Adjustment Screw

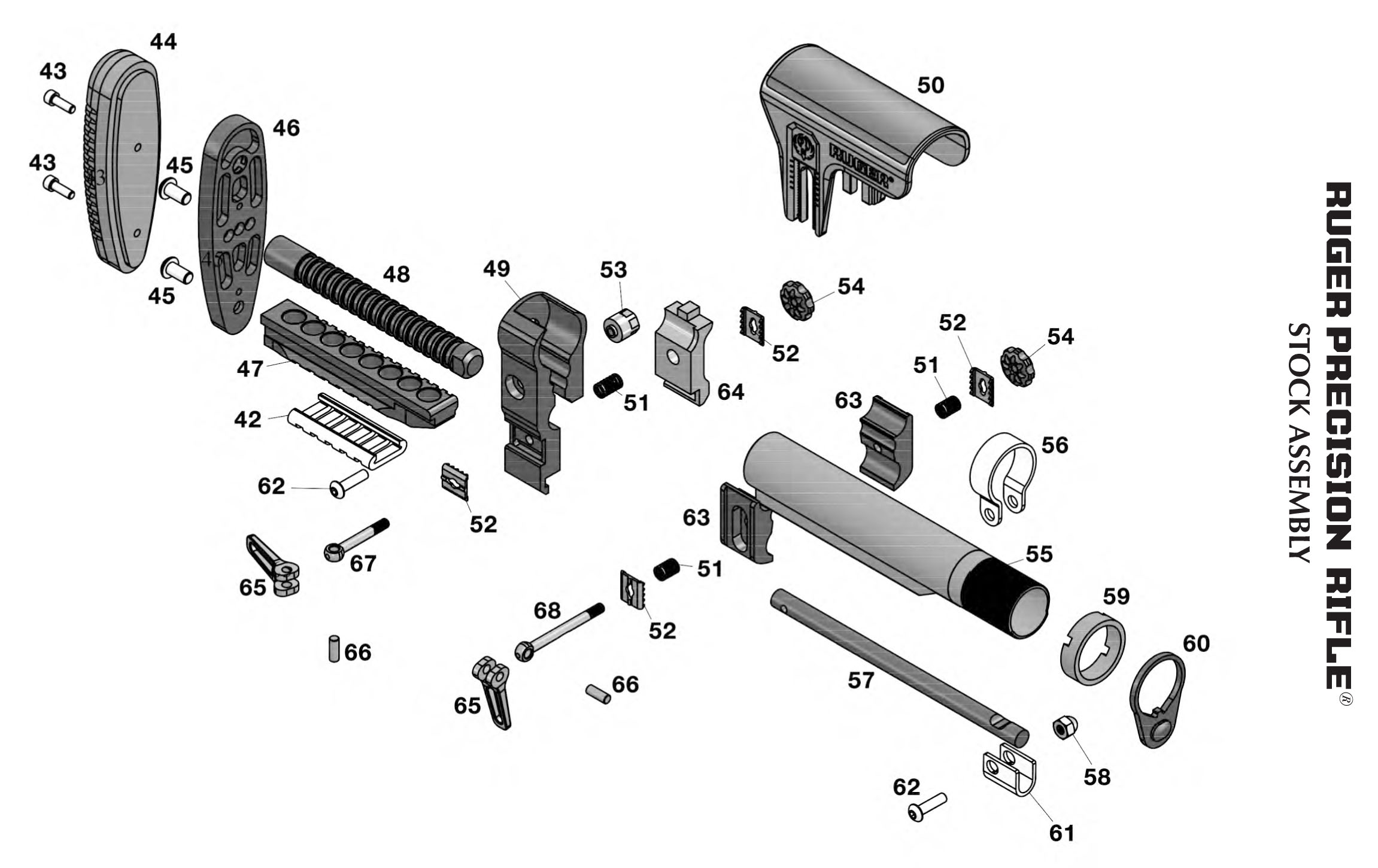

41 - Stock Assembly – Complete
42 - Rail Cover
43 - Butt Pad Screw, 2 Req’d
44 - Recoil Pad
45 - Recoil Pad Base Plate Screw, 2 Req’d
46 - Recoil Pad Base Plate
47 - Lower Picatinny Rail
48 - Adjustment Rod
49 - Rear Stock Frame
50 - Cheek Rest
51 - Stock Cam Spring, 3 Req’d
52 - Stock Detent Washer, 4 Req’d
53 - QD Swivel Cup
54 - Cam Nut, 2 Req’d
55 - Buffer Tube
56 - Stock Front Clamp
57 - Stock Connector Rod
58 - Acorn Nut
59 - Castle Nut
60 - End Plate
61 - Stock Front Clamp Bottom
62 - Stock Clamp Screw, 2 Req’d
63 - Cheek Clamp, 2 Req’d
64 - Stock Length Lock
65 - Cam Lever, 2 Req’d
66 - Cam Cross Pin, 2 Req’d
67 - Cam Rod Short
68 - Cam Rod Long
69 - Stock Mount Back
70 - Stock Pivot Latch
71 - Stock Pivot Latch Pin
72 - Latch Spring
73 - Stock Mount Bottom
74 - Stock Hinge Pin Washer, 2 Req’d
75 - Stock Hinge Pin
76 - Stock Mount Top
77 - Scope Mount Screw, 4 Req’d
78 - Stock Latch Detent Washer
79 - Stock Pivot Lock Button
80 - Bolt Stop Spring
81 - Bolt Stop
82 - Bolt Stop Pin
83 - Scope Base
84 - Hinge Mounting Screw, 2 Req’d
85 - Trigger Assembly/Lower Front Mounting Screw, 2 Req’d
86 - Barrel Nut Lock
87 - Muzzle Cap
88 - Short Lower, Right
89 - Short Lower, Left
90 - Safety Selector
91 - Safety Selector Spring
92 - Action Mounting Screw, 3 Req’d
93 - Lower Lever Pin
94 - Side Catch Spring
95 - Magazine Side Latch Pin
96 - Magazine Latch Lever Spring
97 - Magazine Latch Lever
98 - Magazine Latch Side Catch
99 - Lower Front Mount
100 - Grip Screw
101 - Grip Washer
102 - Pistol Grip
103 - Handguard Assembly – Complete
104 - Handguard
105 - Handguard Nut
106 - Handguard Bushing
107 - Handguard Screw, 6 Req’d
108 - Muzzle Brake (w/Lock Nut)Magazine (See p. 16)
* Parts so marked must be factory fit.
† The receiver is a serial-numbered part and is not offered for sale.
Key- Part Name

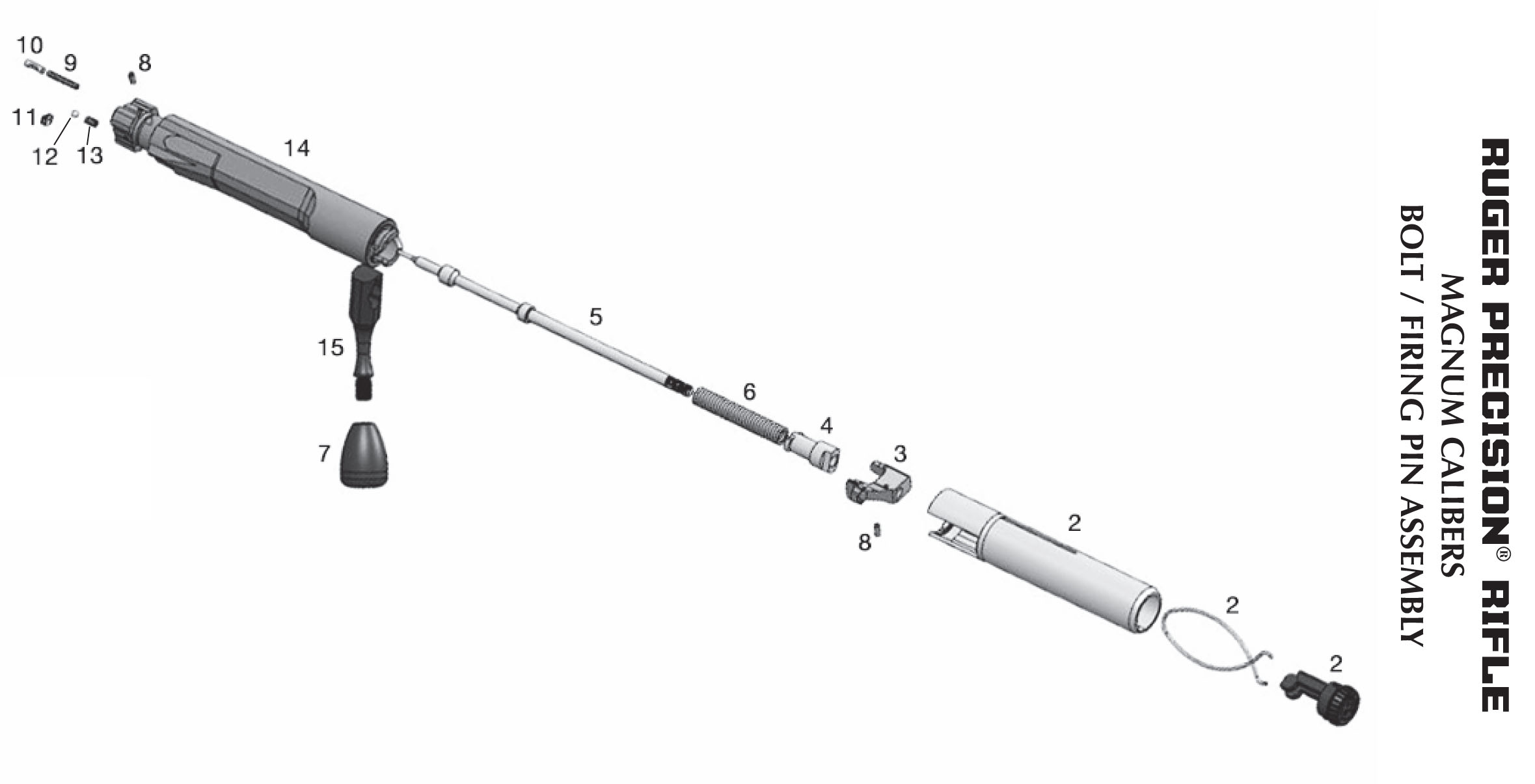

2 - RPR Magnum Bolt Sleeve (Includes O-Ring)
3 - RPR Magnum Cocking Piece
4 - RPR Magnum Firing Pin Spring Stop
5 - RPR Magnum Firing Pin
6 - Firing Pin Spring
7 - Bolt Knob
8 - Ejector/Firing Pin Block Pin
9 - Ejector Spring
10 - Ejector Plunger
11- Extractor
12 - Extractor Ball
13 - Extractor Spring
*14 - RPR Magnum Bolt Body
15 - Bolt Handle
†16 - RPR Magnum Receiver
*17 - RPR Magnum Barrel Nut
*18 - RPR Magnum Barrel
73 - RPR Magnum Stock Mount Bottom
76 - RPR Magnum Stock Mount Top
77 - Scope Mount Screw, 6 Req’d
83 - 30 MOA Scope Rail
84 - Hinge Mounting Screw, 2 Req’d
85 - Mounting Screw
86 - RPR Magnum Barrel Nut Lock
87 - RPR Magnum Jam Nut

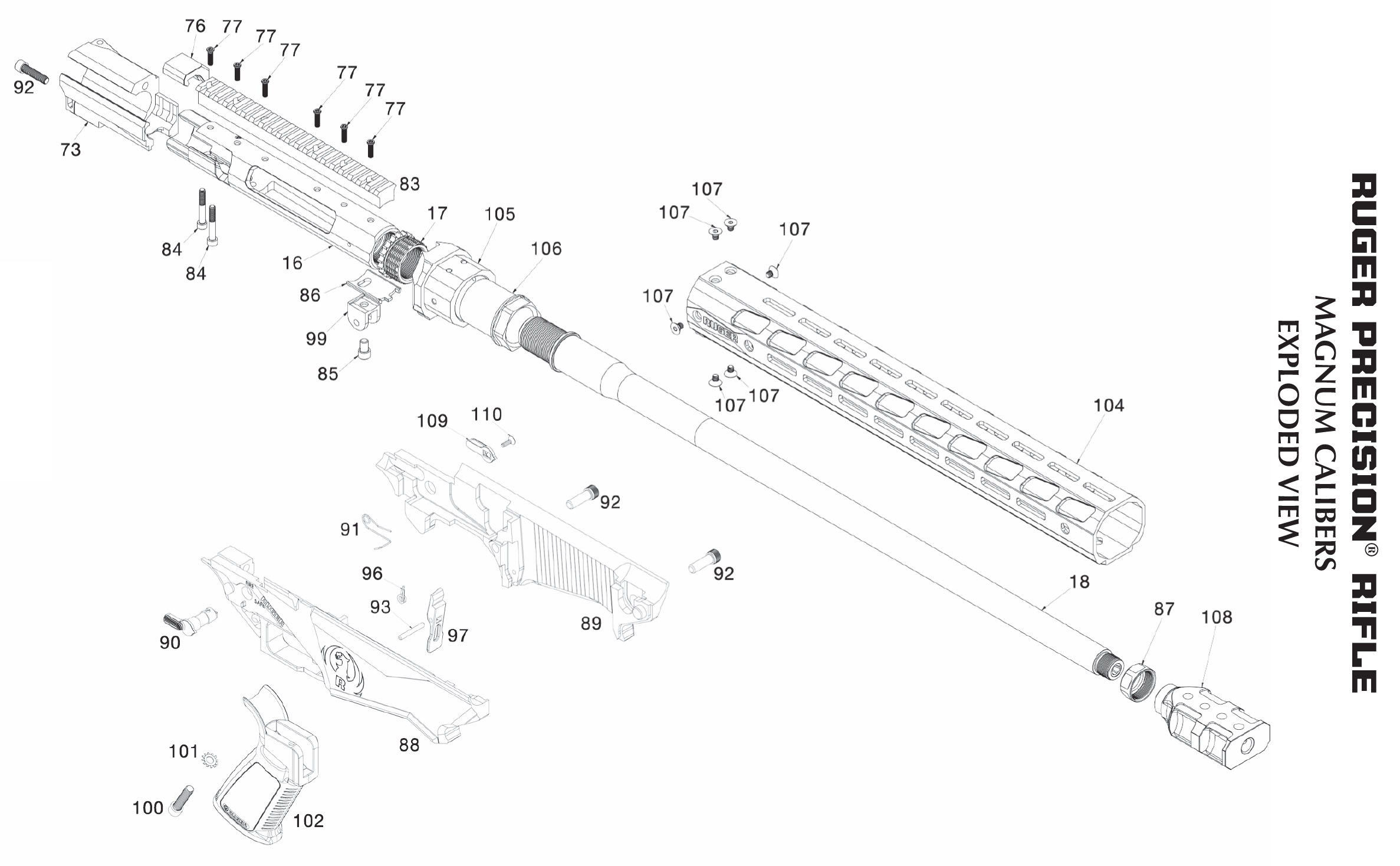

88 - RPR Magnum Magazine Well, Right
89 - RPR Magnum Magazine Well, Left
90 - RPR Magnum Ambidextrous Selector Switch
91 - RPR Magnum Selector Support Spring
92 - RPR Magnum Mounting Screw, 3 Req’d
93 - Lower Lever Pin
96 - Magazine Latch Lever Spring
97 - Magazine Latch Lever
99 - RPR Magnum Lower Front Mount
100 - Grip Screw
101- Grip Washer
102 - Pistol Grip
104 - RPR Magnum Handguard
105 - RPR Magnum Handguard Bushing
106 - RPR Magnum Handguard Nut
107 - RPR Magnum Handguard Screw, 6 Req’d
108 - RPR Magnum Muzzle Brake
109 - RPR Magnum Ambidextrous Selector Cap
110 - RPR Magnum 4-40 Ambidextrous Selector Screw
* Parts so marked must be factory fit.
† The receiver is a serial-numbered part and is not offered for sale.
