Despiece RUGER New Bearcat
Key No. - Part Name
*1 - Barrel
*†2 - Base Pin Assembly
3 - Base Pin Latch Body
4 - Base Pin Latch Nut
5 - Base Pin Latch Spring
*6 - Cylinder
*† - 7 Cylinder Latch Assembly
*† - 8 Cylinder Latch Spring
9 - Cylinder Latch Spring Plunger
10 - Ejector Housing
11 - Ejector Housing Screw
12 - Ejector Rod Assembly
13 - Ejector Rod Spring
14 - Firing Pin
15 - Firing Pin Rebound Spring
16 - Front Sight
17 - Loading Gate
18 - Loading Gate Plunger
19 - Loading Gate Plunger Spring
20 - Loading Gate Spring Retaining Screw
21 - Grip Panels, Complete with Screw
22 - Grip Panel Dowel
23 - Grip Panel Medallion, 2 Req’d
24 - Grip Panel Screw
*†25 - Hammer
26 - Hammer Pivot Pin
27 - Hammer Strut
28 - Mainspring
29 - Mainspring Seat
*†30 - Pawl
31 - Pawl Plunger
32 - Pawl Plunger Spring
33 - Pawl Spring Retaining Screw
34 - Recoil Plate
35 - Recoil Plate Cross Pin
*†36 - Transfer Bar
*†37 - Trigger
38 - Trigger Guard
39 - Trigger Guard Screw-A-Front
40 - Trigger Pivot Screw
*†41 - Trigger Spring
42 - Trigger Spring Plunger
**43 - Frame
* PARTS SO MARKED MUST BE FACTORY FIT.
† These parts are also available as a free factory safety retrofit for all older Bearcats manuactured between 1958 - 1973 with serial numbers below 93-00000, see p. 25.
** The frame is a serial-numbered part and is not offered for sale.

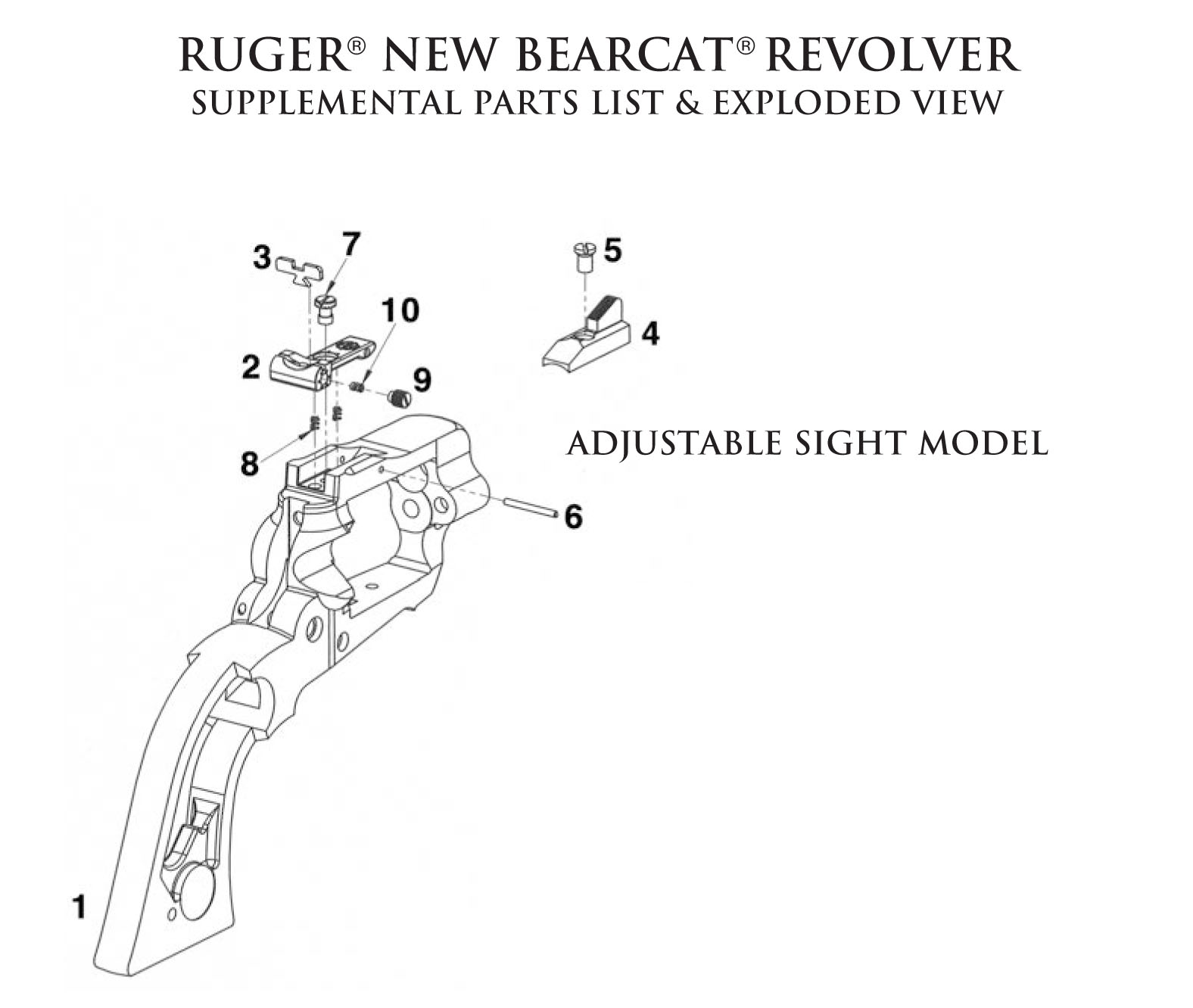

Key No. - Part Name
**1 - Frame
2 - Rear Sight Base
3 - Rear Sight Blade
4 - Front Sight
5 - Front Sight Screw
6 - Rear Sight Cross Pin
7 - Rear Sight Elevation Screw
8 - Rear Sight Elevation Spring, 2 Req’d
9 - Rear Sight Windage Adjustment Screw
10 - Rear Sight Windage Spring
* PARTS SO MARKED MUST BE FACTORY FIT.
† These parts are also available as a free factory safety retrofit for all older Bearcats manuactured between 1958 - 1973 with serial numbers below 93-00000, see p. 25.
** The frame is a serial-numbered part and is not offered for sale.
