Despiece RUGER MINI-14
Key No. - Part Name
*1 - Barrel
†2 - Receiver
3 - Front Sight
4 - Front Sight Cross Pin
*5 - Gas Block, Top & Bottom, 2 pieces
6 - Sling Swivel, Front
7 - Gas Block Screw, 4 Req’d
8 - Gas Pipe
9 - Gas Port Bushing
10 - Slide Assembly
Bolt Assembly Includes Key Nos. 11 - 15
11 - Extractor
*12 - Firing Pin
*13 - Bolt
14 - Extractor Plunger
15 - Extractor Spring
16 - Buffer Cross Pin
17 - Buffer Bushing
18 - Buffer Guide Rod
19 - Slide Spring
Rear Sight Assembly – Complete Includes Key Nos. 20 - 23
20 - Rear Sight Base
21 - Rear Sight Dovetail Slide
22 - Rear Sight Windage Screw, 2 Req’d
23 - Rear Sight Aperture
24 - Bolt Lock Plunger
25 - Bolt Lock Plunger Spring
26 - Ejector Bolt Lock
27 - Cover Plate
28 - Rear Sight Attachment Screw
29 - Trigger Bushing
*30 - Secondary Sear
*31 - Trigger
32 - Secondary Sear Spring
33 - Trigger Spring
34 - Safety Assembly
35 - Safety Spring Retainer Pin
36 - Trigger Housing
37 - Safety Detent Spring
38 - Trigger Pivot Pin
39 - Hammer Pivot Pin
*40 - Hammer
41 - Trigger Guard
Hammer Strut Assembly Includes Key Nos. 42 - 43
42 - Hammer Strut
43 - Hammer Spring
44 - Rear Magazine Latch
45 - Magazine Latch Spring
46 - Magazine Latch Pivot Pin
Stock Assembly Includes Key Nos. 47 - 49
47 - Stock
48 - Butt Pad
49 - Butt Pad Screws, 2 Req’d
50 - Stock Reinforcement Lock Washer, 2 Req’d
51 - Stock Reinforcement Screws, 2 Req’d
52 - Stock Reinforcement
53 - Forearm Liner & Stock Cap Assembly
54 - Handguard Assembly
55 - Sling Swivel, Rear
56 - Magazine
57 - Scope Rings, Complete Assembly
* PARTS SO MARKED MUST BE FACTORY FIT

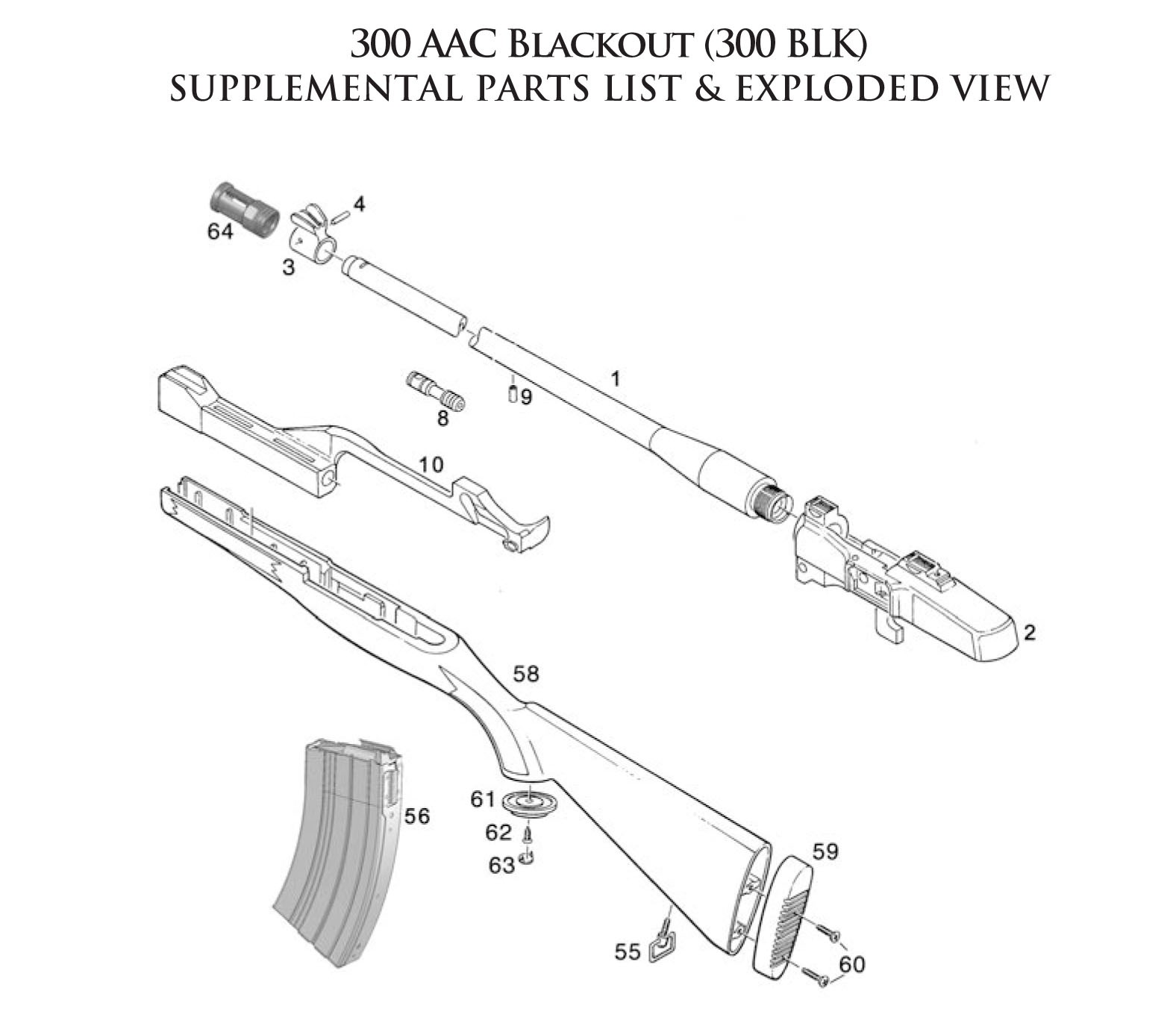

Key - Part Name
*1 - Barrel
†2 - Receiver
3 - Front Sight
4 - Front Sight Cross Pin
8 - Gas Pipe
9 - Gas Port Bushing
10 - Slide Assembly
47 - Stock Assembly, Plastic
55 --Sling Swivel, Rear
56 - Magazine, 20-rd

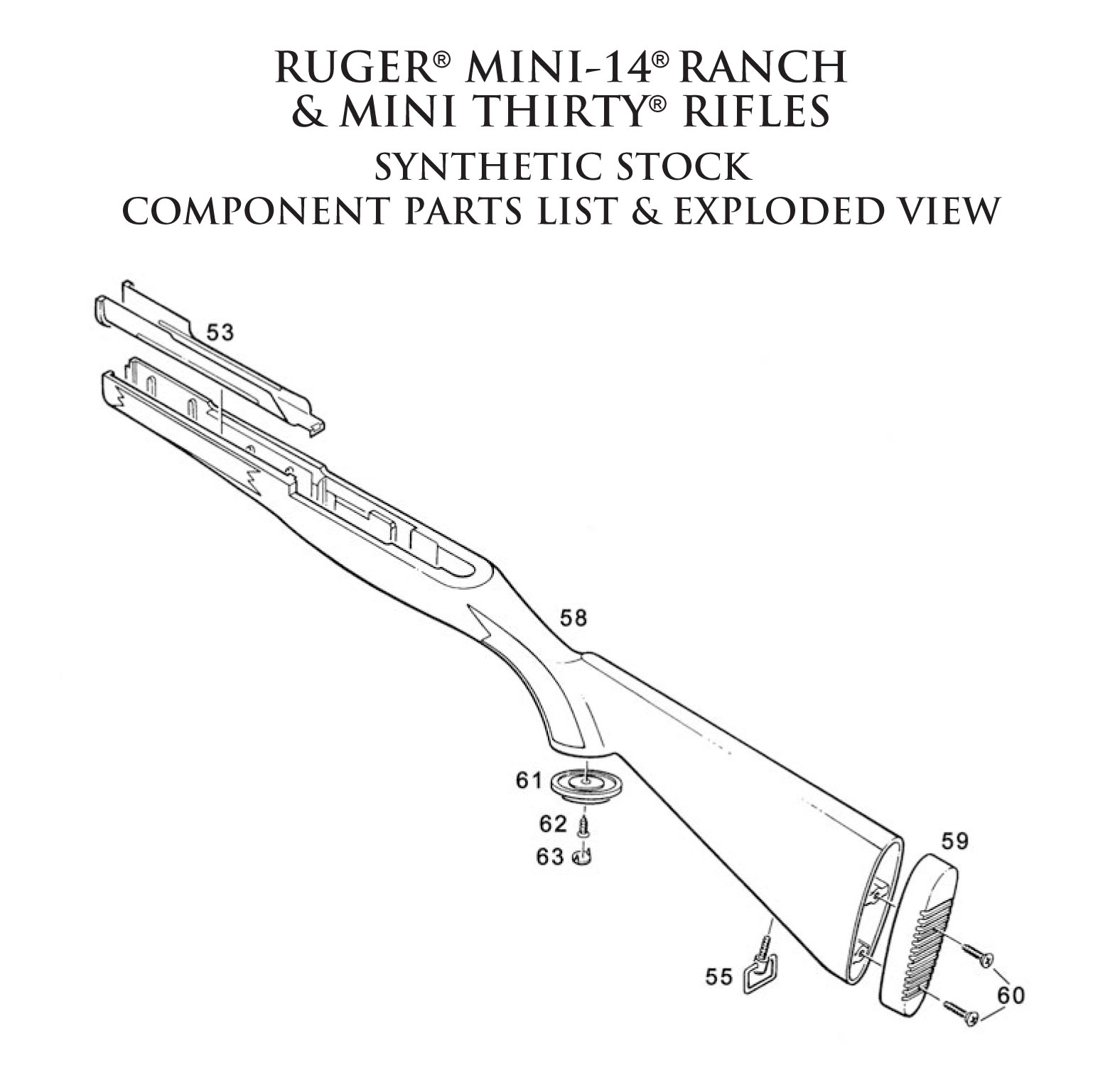

Component Parts for Plastic Stock Includes Key Nos. 59 - 63
59 - Butt Pad
60 - Butt Pad Screw, 2 Req’d
61 - Pistol Grip Cap
62 - Pistol Grip Cap Screw
63 - Pistol Grip Cap Medallion
64 - Flash Suppressor
* PARTS SO MARKED MUST BE FACTORY FIT
† The receiver is a serial numbered component and is not sold separately.

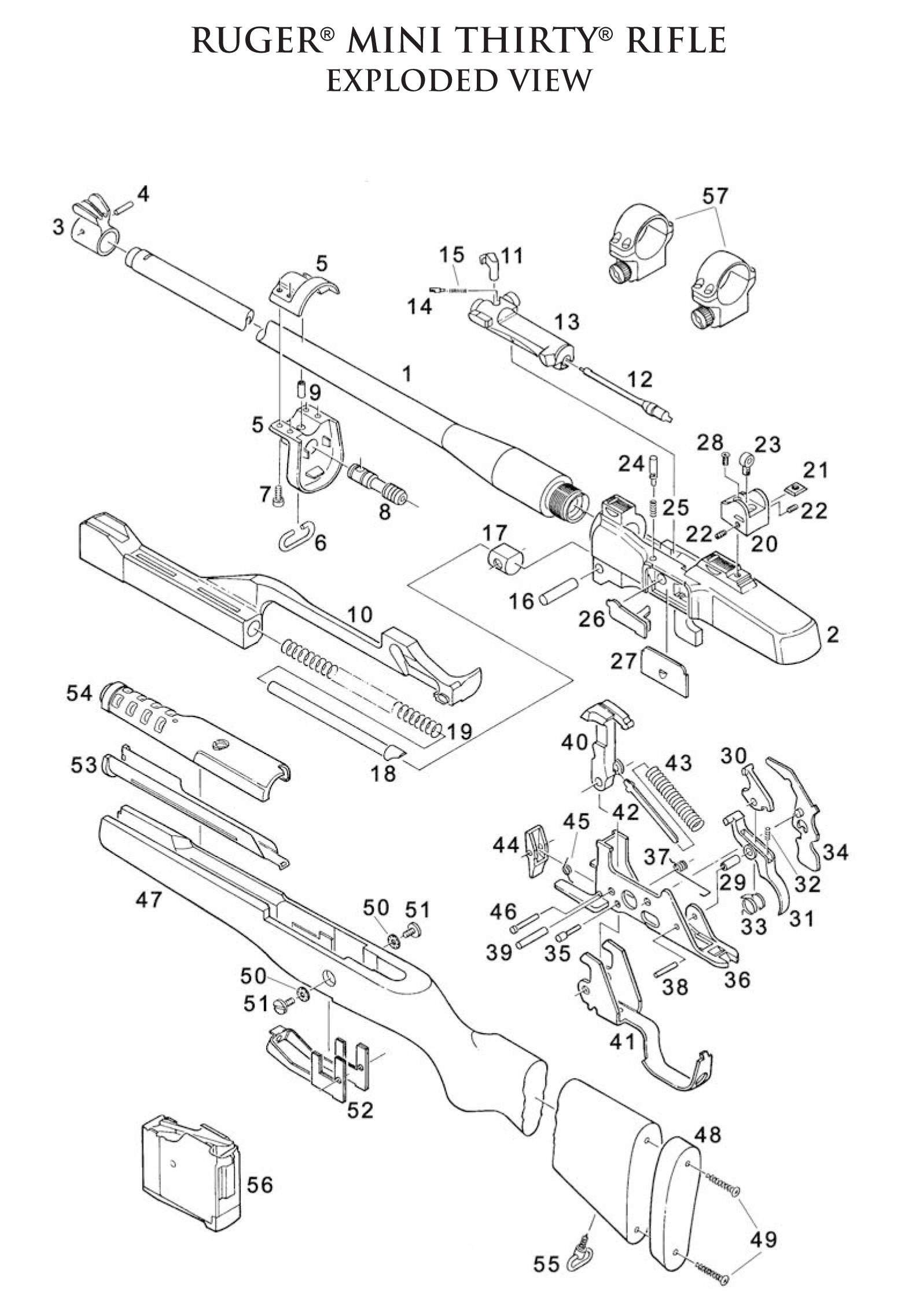

Key No. - Part Name
*1 - Barrel
†2 - Receiver
3 - Front Sight
4 - Front Sight Cross Pin
*5 - Gas Block, Top & Bottom, 2 pieces
6 - Sling Swivel, Front
7 - Gas Block Screw, 4 Req’d
8 - Gas Pipe
9 - Gas Port Bushing
10 - Slide Assembly
Bolt Assembly Includes Key Nos. 11 - 15
11 - Extractor
*12 - Firing Pin
*13 - Bolt
14 -Extractor Plunger
15 - Extractor Spring
16 - Buffer Cross Pin
17 - Buffer Bushing
18- Buffer Guide Rod
19 - Slide Spring
Rear Sight Assembly – Complete Includes Key Nos. 20 - 23
20 - Rear Sight Base
21 - Rear Sight Dovetail Slide
22 - Rear Sight Windage Screw, 2 Req’d
23 - Rear Sight Aperture
24 - Bolt Lock Plunger
25 - Bolt Lock Plunger Spring
26 - Ejector Bolt Lock
27 - Cover Plate
28 - Rear Sight Attachment Screw
29 - Trigger Bushing
*30 - Secondary Sear
*31 - Trigger
32 - Secondary Sear Spring
33 - Trigger Spring
34 - Safety Assembly
35 - Safety Spring Retainer Pin
36 - Trigger Housing
37 - Safety Detent Spring
38 - Trigger Pivot Pin
39 - Hammer Pivot Pin
*40 - Hammer
41 -Trigger Guard
Hammer Strut Assembly Includes Key Nos. 42 - 43
42 - Hammer Strut
43 - Hammer Spring
44 - Rear Magazine Latch
45 - Magazine Latch Spring
46 - Magazine Latch Pivot Pin
Stock Assembly Includes Key Nos. 47 - 49
47 - Stock
48 - Butt Pad
49 - Butt Pad Screws, 2 Req’d
50 - Stock Reinforcement Lock Washer, 2 Req’d
51 - Stock Reinforcement Screws, 2 Req’d
52 - Stock Reinforcement
53 - Forearm Liner & Stock Cap Assembly
54 - Handguard Assembly
55 - Sling Swivel, Rear
56 - Magazine
57 - Scope Rings, Complete Assembly
* PARTS SO MARKED MUST BE FACTORY FIT
† The receiver is a serial numbered component and is not sold separately.

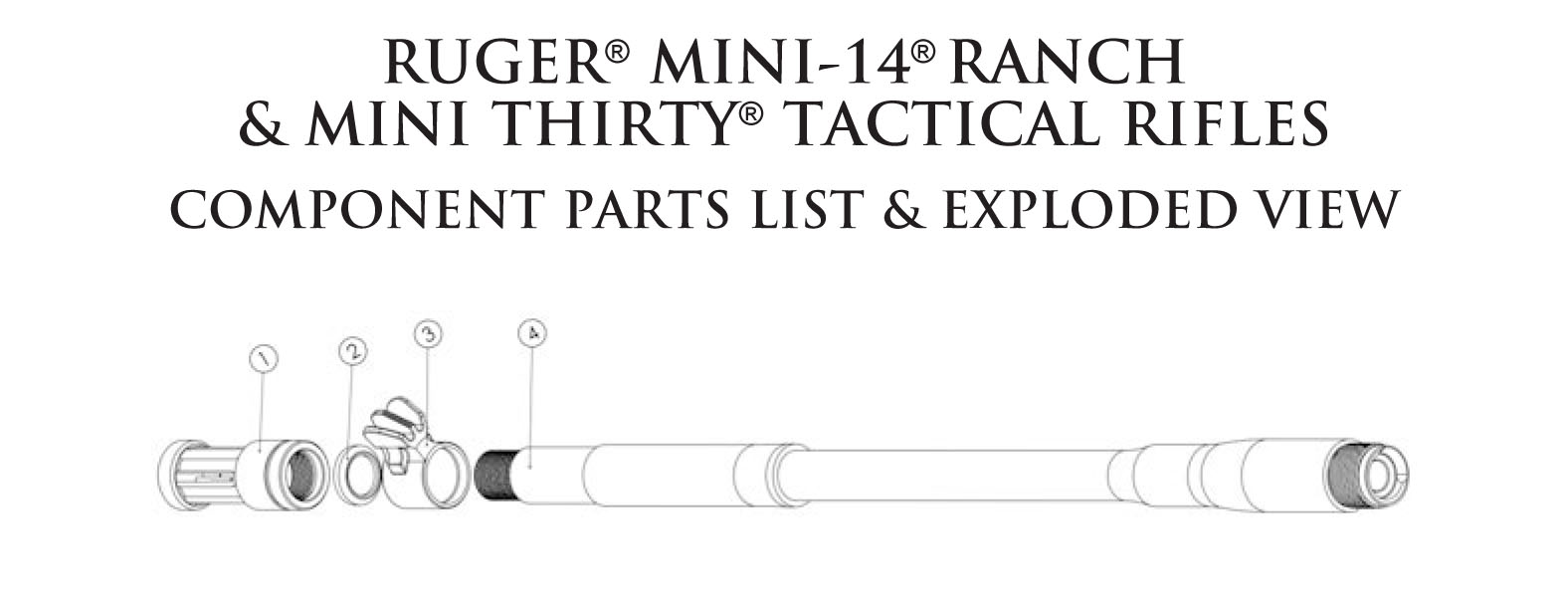

Key No. - Part Name
1 - Flash Suppressor
2 - Flash Suppressor Washer
3 - Front Sight
*4 - Barrel
* PARTS SO MARKED MUST BE FACTORY FIT

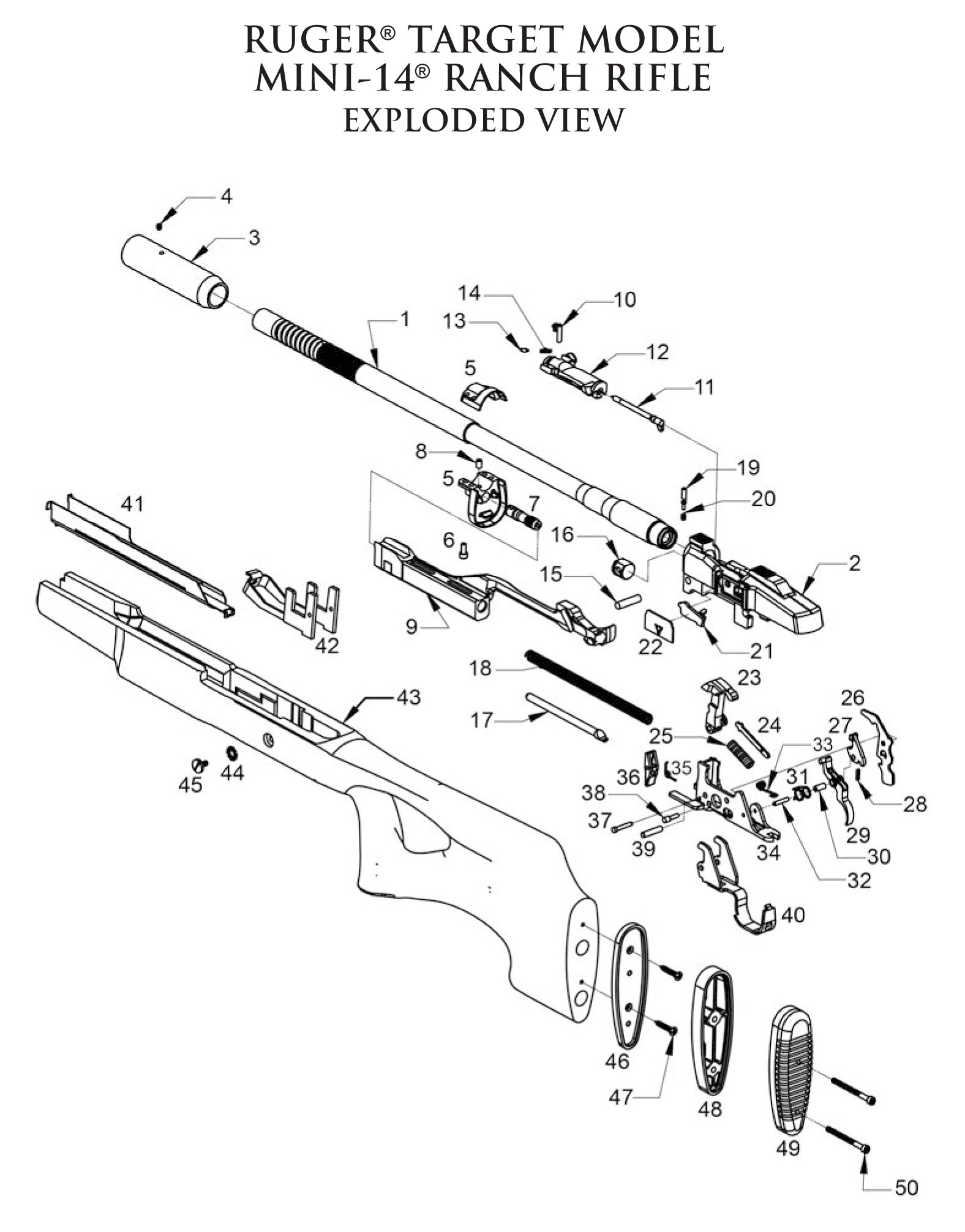

Key No. - Part Name
*1 - Barrel
†2 - Receiver
*3 - Muzzle Weight
*4 - Muzzle Weight Screw, 4 Req’d
*5 - Gas Block, Top & Bottom, 2 pieces
6 - Gas Block Screw, 4 Req’d
7 - Gas Pipe
8 - Gas Port Bushing
9 - Slide
10 - Extractor
*11 - Firing Pin
*12 - Bolt
13 - Extractor Plunger
14 - Extractor Plunger Spring
15 - Buffer Cross Pin
16 - Buffer Bushing
17 - Buffer Guide Rod
18 - Slide Spring
19 - Bolt Lock Plunger
20 - Bolt Lock Plunger Spring
21- Ejector Bolt Lock
22 - Cover Plate
23 - Hammer
24 - Hammer Strut
25 - Hammer Spring
26 - Safety Assembly
27 - Secondary Sear
28 - Secondary Sear Spring
29 - Trigger
30 - Trigger Bushing
31 - Trigger Spring
32 - Trigger Pivot Pin
33 - Safety Detent Spring
34 - Trigger Housing
35 - Magazine Latch Spring
36 - Rear Magazine Latch
37 - Magazine Latch Pivot Pin
38 - Safety Spring Retainer Pin
39 - Hammer Pivot Pin
40 - Trigger Guard
41 - Stock Liner
42 - Stock Reinforcement
43 - Stock
44 - Stock Reinforcement Lock Washer, 2 Req’d
45 - Stock Reinforcement Screws, 2 Req’d
46 - Butt Pad Holder
47 - Butt Pad Holder Screws, 2 Req’d
48 - Spacer Butt Pad
49 - Recoil Pad
50 - Recoil Pad Screws, 2 Req’d
* PARTS SO MARKED MUST BE FACTORY FIT
† The receiver is a serial numbered component and is not sold as a separate component.
Key No. - Part Name
53 - Forearm Liner & Stock Cap Assembly
58 - Stock Assembly
59 - Butt Pad
60 - Butt Pad Screws, 2 Req’d
61 - Pistol Grip Cap
62 - Pistol Grip Cap Screw
63 - Pistol Grip Cap Medallion
