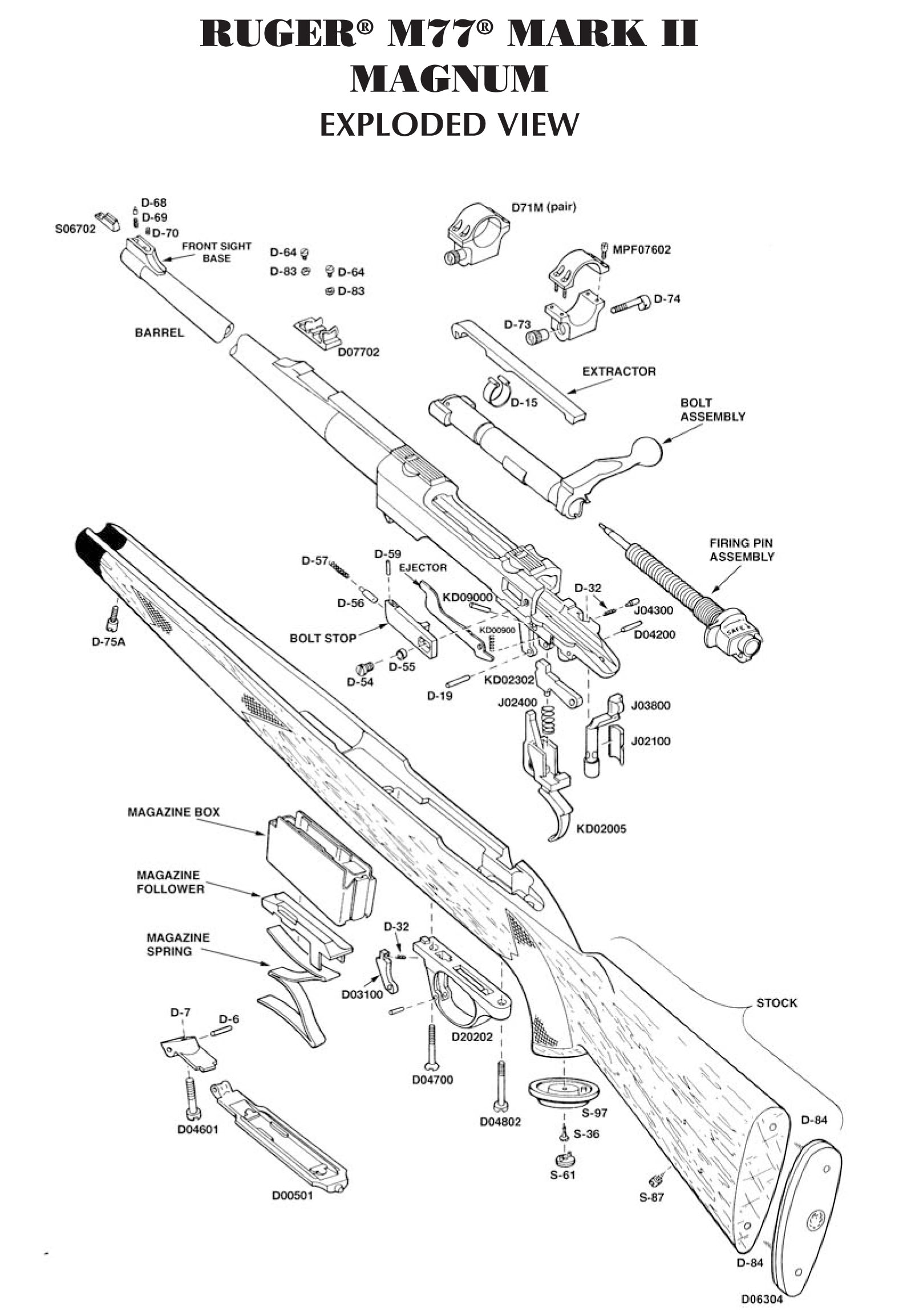

Despiece RUGER M77 Mark II
| Part Name | Part No. | Model |
| * Barrel - Blued | 0D8014 | Standard, Ultra Light, Left-handed - Blued Models |
| * Barrel - Stainless | K0D8014 | Ultra Light, Left-handed, Sporter - Stainless Models |
| * Barrel - Blued | 0D8080 | Magnum |
| * Barrel - Blued | 0D8055 | Express |
| * Barrel - Blued | 0D8004 | International |
| * Barrel - Stainless | K0D8062 | Target |
| * Barrel - Blued | 0D8085 | Compact |
| * Barrel - Stainless | K0D8085 | Compact |
| Barrel Band, Not Illustrated | D- 66 | Magnum 416 Rigby |
| Barrel Band, Not Illustrated | D06602 | Magnum 375 H & H |
| * Bolt Assembly, Complete - Blued | 70011 | All Blued Models |
| * Bolt Assembly, Complete - Stainless | 70010 | All Stainless Models |
| Bolt Stop - Blued | D- 53 | All Blued Models |
| Bolt Stop - Stainless | KD- 53 | All Stainless Models |
| Bolt Stop Plunger | D- 56 | All Blued Models |
| Bolt Stop Plunger | KD- 56 | All Stainless Models |
| Bolt Stop Plunger Spring | D- 57 | All Models |
| Bolt Stop Plunger Spring Retaining Pin | D- 59 | All Blued Models |
| Bolt Stop Plunger Spring Retaining Pin | KD- 59 | All Stainless Models |
| Bolt Stop Stud Bushing | D- 55 | All Blued Models |
| Bolt Stop Stud Bushing | KD- 55 | All Stainless Models |
| Part Name | Part No. | Model |
| Bolt Stop Stud Screw - Blued Models | D-54 | Standard, Ultra Light, Left-handed, Express, Magnum, International, Compact |
| Bolt Stop Stud Screw - Stainless Models | KD-54 | Ultra Light, Left-handed, Sporter, Compact |
| Bolt Stop Stud Screw | KD-54T | Target |
| Center Mounting Screw | D04700 | All Blued Models |
| Center Mounting Screw | KD04700 | All Stainless Models |
| Cocking Piece, Not Illustrated - Blued | D01801 | Standard, Ultra Light, Express, Magnum, International, Compact |
| Cocking Piece, Not Illustrated - Stainless | KD01801 | Ultra Light, Sporter, Compact |
| Cocking Piece, Not Illustrated | D01803 | Left-handed - Blued Model |
| Cocking Piece, Not Illustrated | KD01803 | Left-handed - Stainless Model |
| Cocking Piece, Not Illustrated | KD01801T | Target |
| Ejector - Blued | D00803 | All Blued Models |
| Ejector - Stainless | KD00803 | All Stainless Models |
| Ejector Pivot Pin | KD09000 | All Models |
| Ejector Spring | KD00900 | All Models |
| Escutcheon, Not Illustrated | D05100 | Magnum |
| Extractor | KD01434 | All Models |
| Extractor Band | KD-15 | All Models except Target Model |
| Extractor Band | KD-15T | Target |
| Ferrule, Left Side, 3 Req'd | W01015 | Standard & Ultra Light Models with Synthetic Stock |
| Ferrule, Right Side, 3 Req'd | W01014 | Standard & Ultra Light Models with Synthetic Stock |
| * Firing Pin Assembly - Blued | D21102 | All Blued Models except Left-handed Model |
| * Firing Pin Assembly - Stainless | KD21102 | All Stainless Models except Left-handed Model |
| * Firing Pin Assembly - Blued | D21105 | Left-handed - Blued Model |
| * Firing Pin Assembly - Stainless | KD21105 | Left-handed - Stainless Model |
| Firing Pin Cross Pin | D-19 | All Models |
| Firing Pin Spring | D-135 | All Models |
| Floor Plate | D00501 | Magnum |
| Part Name | Part No. | Model |
| Floor Plate Assembly - Alloy, Long Action | D20511 | Express |
| Floor Plate Assembly - Satin Finish, Long Action | KD20511 | All Models with Laminated Stocks |
| Floor Plate Assembly - Aluminum - Blued | D20506 | Standard, Ultra Light, Left-handed, International, Compact - Blued Models |
| Floor Plate Assembly - Aluminum - Clear | D20503 | Ultra Light, Left-handed, Target, Sporter, Compact - Stainless Models |
| Floor Plate Hinge - Blued Models | D-7 | Standard, Ultra Light, Left-handed, Express, Magnum, International, Compact |
| Floor Plate Hinge - Stainless Models | KD-7 | Ultra Light, Left-handed, Sporter, Compact |
| Floor Plate Hinge | KD-7T | Target |
| Floor Plate Latch - Blued Models | D03100 | Standard, Ultra Light, Left-handed, Express, Magnum, International, Compact |
| Floor Plate Latch - Stainless Models | KD03100 | Ultra Light, Left-handed, Sporter, Compact |
| Floor Plate Latch | KD03100T | Target |
| Floor Plate Pivot Pin | D-6 All | Blued Models |
| Floor Plate Pivot Pin | KD-6 | All Stainless Models |
| Forearm Insert, Right Side, Black Plastic | J00430 | Standard & Ultra Light Models with Synthetic Stock |
| Forearm Insert, Left Side, Black Plastic | J00431 | Standard & Ultra Light Models with Synthetic Stock |
| Forearm Insert, Right Side, Wood | J00411 | Standard & Ultra Light Models with Synthetic Stock |
| Forearm Insert, Left Side, Wood | J00412 | Standard & Ultra Light Models with Synthetic Stock |
| Front Mounting Screw | D04601 | All Blued Models |
| Front Mounting Screw | KD04601 | All Stainless Models |
| Front Sight Base - Blued | D06502 | International |
| Front Sight Base - Blued | D06507 | Express |
| Front Sight Base - Blued | S06502 | Magnum |
| Front Sight Base - Stainless | KS06500 | Stainless Models w/Sights |
| Front Sight Base Set Screw | D-70 | Standard & Sporter Models w/Sights, Express, Magnum, International |
| Front Sight Blade Assembly | D06702A | Standard & Sporter Models w/Sights, International |
| Front Sight Blade Assembly | D06709A | Express |
| Front Sight Blade Assembly | S06702A | Magnum |
| Part Name | Part No. | Model |
| Front Sight Plunger Spring | D-69 | Standard & Sporter Models w/Sights, Express, Magnum, International |
| Front Sight Retainer Plunger | D-68 | Standard & Sporter Models w/Sights, Express, Magnum, International |
| Front Sling Swivel Screw | S-86B | Standard, Ultra Light, Left-handed, Target, Sporter, Compact |
| Front Sling Swivel Screw | D-75A | Express, Magnum |
| Front Sling Swivel | KJ00420 | Standard & Ultra Light Models with Synthetic Stock |
| Front Sling Swivel Pin | KJ00422 | Standard & Ultra Light Models with Synthetic Stock |
| Insert Screw, Rear, Black Plastic | KD00491 | Standard & Ultra Light Models with Synthetic Stock |
| Insert Screw, Front, Black Plastic | KD00490 | Standard & Ultra Light Models with Synthetic Stock |
| Magazine Box | D22703 | Magnum |
| Magazine Box - Long Action | D22707 | Specify Model & Caliber |
| Magazine Box - Short Action | D22700 | Specify Model & Caliber (except 22/250) |
| Magazine Box - Short Action | D22710 | 22/250 Caliber Only |
| Magazine Follower | KD03004 | Magnum |
| Magazine Follower, with tab - Long Action | KD03023 | Specify Model & Caliber |
| Magazine Follower, with tab - Short Action | KD03025 | Specify Model & Caliber (except 22/250) |
| Magazine Follower - Short Action | D-147 | 22/250 Caliber Only |
| Magazine Latch Spring | D-32 | All Models |
| Magazine Spring - Short Action | D-149 | 22/250 Caliber Only |
| Magazine Spring | D-148 | All Models except 22/250 Caliber |
| Pistol Grip Cap - Plastic | D08003 | Standard, Express, Ultra Light, Left-handed, International, Sporter, Compact |
| Pistol Grip Cap - Steel | S-97 | Magnum |
| Pistol Grip Cap Medallion | D-82 | Standard, Express, Ultra Light, Left-handed, International, Sporter, Compact |
| Pistol Grip Cap Medallion - Brass | S-61 | Magnum |
| Pistol Grip Cap Screw | C-96SM | Standard, Express, Ultra Light, Left-handed, International, Sporter, Compact |
| Pistol Grip Cap Screw | S-36 | Magnum |
| Pistol Grip Insert, Right Side, Black Plastic | J00428 | Standard & Ultra Light Models with Synthetic Stock |
| Pistol Grip Insert, Left Side, Black Plastic | J00429 | Standard & Ultra Light Models with Synthetic Stock |
| Part Name | Part No. | Model |
| Pistol Grip Insert, Right Side, Wood | J00409 | Standard & Ultra Light Models with Synthetic Stock |
| Pistol Grip Insert, Left Side, Wood | J00410 | Standard & Ultra Light Models with Synthetic Stock |
| Pistol Grip Insert Screw | KW01300 | Standard & Ultra Light Models with Synthetic Stock |
| Plunger Latch Spring | SC-41 | Target |
| Rear Mounting Screw | D04800 | Standard, Ultra Light, Left-handed, International, Compact - Blued Models |
| Rear Mounting Screw | KD04800 | Ultra Light, Left-handed, Sporter, Compact - Stainless Models |
| Rear Mounting Screw | D04802 | Express, Magnum |
| Rear Mounting Screw | KD04800T | Target |
| Rear Sight, Complete | D-77 | Standard & Sporter Models with Sights, International |
| * Rear Sight, Complete | D07707 | Express |
| * Rear Sight, Complete | D07702 | Magnum |
| Rear Sight Clamp Screw, 2 Req'd | D-64 | Standard & Sporter Models with Sights, Express, Magnum, International |
| Rear Sight Williams Gib Lock Clamp, 2 Req'd | D-83 | Standard & Sporter Models with Sights, Express, Magnum, International |
| Rear Sling Swivel | KJ00421 | Standard & Ultra Light Models with Synthetic Stock |
| Rear Sling Swivel Pin | KJ00423 | Standard & Ultra Light Models with Synthetic Stock |
| Rear Sling Swivel Stud | S-87 | All Models |
| Recoil Pad | D06304 | All Models except Stainless |
| Recoil Pad | OU06308 | Stainless Models |
| Recoil Pad, with Spacer & Insert | D06315 | Old Synthetic Stock Models |
| Recoil Pad Screw, 2 Req'd | D-84 | All Models |
| Recoil Pad Screw, 2 Req'd | B-91 | Standard & Ultra Light Models with Synthetic Stock |
| * Recoil Plate Assembly, Not Illustrated | D29204 | Magnum |
| * Recoil Plate Mounting Screw, Not Illustrated | D-75 | Magnum |
| * Safety Selector - Blued Models | J03800 | Standard, Express, Magnum, Ultra Light, International, Compact |
| * Safety Selector - Stainless Models | KJ03800 | Ultra Light, Target, Sporter, Compact |
| * Safety Selector | D03802 | Left-handed - Blued Models |
| * Safety Selector | KD03802 | Left-handed - Stainless Models |
| Safety Selector Detent | J04300 | All Models |
| Safety Selector Detent Spring | D-32 | All Models |
| Part Name | Part No. | Model |
| * Safety Selector Retainer - Blued Models | J02100 | Standard, Express, Magnum, Ultra Light, International, Compact |
| * Safety Selector Retainer - Stainless Models | KJ02100 | Ultra Light, Target, Sporter, Compact |
| * Safety Selector Retainer | D02101 | Left-handed - Blued Models |
| * Safety Selector Retainer | KD02101 | Left-handed - Stainless Models |
| Scope Base Clamp | D-74 | All Blued Models |
| Scope Base Clamp | KD-74M | All Stainless Models |
| Scope Base Nut | D-73 | All Blued Models |
| Scope Base Nut | KD-73M | All Stainless Models |
| Scope Base Torx® Head Screw, 8 Req'd | MPF07602 | All Blued Models |
| Scope Base Torx® Head Screw, 8 Req'd | KMPF07602 | All Stainless Models |
| Scope Rings, Medium rings, Accomodates 42mm Lens |
D71M | All Blued Models |
| Scope Rings, Medium rings, Accomodates 42mm Lens |
KD71M | All Stainless Models |
| Scope Rings, Medium rings, Gray Stainless | KD71HTG | Target |
| * Sear | KD02302 | All Models Except Target Model |
| * Sear | KD02306 | Target |
| Sear Pivot Pin | D04200 | All Models |
| Stock Assembly, Walnut | D00408 | Standard, Ultra Light |
| Stock Assembly, Old Style Synthetic, Complete with Plastic Inserts |
D20410 | Standard, Ultra Light |
| Stock Assembly, Synthetic, Full Contour |
D30436 | Standard, Ultra Light |
| Stock Assembly, Laminated | D00477 | Sporter |
| Stock Assembly, Laminated | D00450 | Left-handed - Stainless Models |
| Stock Assembly, Walnut | D00461 | Left-handed - Blued Models |
| * Stock Assembly, Circassian Walnut | D20486 | Express |
| * Stock Assembly, Circassian Walnut | D20488 | Magnum |
| Stock Assembly, Walnut Manlicher | D00462 | International |
| Stock Assembly, Laminated | D00495 | Target |
| Part Name | Part No. | Model |
| Stock Assembly, Walnut | D00443 | Compact - Blued Models |
| Stock Assembly, Black Laminated | D00444 | Compact - Stainless Models |
| Stock Cross Bolt, Not Illustrated | D-91 | Magnum |
| Stock Cross Bolt Nut, Not Illustrated | D-90 | Magnum |
| Take Down Screw, Not Illustrated | B-65 | Magnum |
| Torx® Key Wrench, Not Illustrated (for scope base Torx® Head Screw) |
MPF07601 | All Models |
| * Trigger | KD02001 | Standard, Express, Ultra Light, International, Sporter, Compact |
| * Trigger | KD02005 | Magnum |
| * Trigger | KD02007 | Left-handed |

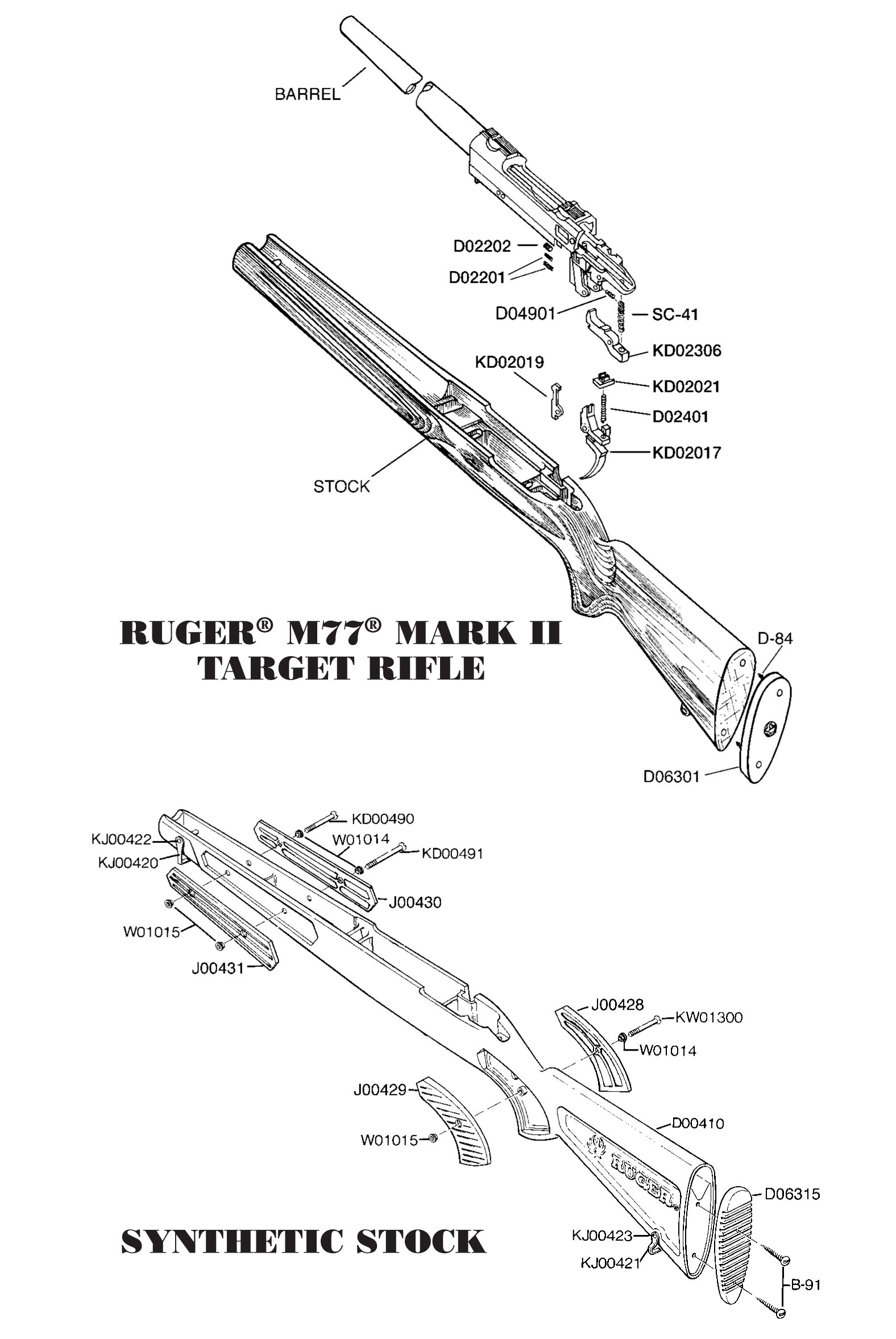

| * Trigger, Primary | KD02017 | Target |
| * Trigger, Secondary | KD02019 | Target |
| Trigger Adjustment Screw (weight of pull) | D02202 | Target |
| Trigger Adjustment Spring | D04901 | Target |
| Trigger Guard Assembly | D20201 | Standard, Ultra Light, International, Compact - Blued Models |
| Trigger Guard Assembly | KD20201 | Ultra Light, Target, Sporter, Compact - Stainless Models |
| Trigger Guard Assembly | D20202 | Express, Magnum, Left-handed |
| Trigger Guard Assembly | KD20202 | Left-handed - Stainless Models |
| Trigger Overtravel/Sear Engagement Screw,2 Req'd | D02201 | Target |
| Trigger Pivot Pin | D-19 | All Models |
| Trigger/Sear Spring | J02400 | All Models Except Target Model |
| Trigger/Sear Spring | D02401 | Target |
| Trigger Spring Seat | KD02021 | Target |
* PARTS SO MARKED MUST BE FITTED

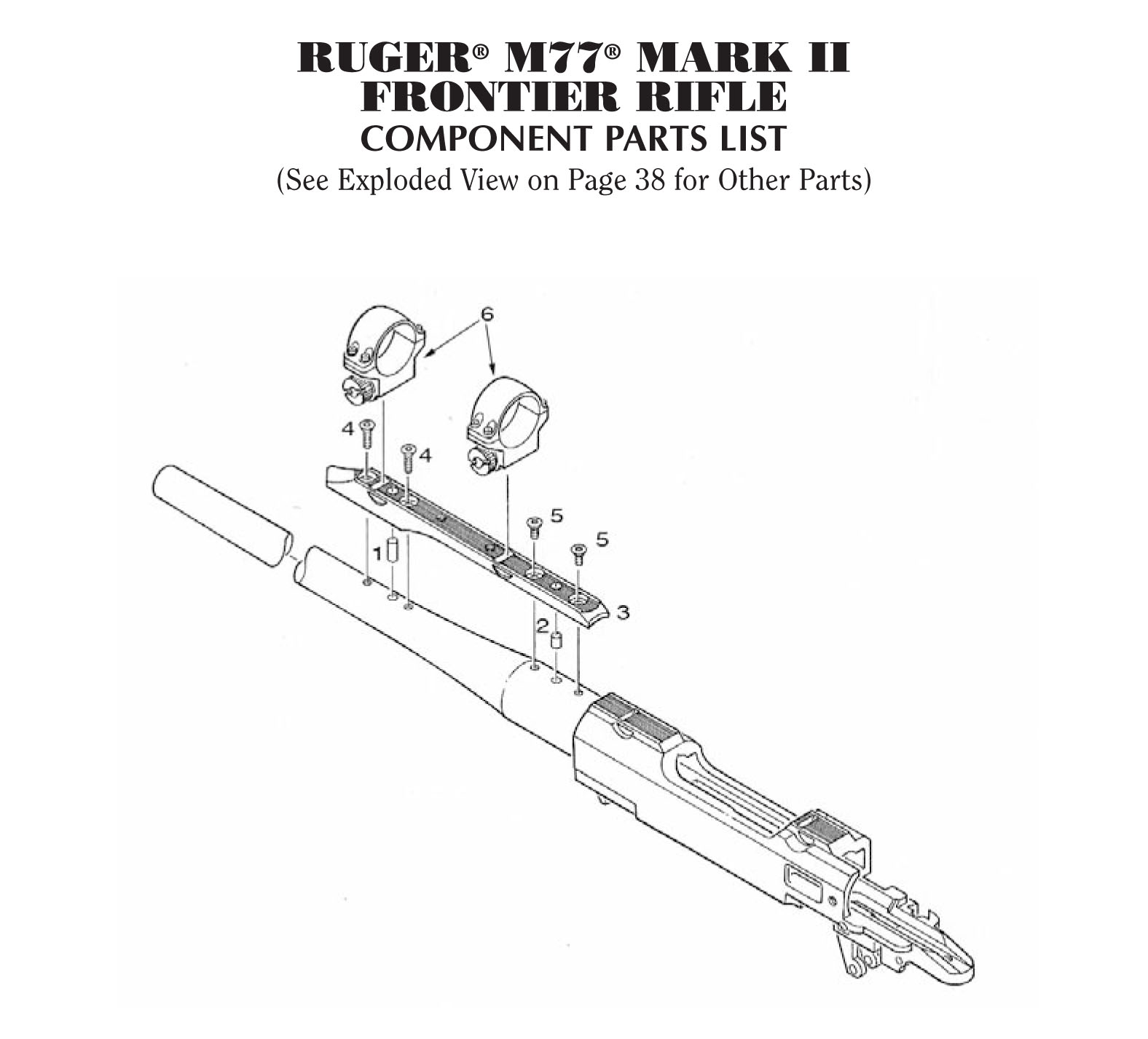

| Key No. | Part Name | Part No. |
| 1 | Barrel Rib Dowel, Front | S-152 |
| 2 | Barrel Rib Dowel, Rear | S-151 |
| 3 | Barrel Rib | D01330 |
| 4 | Barrel Rib Screws, 2 Req'd | S-138 |
| 5 | Barrel Rib Center Screws, 2 Req'd | D06101 |
| 6 | Scope Rings, Low, Sold as Pair | S100RL |
| 7 | Scope Base Adapter (Includes Key Nos. 7a & 7b) | D08800 |
| 7a | Scope Base Screw, Front | D06102 |
| 7b | Scope Base Screw, Rear | D06101 |
