Despiece RUGER LCP
Key No. - Part Name
*1 - Slide
2 - Firing Pin/Extractor Retaining Pin, 2 Req’d
3 - Extractor Spring
4 - Extractor
5 - Firing Pin Spring
6 - Firing Pin
7 - Guide Rod
8 - Recoil Spring, Inner
9 - Recoil Spring, Outer
*10 - Barrel
†11 - Frame Insert
12 - Trigger
13 - Trigger Pin
14 - Trigger Pivot
15 - Hammer Catch Spring
16 - Hammer Pivot Pin
17 - Trigger Bar
18 - Hold Open
19 - Takedown Pin Detent
20 - Hold Open Detent
21 - Hammer Spring Retainer Pin
22 - Hammer
23 - Frame
24 - Hammer Spring
25 - Trigger Spring
26 - Hammer Catch
27 - Magazine Latch Catch
28 - Frame Insert Pin, 2 Req’d
29 - Takedown Pin
30 - Hammer Catch Pin
31 - Magazine Latch Spring
32 - Hammer Spring Seat Pin
33 - Hammer Spring Seat
34 - Magazine, Complete
* PARTS SO MARKED MUST BE FACTORY FIT.
† The Frame Insert is a serial-numbered component and is defined as a “firearm” by Federal Law and is not sold as a separate component.

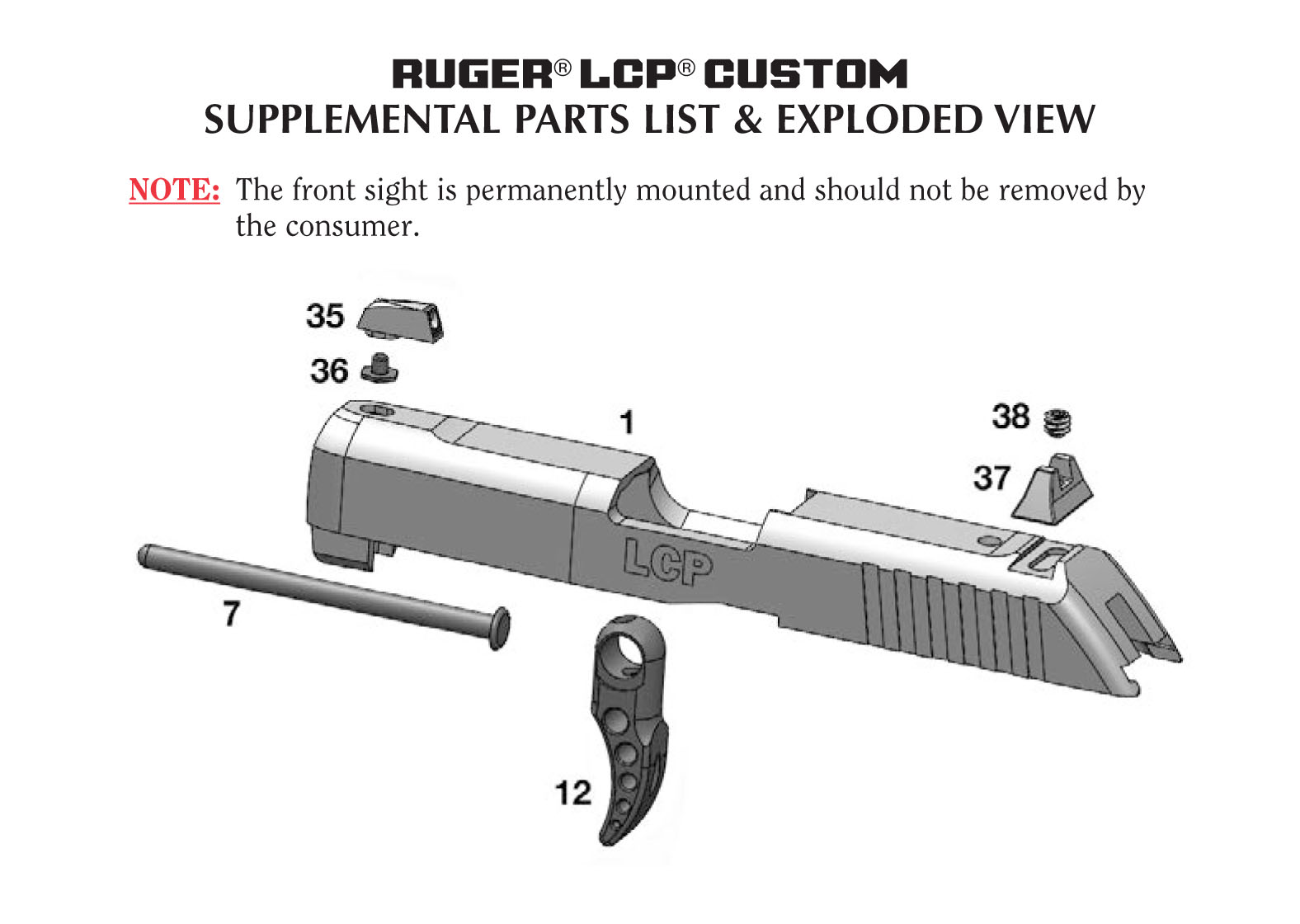

Key No.- Part Name
*1 - Slide
7 - Guide Rod
12 - Trigger
*35 - Front Sight
*36 - Front Sight Screw
37 - Rear Sight
38 - Rear Sight Screw
* Parts so marked must be factory installed.
