Despiece RUGER LC CARBINE
Key- Part Name

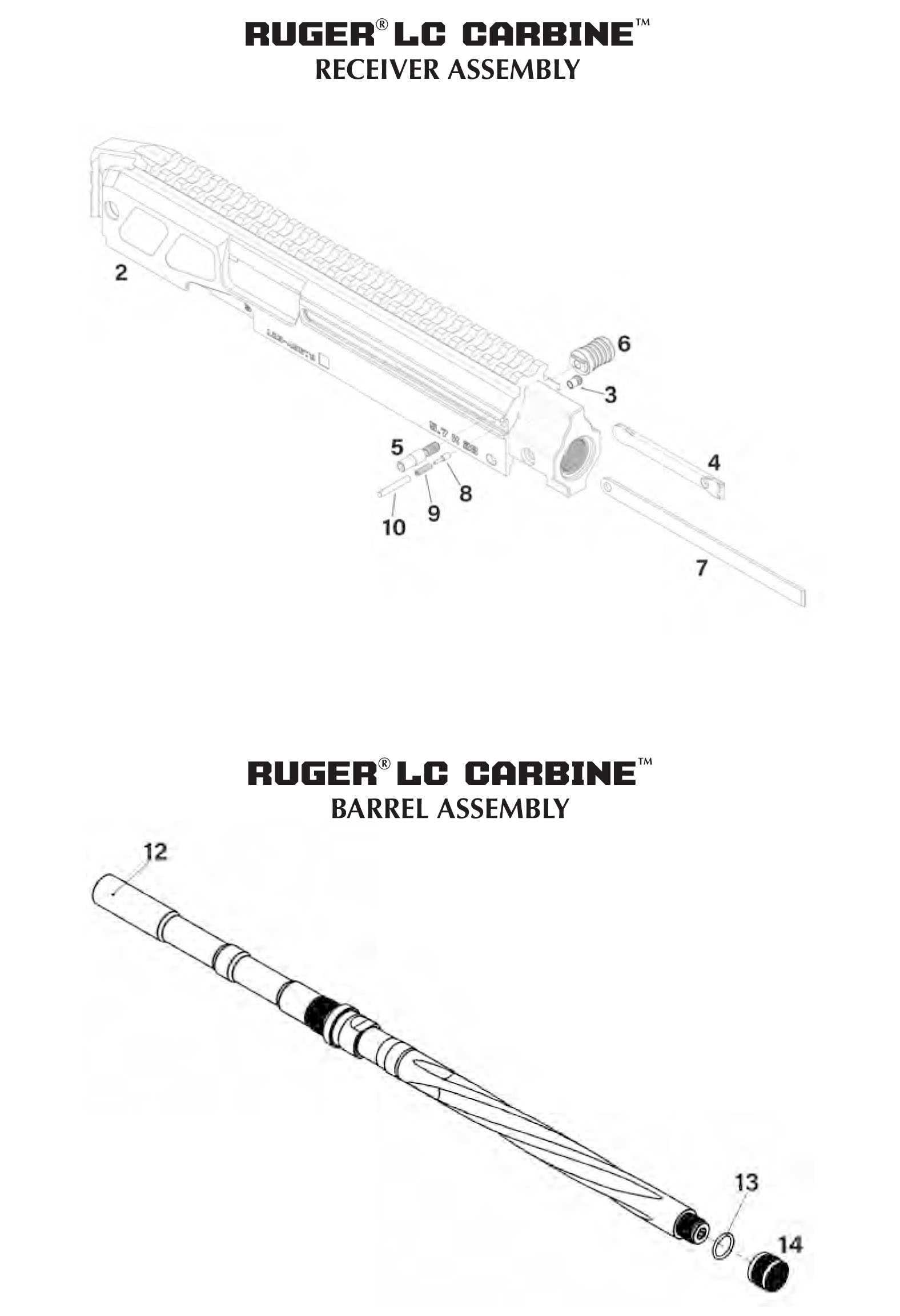

†1 - Receiver Assembly – Complete Includes Key Nos. 2 - 10
†2 - Receiver
3 - Charging Detent Stop
4 - Charging Slide Plate
5 - Charging Handle Bolt
6 - Charging Handle
7 - Cover Plate
8 - Safety Detent Plunger
9 - Safety Spring
10 - Pin
11 - Barrel Assembly – Complete Includes Key Nos. 12 - 14
12 - Barrel
13 - O-Ring
14 - Thread Protector

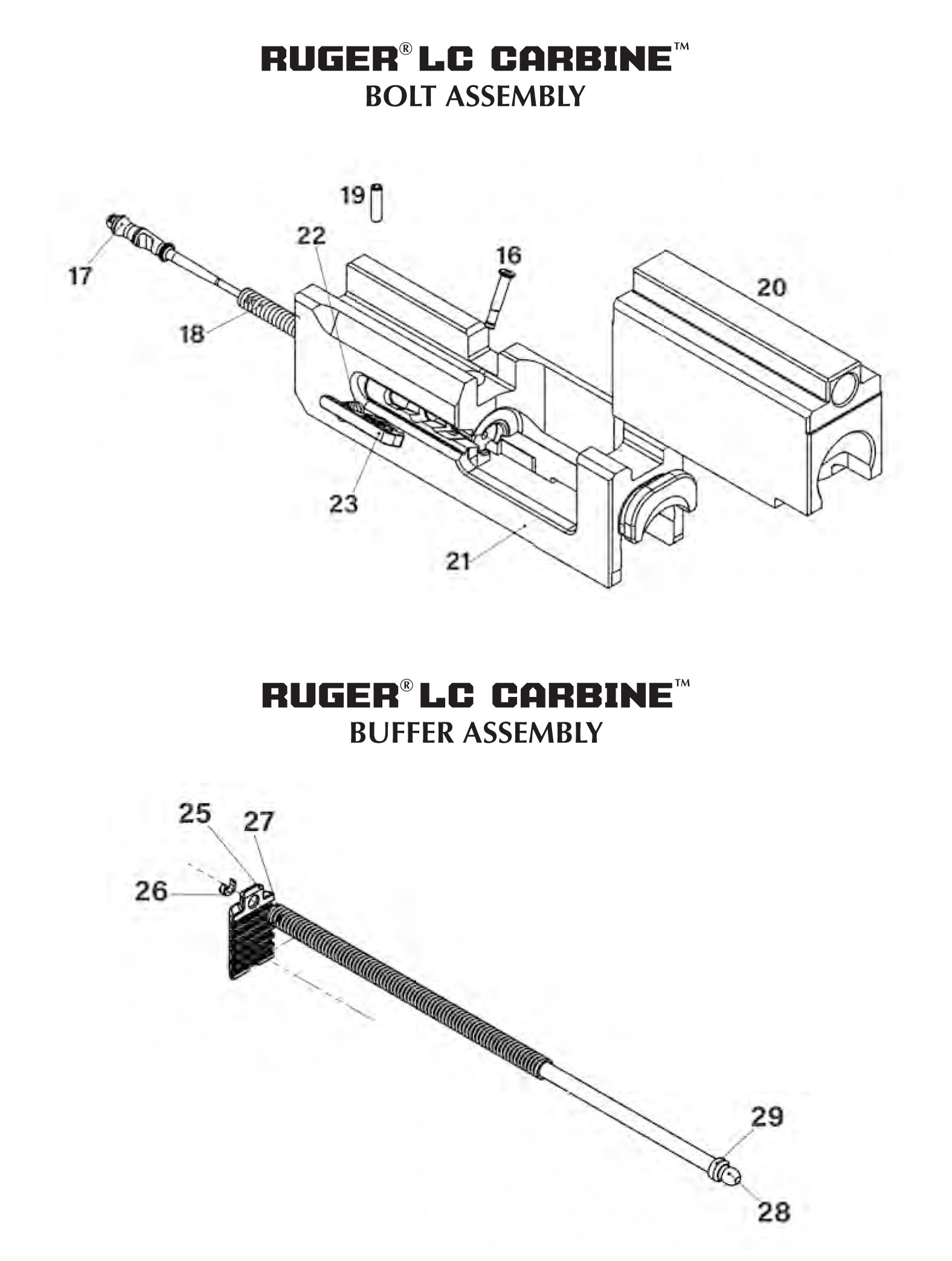

15 - Bolt Assembly – Complete Includes Key Nos. 16 - 23
16 - Extractor Pivot Pin
17 - Firing Pin
18 - Firing Pin Spring
19 - Firing Pin Retention Pin
20 - Bolt, Front
21 - Bolt, Rear
22 - Extractor Spring
23 - Extractor
24 - Buffer Assembly – Complete Includes Key Nos. 25 - 29
25 - Buffer
26 - Recoil Spring Retainer
27 - Recoil Spring
28 - Guide Rod
29 - Guide Rod Bushing

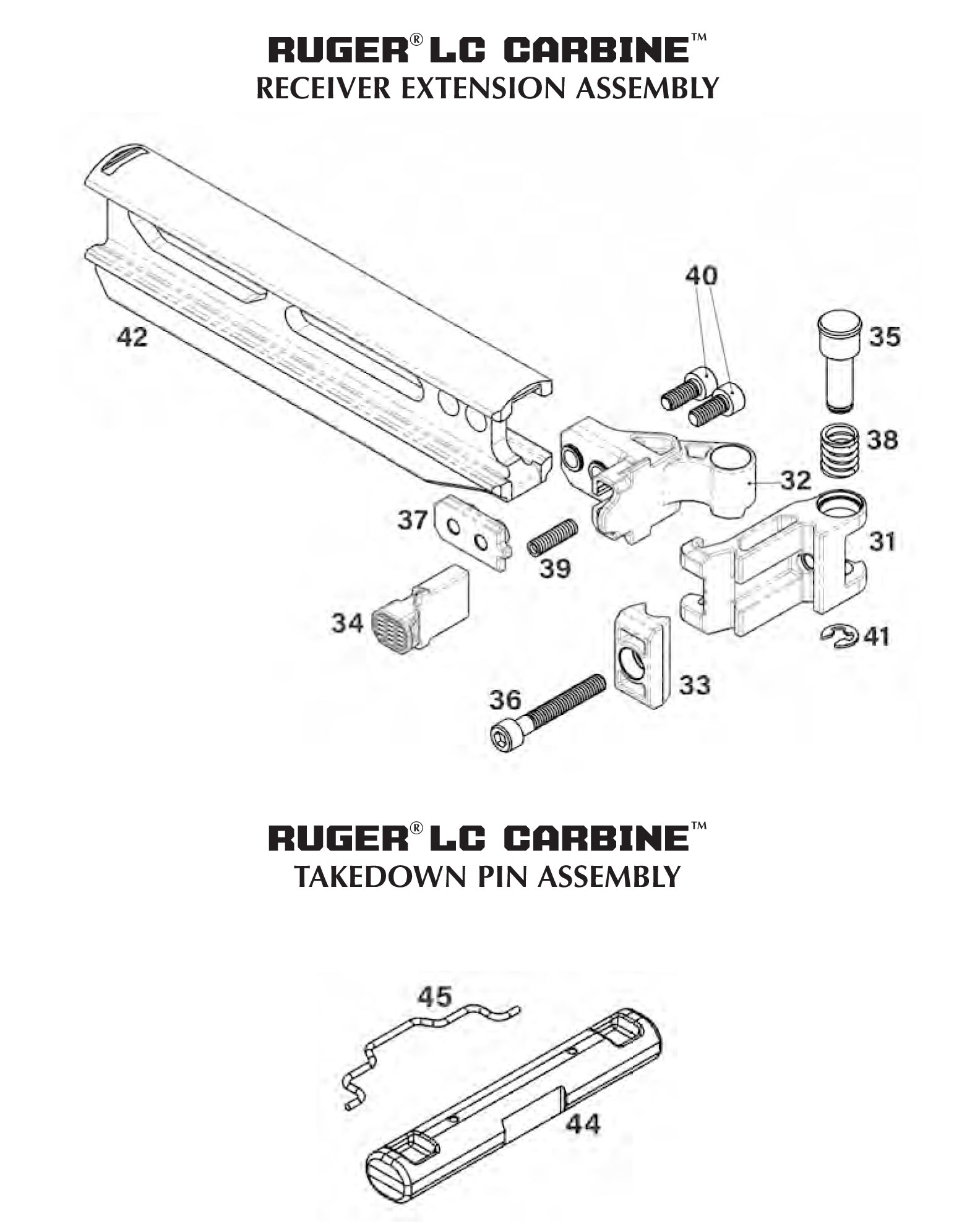

30 - Receiver Extension Assembly – Complete Includes Key Nos. 31 - 42
31 - Folding Stock Hinge Mount
32 - Folding Stock Hinge Back
33 - Hinge Clamp
34 - Folding Stock Locking Button
35 - Hinge Pin
36 - Hinge Attachment Bolt
37 - Folding Stock Securing Plate
38 - Hinge Spring
39 - Latch Spring
40 - Receiver Extension Attachment Bolt, 2 Req’d
41 - Hinge E-Clip
42 - Receiver Extension
43 - Takedown Pin Assembly – Complete Includes Key Nos. 44 - 45
44 - Takedown Pin
45 - Takedown Pin Wire
46 - Handguard
47 - Handguard Screws, 3 Req’d
48 - Front Sight
49 - Rear Sight
50 - Sight Screw, 2 Req’d

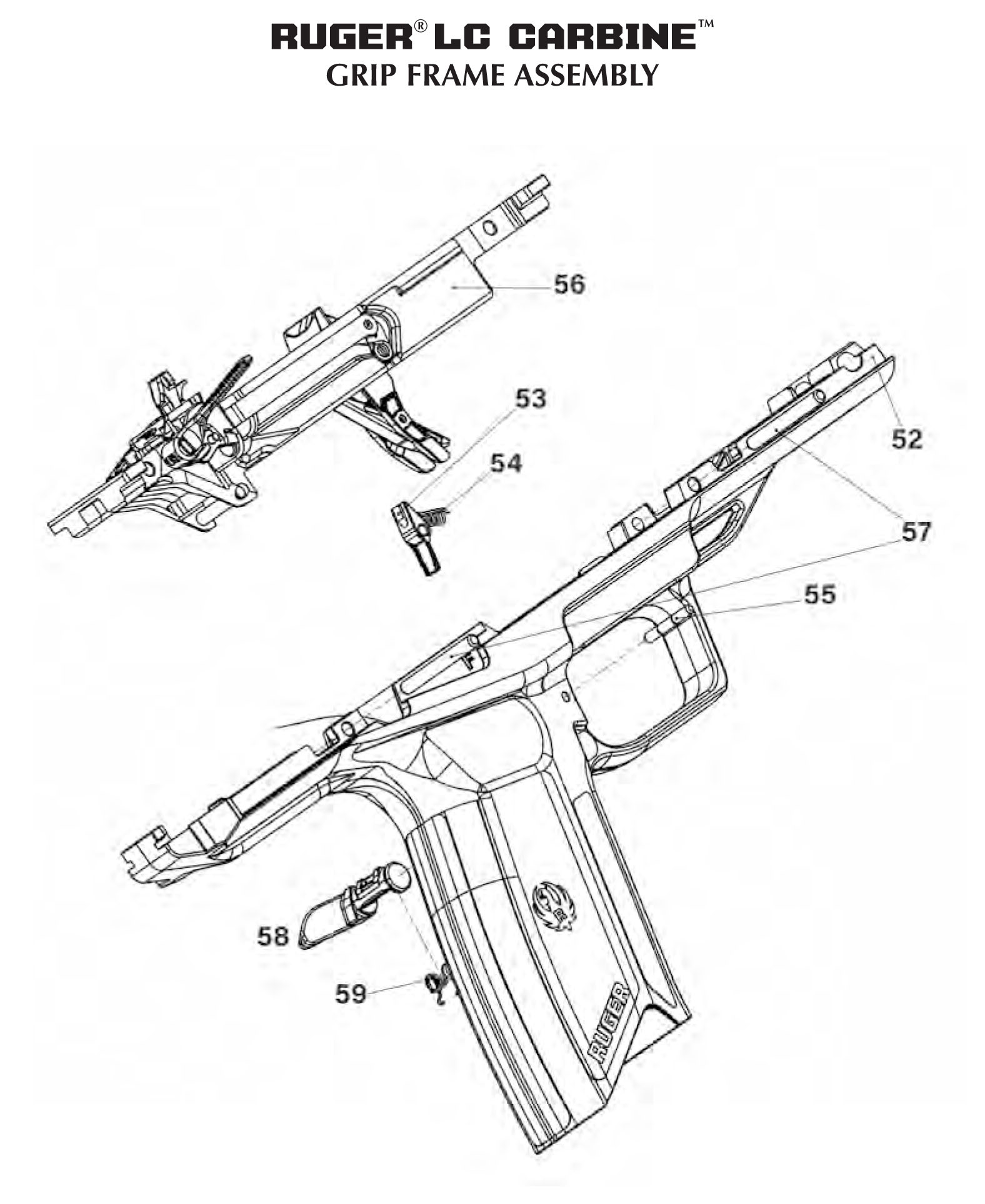

51 - Grip Frame Assembly – Complete Includes Key Nos. 52 - 59
52 - Grip Frame
53 - Magazine Latch
54- Magazine Latch Spring
55 - Magazine Latch Pivot Pin
56 - Insert Assembly
57- Grip Frame Pin
58 - Magazine Release Lever
59 - Magazine Release Spring

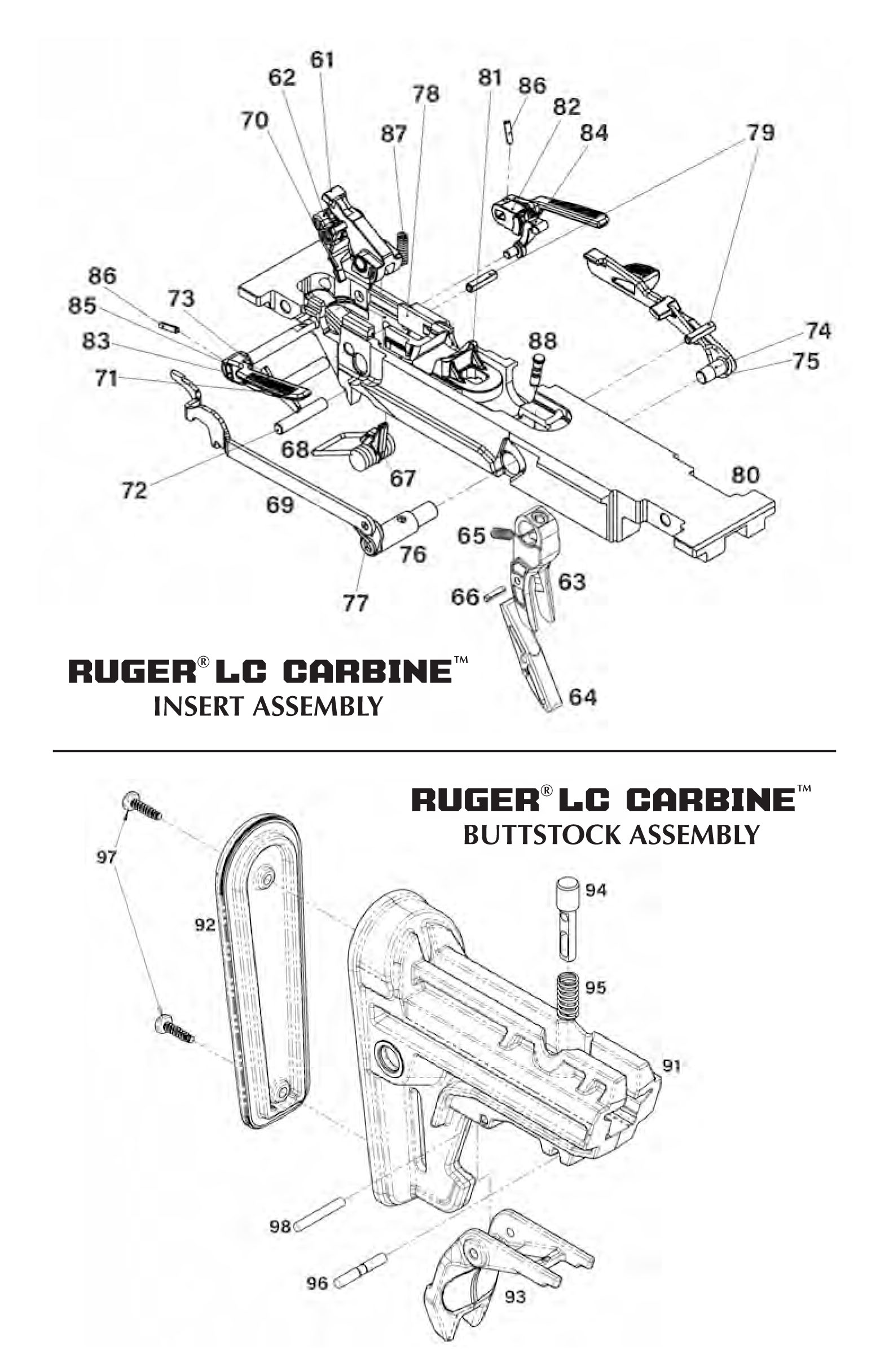

*60 - Insert Assembly – Complete Includes Key Nos. 61 - 88
*61 - Hammer
*62 - Sear
*63 - Trigger, Outer
*64 - Trigger, Inner
*65 - Inner Trigger Spring
*66 - Inner Trigger Pivot Pin
*67 - Hammer Toggle
*68 - Hammer Spring
*69 - Trigger Bar
*70 - Sear Spring
*71 - Hammer Pin
*72 - Hammer Spring Pin
*73 - Safety Rocker
*74 - Bolt Release
*75 - LRHO Spring
*76 - Trigger Pivot
*77 - Trigger Spring
*78 - Ejector
*79 - Ejector/Feed Ramp Retention Pin, 2 Req’d
*80 - I-nsert
*81 - Feed Ramp Insert
*82 - Left Safety
*83 - Safety Pivot Pin
*84 - Safety Detent
*85 - Right Safety
*86 - Safety Retaining Pin, 2 Req’d
*87 - Safety Spring
*88 - Trigger Pivot Pin
89 - Cheek Pad
90 - Buttstock Assembly – Complete Includes Key Nos. 91 - 98
91 - Buttstock
92 - Buttpad
93 - Buttstock Lever
94 - Buttstock Detent Pin
95 - Buttstock Detent Spring
96 - Buttstock Cross Pin
97 - Buttpad Screw, 2 Req’d
98 - Buttstock Lever Pin
99 - Magazine
† The receiver is a serial-numbered part and is not separately offered for sale.
* Parts so marked must be factory fit.
