Despiece RUGER Hawkeye

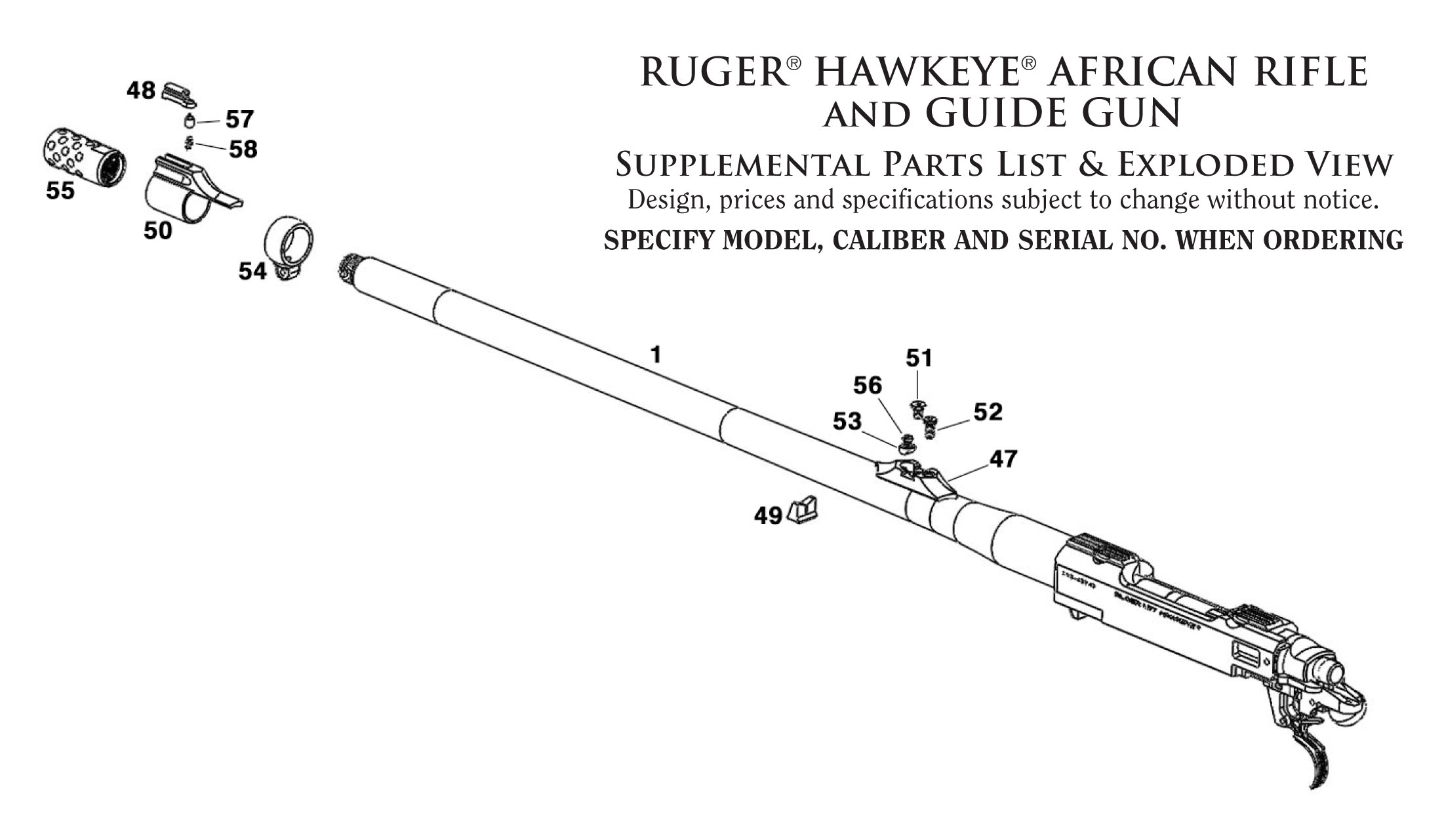

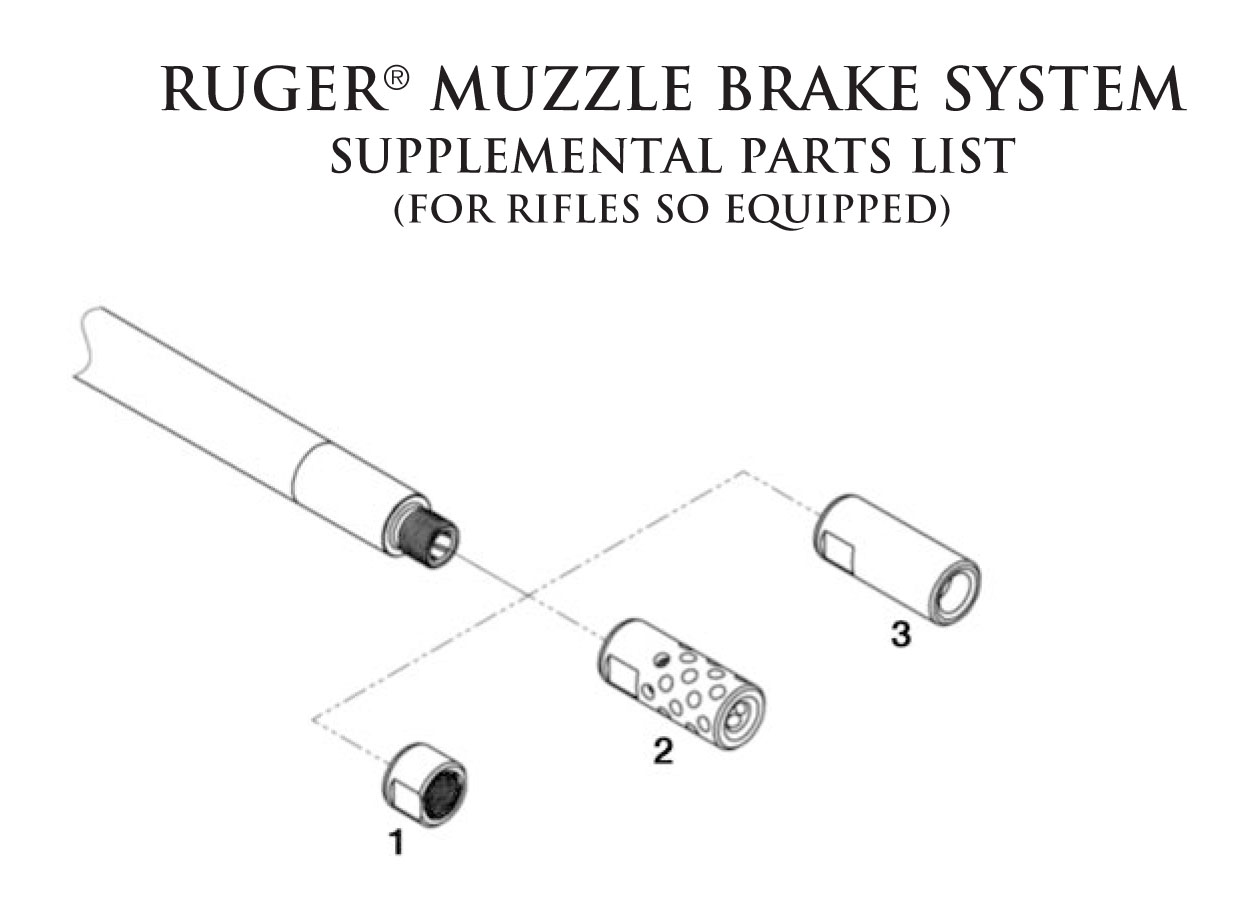

Key

Part Name

Key

Part Name

* 1

Barrel

24

Sear Pivot Pin

† 2

Receiver

25

Stock

* 3

Bolt Assembly, Complete

26

Magazine Box

* 4

Firing Pin Assembly

27

Magazine Follower, with Tab

* 5

Extractor

28

Magazine Spring

6

Extractor Band

29

Trigger Guard Assembly

* 7

Ejector

30

Magazine Latch Spring

8

Ejector Spring

31

Floor Plate Latch

9

Ejector Pivot Pin

32

Floor Plate Assembly

10

Safety Selector Detent Spring

33

Floor Plate Hinge

11

Safety Selector Detent

34

Floor Plate Pivot Pin

12

Bolt Stop

35

Pistol Grip Cap

13

Bolt Stop Plunger

36

Pistol Grip Cap Screw

14

Bolt Stop Plunger Spring

37

Pistol Grip Cap Medallion

15

Bolt Stop Plunger Spring

38

Rear Sling Swivel Stud

Retaining Pin

39

Front Sling Swivel Screw

16

Bolt Stop Stud Bushing

40

Recoil Pad

17

Bolt Stop Screw Stud

41

Recoil Pad Screw, 2 Req'd

* 18

Sear

42

Front Mounting Screw

19

Trigger/Sear Spring

43

Center Mounting Screw

* 20

Trigger

44

Rear Mounting Screw

* 21

Safety Selector

45

Scope Ring, Front

* 22

Safety Selector Retainer

46

Scope Ring, Rear

23

Trigger Pivot Pin
