Despiece RUGER GP100

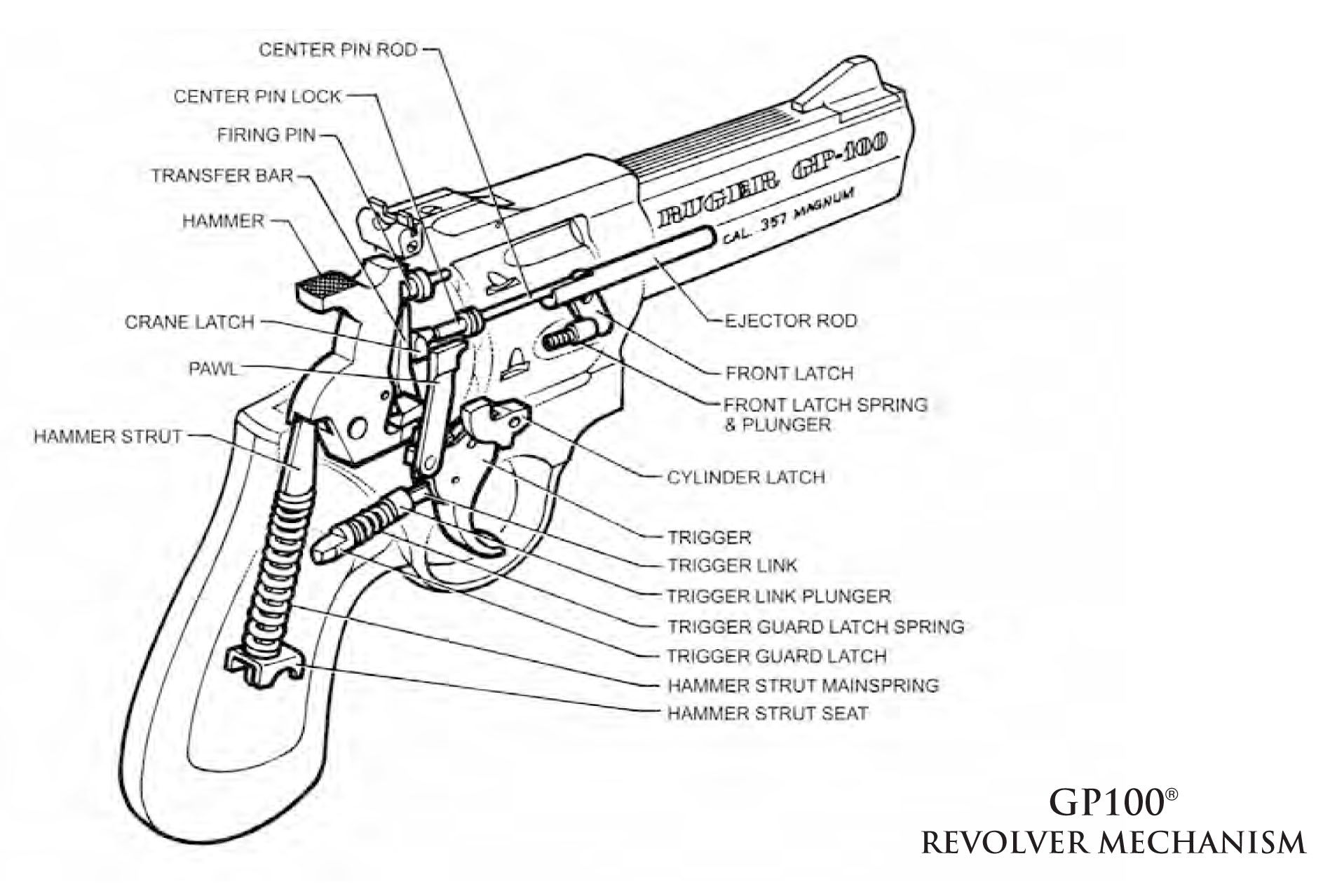

Key No. - Part Name
*1 - Barrel
†2 - Cylinder Frame
*3 - Firing Pin Spring
*4 - Crane Pivot Lock Plunger
*5 - Trigger Guard
*6 - Crane Pivot Lock Spring
*7 - Cylinder Latch Pivot
*8 - Firing Pin Plug
9 - Trigger Guard Latch
10 - Hammer Dog Pivot Pin
*11 - Firing Pin
12 - Trigger Guard Latch Spring
*13 - Cylinder Retaining Ball, 2 Req’d
*14- Crane
*15 - Cylinder
*16 - Ejector
17 - Pawl Plunger
*18 - Hammer
19 - Hammer Dog
20 - Hammer Dog, Crane Latch, & Front Latch Springs
*21 - Trigger
22 - Trigger Link
23 - Trigger Cross Pin
24 - Hammer Pivot Pin Assembly
25 - Ejector Rod
*26 - Pawl
27 - Front Latch Pivot Lock
28 - Front Latch Spring Plunger
29 - Front Latch Pivot Pin
30 - Front Latch
*31 - Ejector Retainer
32 - Transfer Bar
33 - Hammer Strut
34 - Hammer Strut Mainspring
35 - Mainspring Seat
36 - Pawl Spring Plunger
*37 - Crane Latch
38 - Front Latch Pivot Lock Spring
39 - Center Pin Rod
40 - Pawl Plunger Spring
41 - Cylinder Latch
42 - Trigger Plunger
43 - Trigger Pivot Pin
44 - Center Pin
45 - Center Pin Spring
*46 - Crane Latch Pivot
47 - Ejector Spring
48 - Trigger Link Plunger
49 - Rear Sight Base
50 - Rear Sight Blade
51 - Rear Sight Elevation Screw
52 -Pawl Plunger Spring
53 - Rear Sight Windage Adjustment Screw
54 - Rear Sight Elevation Spring, 2 Req’d
55 - Rear Sight Pivot Pin
56 - Front Sight Plunger
57 - Front Sight Spring
58 - Front Sight
59 - Grip
* PARTS SO MARKED MUST BE FACTORY FIT
† Because it is a serial numbered part, the cylinder frame is defined as a ‘firearm’ by Federal Law and is not offered for sale as a component part.

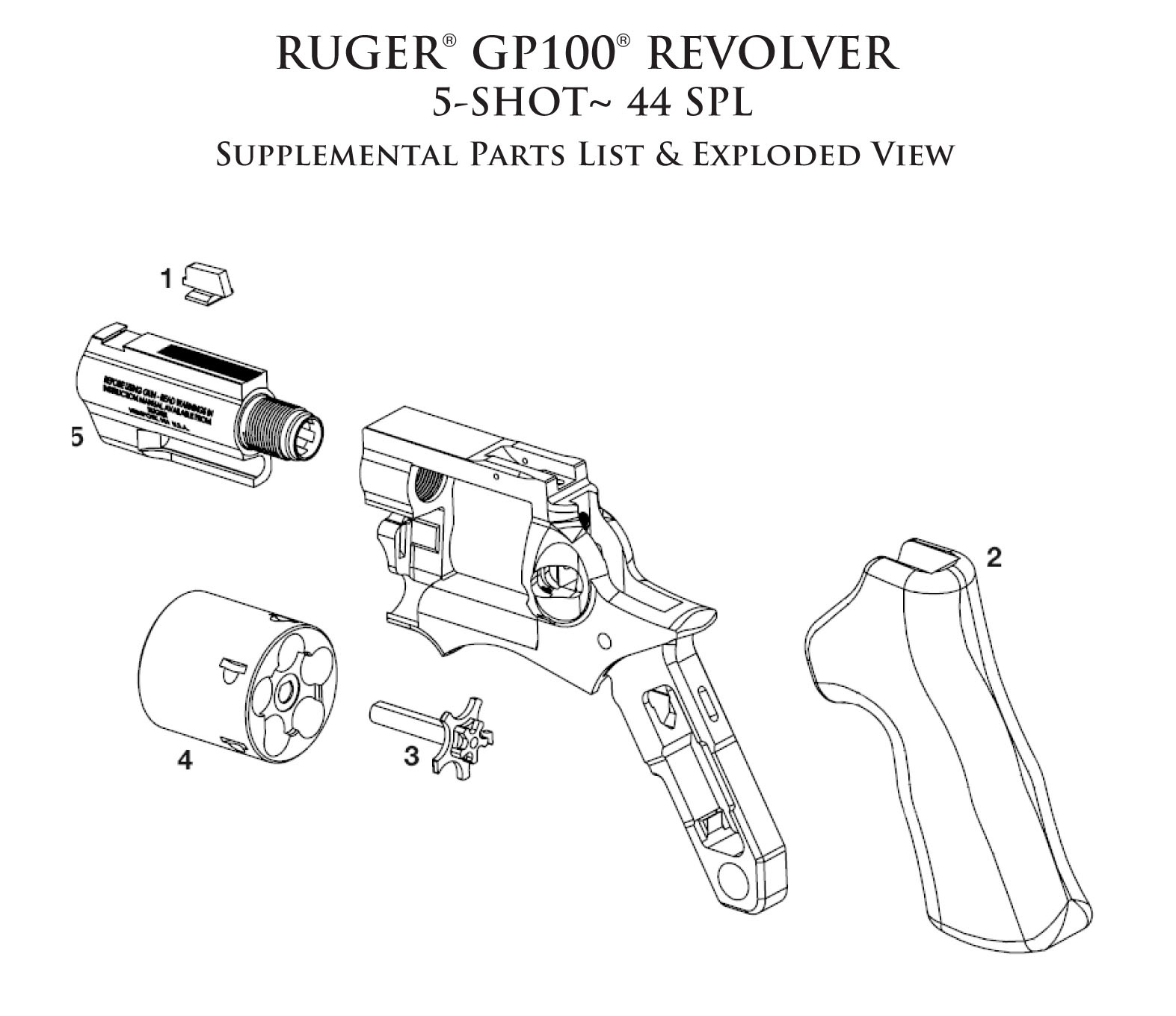

Key - Part Name
1 - Front Sight
2 - Hogue® Grip
*3 - Ejector
*4 - Cylinder, 5-shot, 44 SPL
*5 - Barrel
* PARTS SO MARKED MUST BE FACTORY FIT

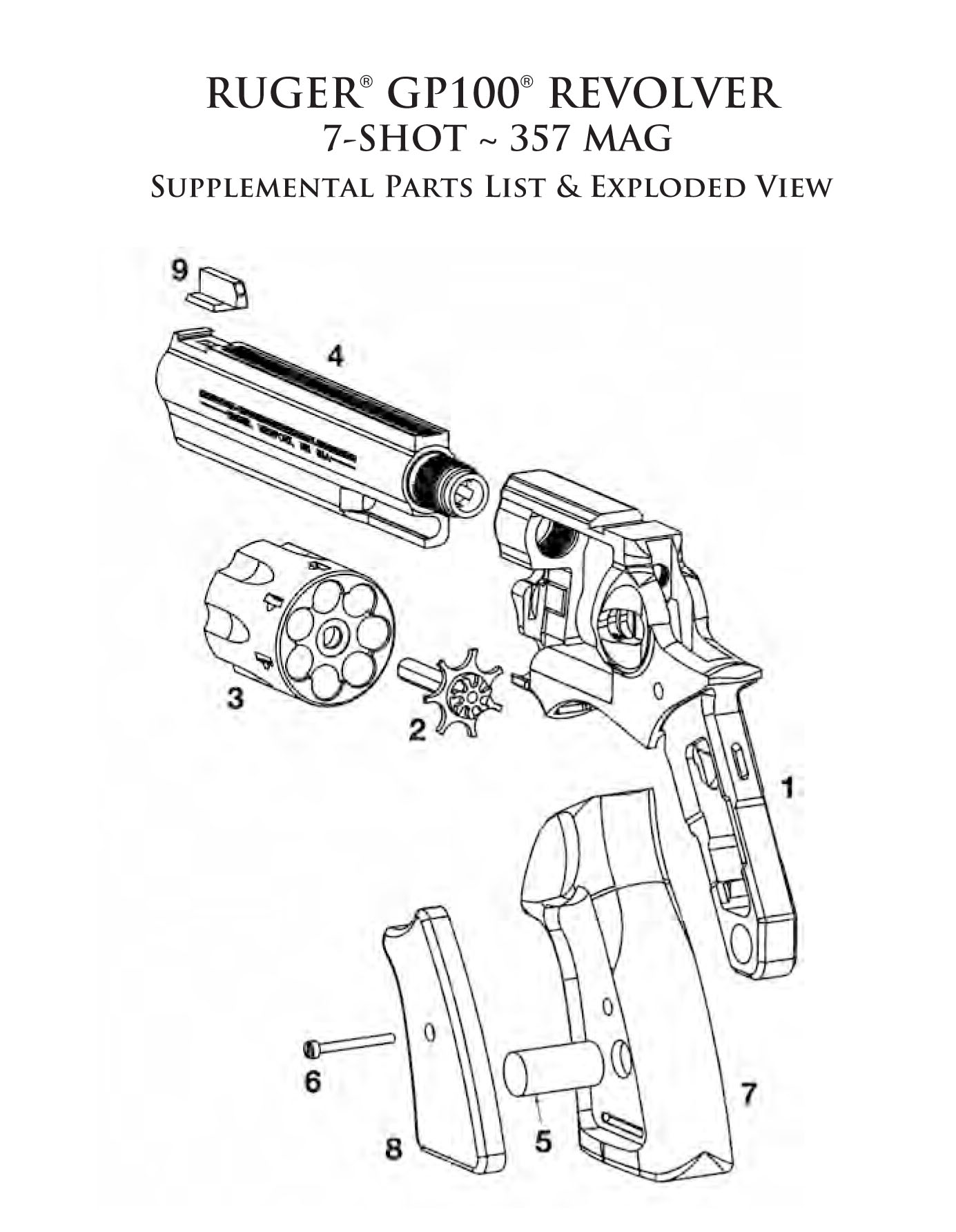

Key - Part Name
†1 - Frame
*2 - Ejector, 7-shot
*3 - Cylinder, 7-shot, 357 Mag
*4 - Barrel
5 - Grip Panel Locator
6 - Grip Screw
7 - Rubber Grip
8 - Wood Inserts, Pair
9 - HiViz® Front Sight
* PARTS SO MARKED MUST BE FACTORY FIT
† Because it is a serial numbered part, the cylinder frame is defined as a ‘firearm’ by Federal Law and is not offered for sale as a component part.

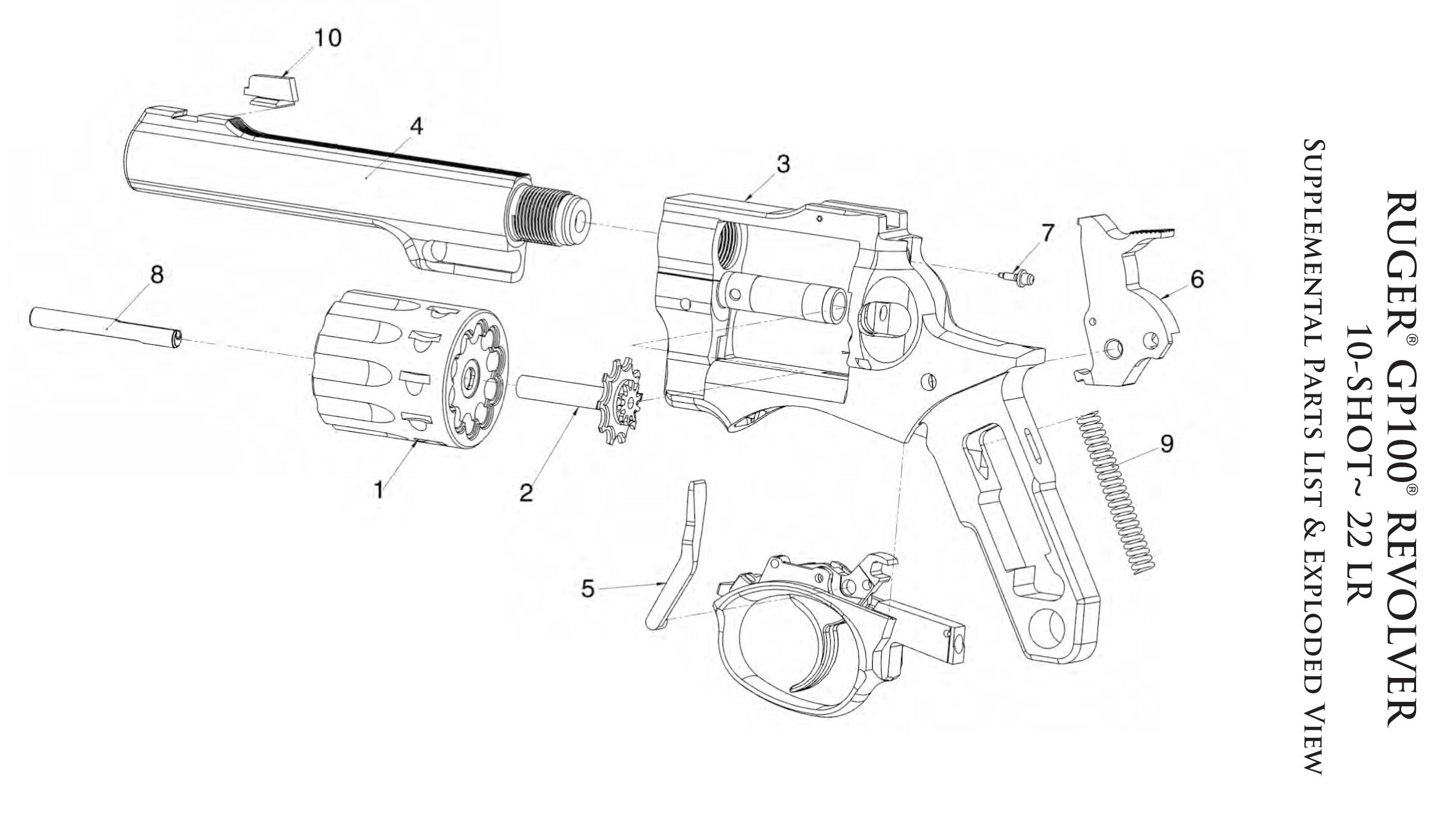

Key - Part Name
*1 - Cylinder, 10-shot, 22 LR
*2 - Ejector
†3 - Frame
*4 - Barrel
5 - Transfer Bar
*6 - Hammer
*7 - Firing Pin
8 - Ejector Rod
9 - Mainspring
10 - Front Sight
* PARTS SO MARKED MUST BE FACTORY FIT
† Because it is a serial numbered part, the cylinder frame is defined as a ‘firearm’ by Federal Law and is not offered for sale as a component part.

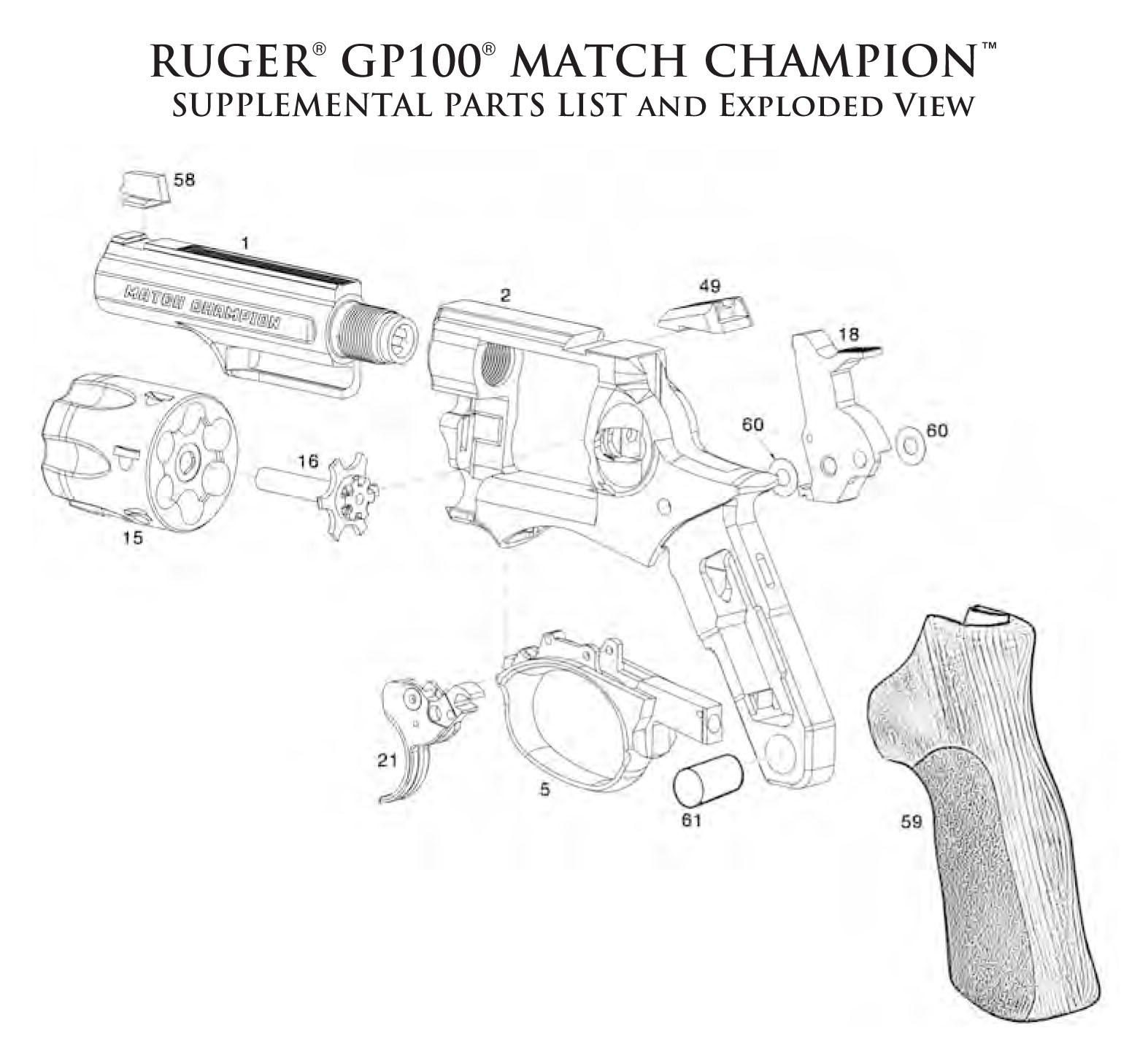

Key No. - Part Name
*1 - Barrel
†2 - Cylinder Frame
*5 - Trigger Guard
*15 - Cylinder
*16 - Ejector
*18 - Hammer
*21 - Trigger
49 - Rear Sight, Novak
58 - Front Sight, Novak
59 - Hogue Wood Grip
60 - Hammer Shims, 2 Req’d
61 - Grip Panel Locator
* PARTS SO MARKED MUST BE FACTORY FIT
† Because it is a serial numbered part, the cylinder frame is defined as a ‘firearm’ by Federal Law and is not offered for sale as a component part.

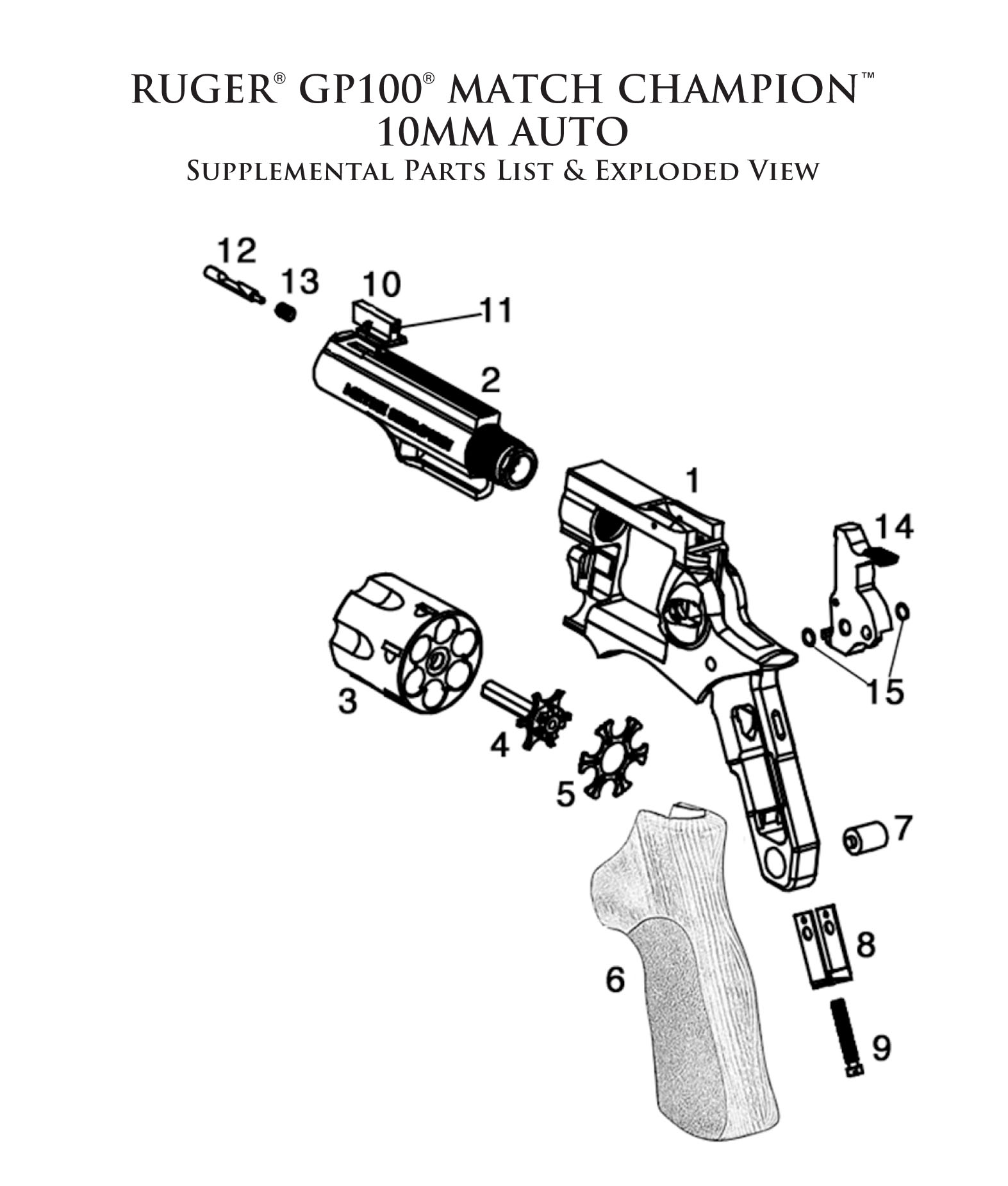

Key - Part Name
†1 - Frame
*2 - Barrel
*3 - Cylinder, 10MM AUTO
4- Ejector
5- Moon Clip
6- Hogue Wood Grip
7- Grip Panel Locator
8- Grip Panel BRKT
9- Grip Panel Mounting Screw
10 - Front Sight
11 - Replaceable Fiber Optic
12 - Front Sight Plunger
13 - Front Sight Plunger Spring
*14 - Hammer
15 - Hammer Shim, 2 Req’d
* PARTS SO MARKED MUST BE FACTORY FIT
† Because it is a serial numbered part, the cylinder frame is defined as a ‘firearm’ by Federal Law and is not offered for sale as a component part.
