Despiece RUGER American Rimfire
Key - Part Name

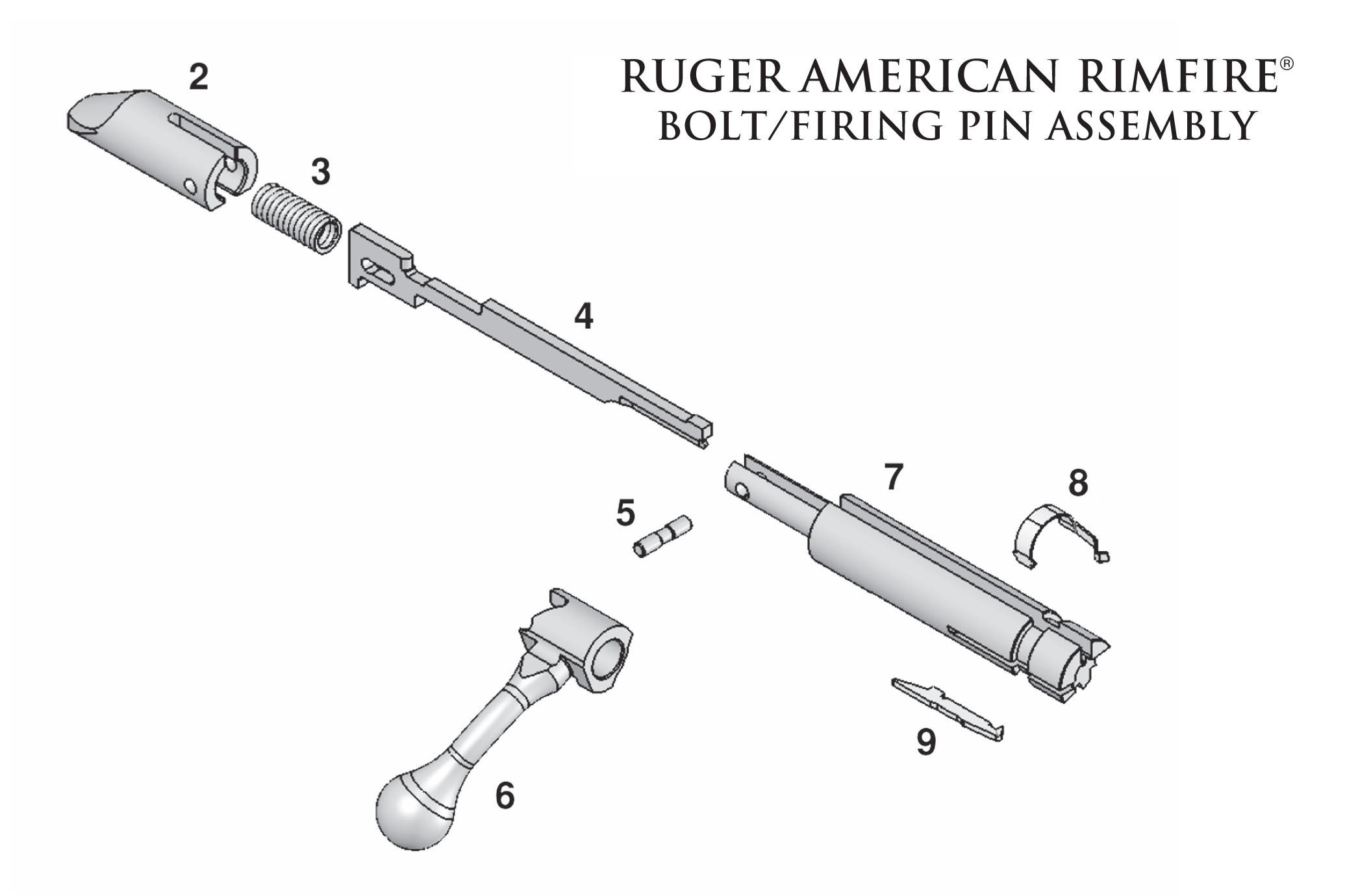

*1 - Bolt / Firing Pin Assembly – Complete - Includes Key Nos. 2 - 9 (See Exploded View p. 35)
2 - Rear Bolt
3 - Firing Pin Spring
4 - Firing Pin
5 - Rear Bolt Retaining Pin
*6 - Bolt Handle
*7 - Front Bolt
8 - Positioner Spring
9 - Extractor

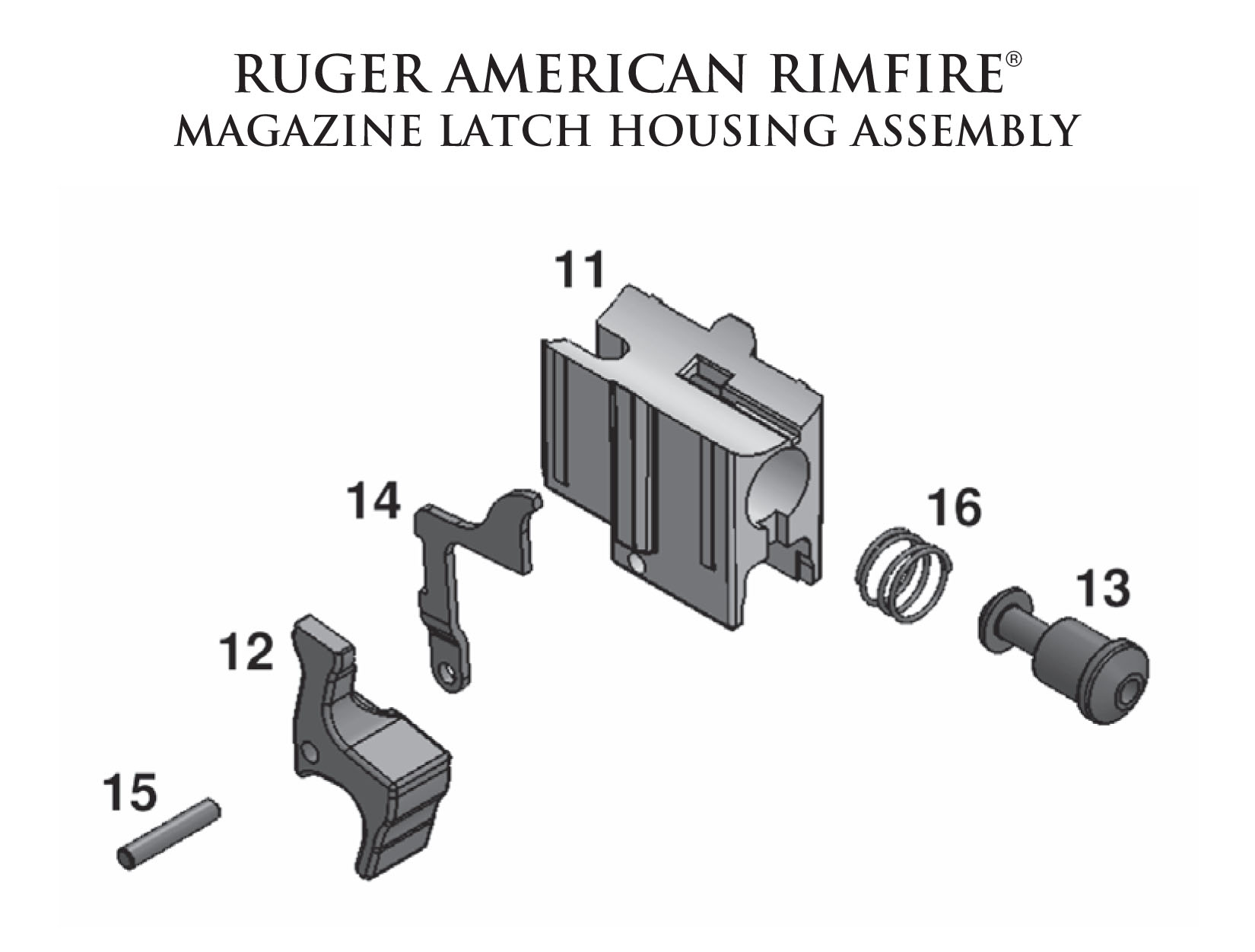

10 - Magazine Latch Housing Assembly – Complete - Includes Key Nos. 11 - 17 (See Exploded View p. 36)
11 - Magazine Latch Housing
12 - Magazine Latch
13 - Magazine Latch Plunger
14 - Ejector
15 - Pivot Pin
16 - Magazine Latch Plunger Spring
17 - Trigger Housing Pin, 2 Req’d

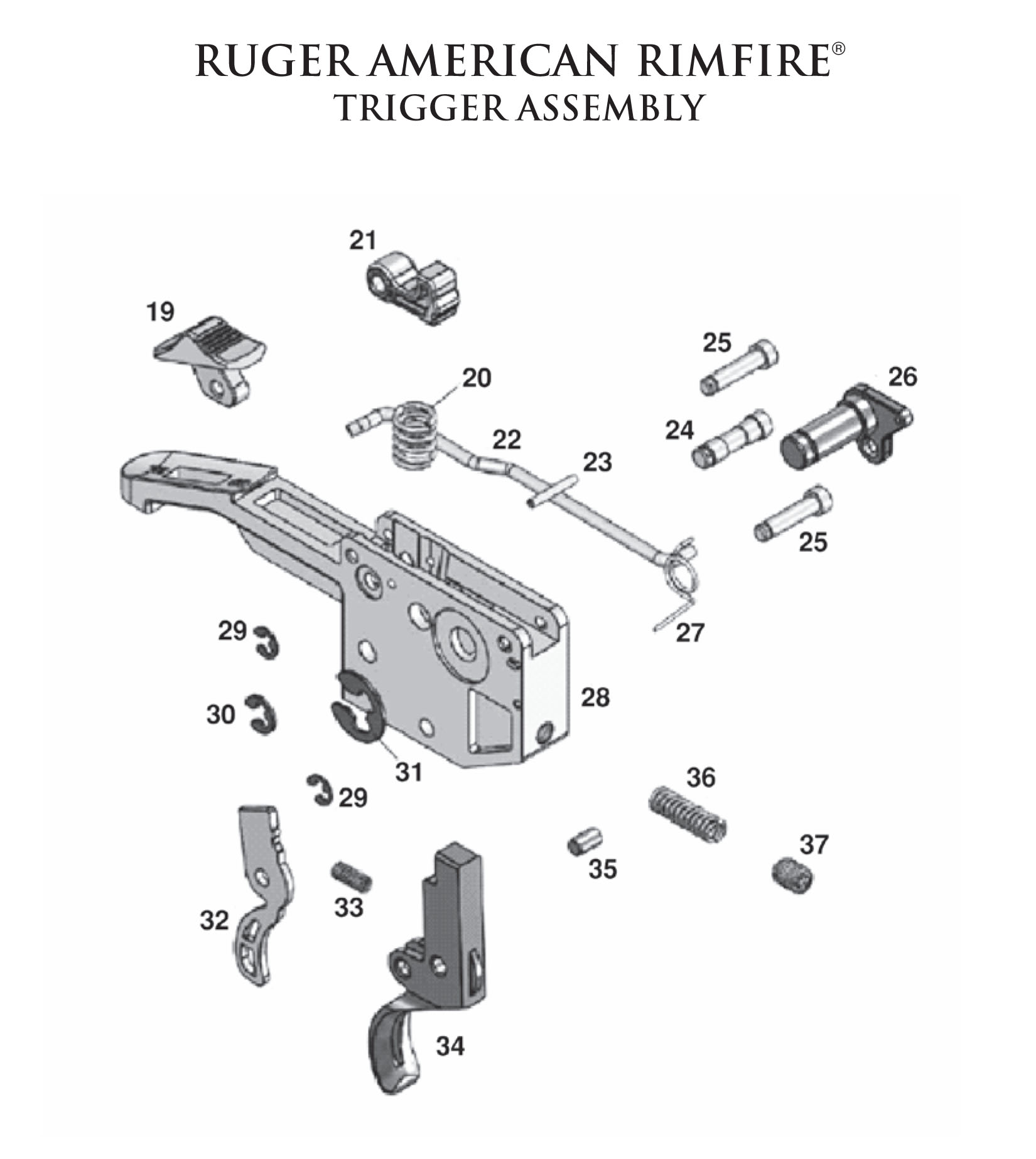

18 - Trigger Assembly – Complete - Includes Key Nos. 19 - 37 (See Exploded View p. 37)
19 - Safety Button
20 - Sear Spring
*21 - Sear
*22 - Safety Link
23 - Sear Stop Pin
*24 - Trigger Block Pin
25 - Trigger Sear Pin, 2 Req’d
*26 - Safety Shaft
*27 - Safety Spring
*28 - Trigger Housing
29 - Trigger Sear Pin E-Clip, 2 Req’d
30 - Trigger Block Pin E-Clip
31 - Safety Shaft E-Clip
*32 - Trigger Release
33 - Trigger Release Spring
*34 - Trigger
35 - Trigger Release Pin
36 - Trigger Spring
37 - Trigger Adjustment Screw
38 - Stock Assembly – Complete - Includes Key Nos. 39 - 48 (See Exploded View p. 34)
39 - Recoil Pad, Standard
40 - Recoil Pad, Standard, High Comb
41 - Recoil Pad, Compact
42 - Recoil Pad, Compact, High Comb
43 - Locknut
44 - Rear Sling Swivel Screw
45 - Stock Body
46 - Action Screw, 2 Req’d
47 - Front Sling Swivel
48 - Recoil Lug
49 - Magazine Assembly
50 - Barrel/Receiver Assembly – Complete - Includes Key Nos. 51 - 61 (See Exploded View p. 34)
51 - Guide Block
†52 - Receiver
53 - Bolt Stop Pin
54 - Bolt Stop Lever
55 - Bolt Stop Spring
56 - Filler Screws (4)
*57 - Assembly Pin
58 - Rear Sight Assembly
*59 - Barrel
60 - Front Sight
61 - Front Sight Screw
* Parts so marked must be factory fitted.
† The receiver is a serial-numbered part and is not offered for sale.
