Despiece RUGER American Gen II
Key- Part Name

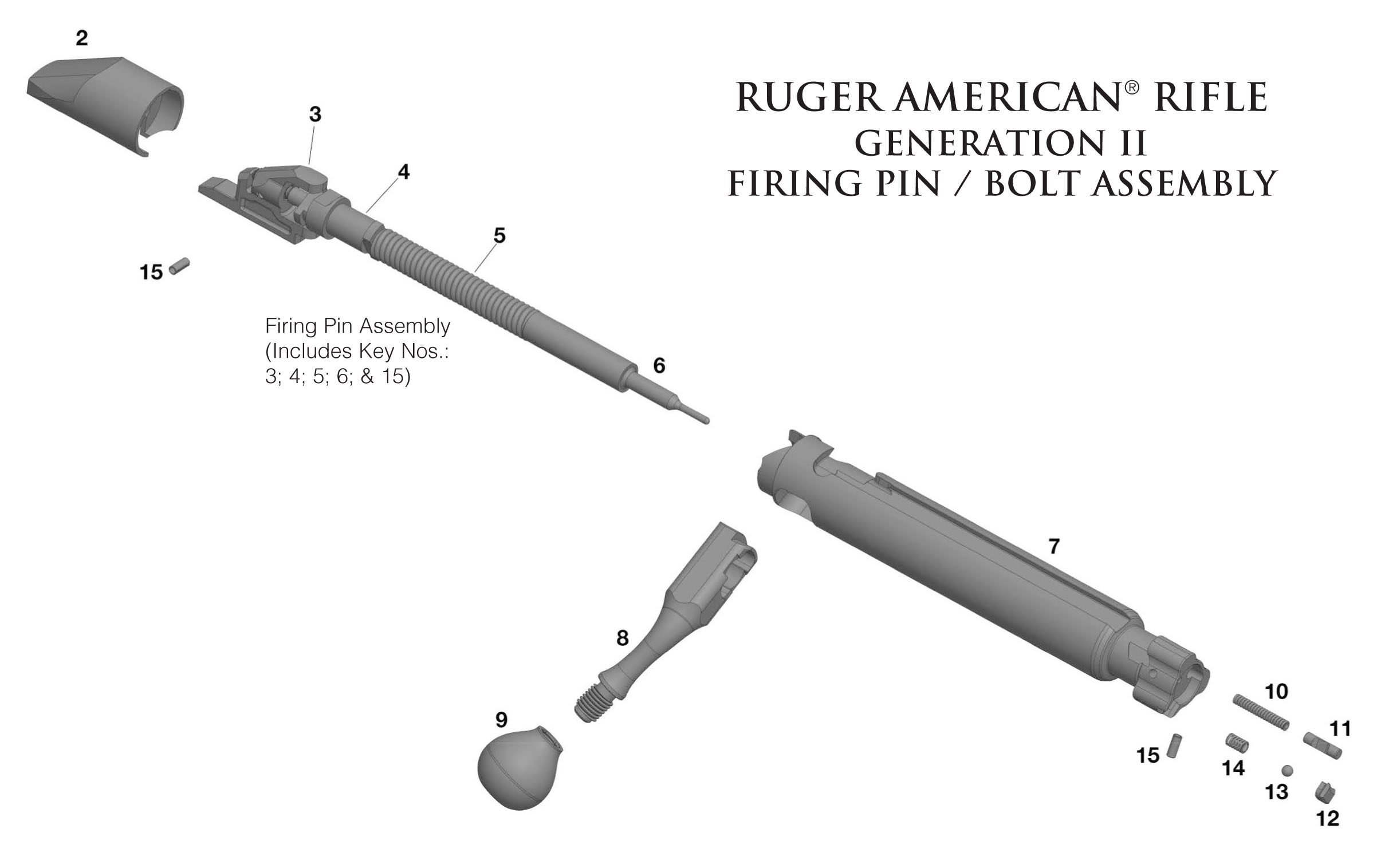

1 - Firing Pin / Bolt Assembly – Complete Includes Key Nos. 2 - 15 (See Exploded View p. 50)
2 - Bolt Shroud
3 - Firing Pin Back
4- Firing Pin Spring Stop
5 - Firing Pin Spring
6 - Firing Pin
*7 Bolt Body
8 - Bolt Handle
9 - Bolt Knob
10 - Ejector Spring
11 - Ejector Plunger
12- Extractor
13 - Extractor Ball
14 - Extractor Spring
15 - Ejector/Firing Pin Back Pin, 2 Req’d
16 - Bolt Stop Lever
17 - Bolt Stop Spring
18 - Bolt Stop Pin
19 - Scope Base
20 - Scope Base Screws, 4 Req’d
†21 - Receiver
*22 - Barrel Nut
*23 - Barrel
24 - Muzzle Device

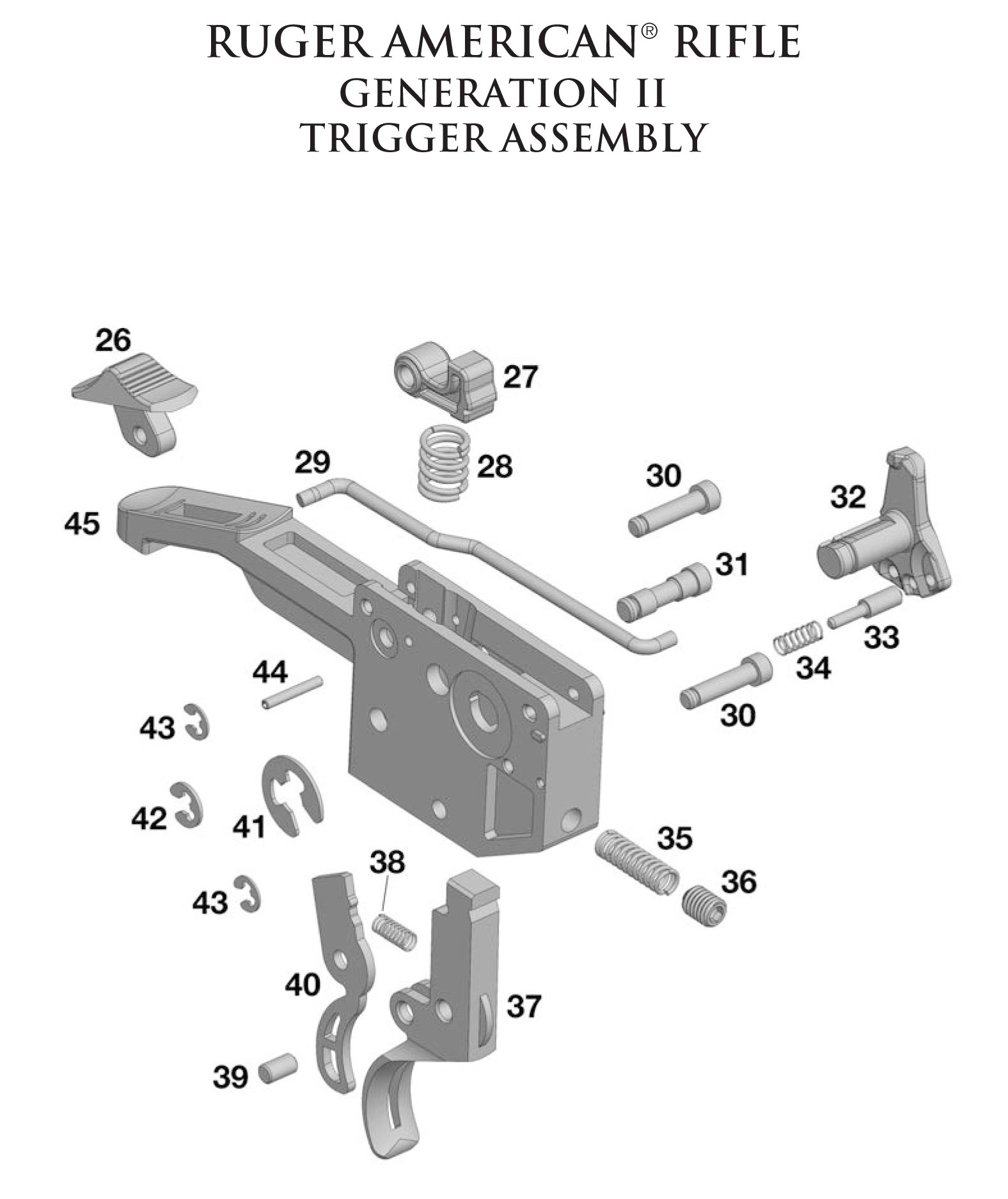

*25 - Trigger Assembly – Complete Includes Key Nos. 26 - 45 (See Exploded View p. 51)
26 - Safety Button
*27 - Sear
28 - Sear Spring
*29 - Safety Link
30 - Trigger Sear Pin, 2 Req’d
*31 - Trigger Block Pin
*32 - Safety Shaft
33 - Safety Plunger
34 - Safety Spring
35 - Trigger Spring
36 - Trigger Adjustment Screw
*37 - Trigger
38 - Trigger Release Spring
39 - Trigger Release Pin
*40 - Trigger Release
41 - Safety Shaft E-Clip
42 - Trigger Block Pin E-Clip
43 - Trigger Sear Pin E-Clip, 2 Req’d
44 - Sear Stop Pin
*45 - Trigger Housing
46 - Trigger Housing Pin, 2 Req’d

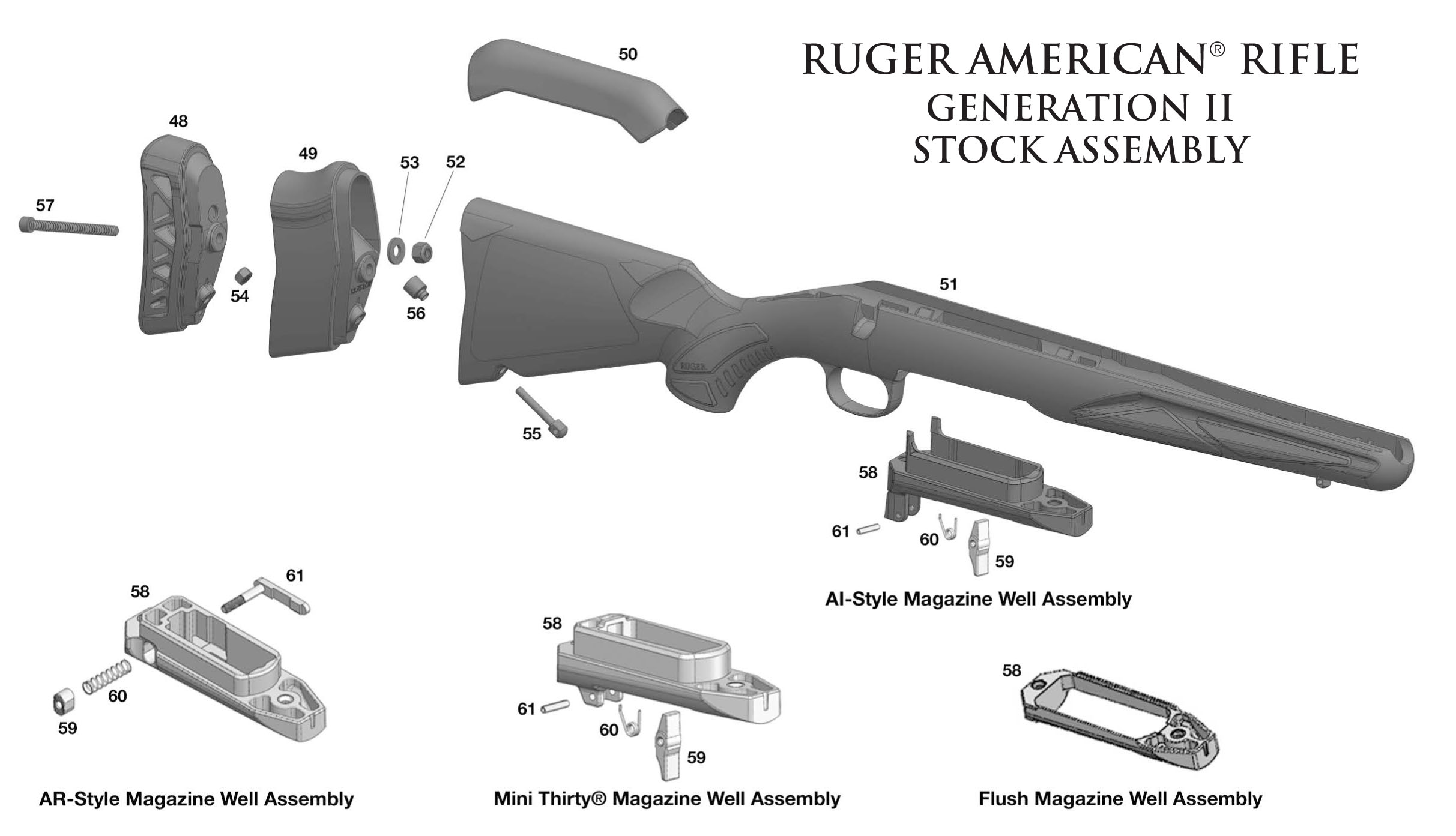

47 - Stock Assembly – Complete Includes Key Nos. 48 - 64 (See Exploded View p. 52)
48 - Recoil Pad
49 - Length-of-Pull Spacer
50 - Comb
51 - Stock
52 - Length-of-Pull Nut
53 - Length-of-Pull Spacer Washer
54 - Rear Swivel Stud Nut
55 - Rear Swivel Stud
56 - Rear Swivel Stud Standoff
57 - Length of Pull Spacer Bolt
58 - Magazine Well
59 - Magazine Button – AR-Style Magazine Well - Magazine Latch – Mini Thirty & AI-Style Magazine Well
60 - Magazine Latch Spring
61 - Magazine Latch Pin
62 - Action Screws, 2 Req’d
63 - Magazine
* Parts so marked must be factory fit.
† The receiver is a serial-numbered part and is not offered for sale.
