Despiece RUGER 77 Series
|

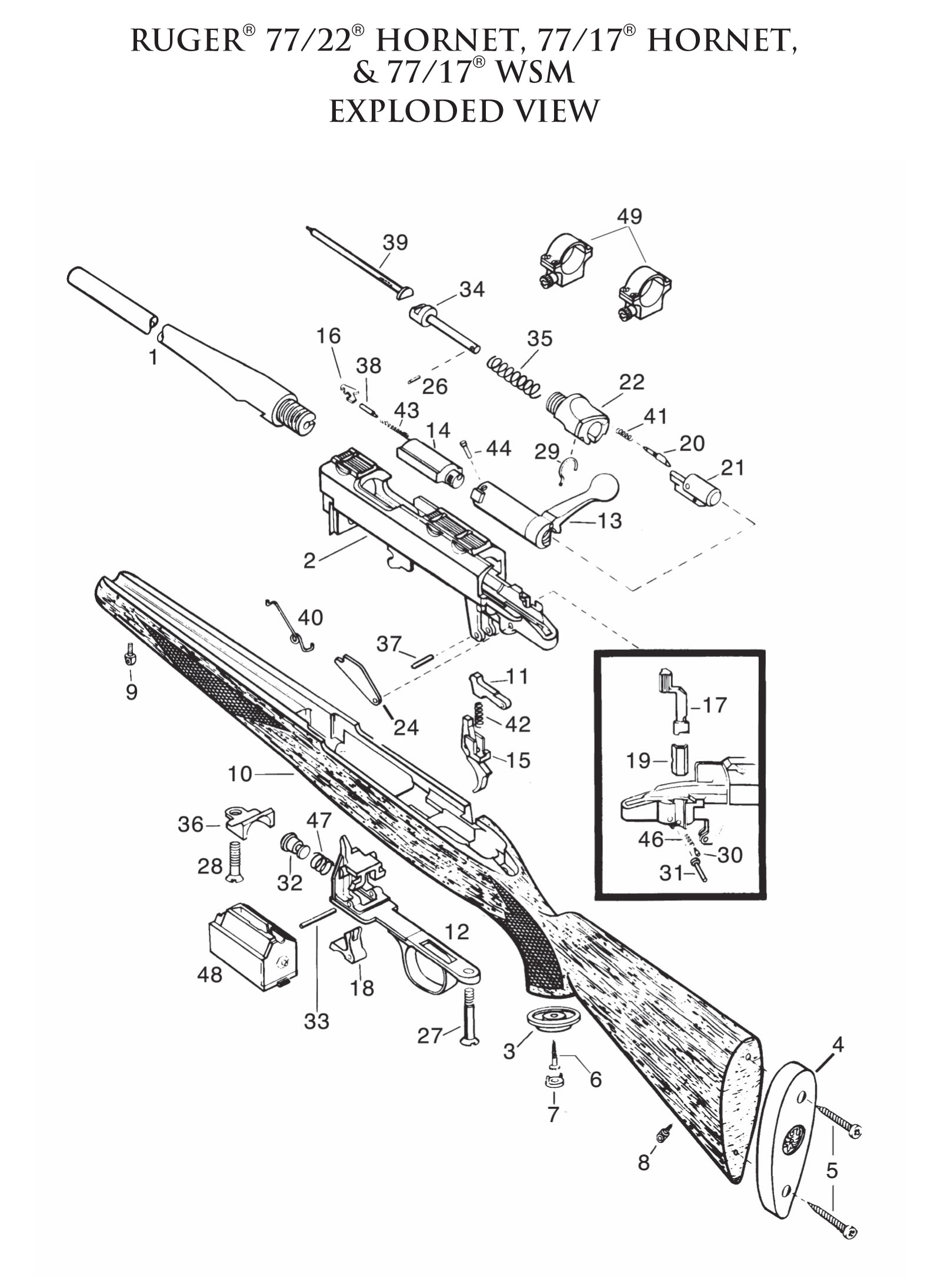

Key |
Part Name |
Key |
Part Name |
|
*1 |
Barrel |
25 |
Bolt Stop Plunger |
|
1a |
Barrel Retainer Screws, 2 Req'd |
26 |
Striker Cross Pin |
|
1b |
Barrel Retainer V- Block |
27 |
Rear Mounting Screw |
|
†2 |
Receiver |
28 |
Front Mounting Screw |
|
3 |
Pistol Grip Cap |
29 |
Bolt Lock Plunger Retaining Ring |
|
4 |
Recoil Pad |
30 |
Safety Selector Detent |
|
5 |
Recoil Pad Screws, 2 Req'd |
31 |
Sear Pivot Pin |
|
6 |
Pistol Grip Cap Screw |
32 |
Magazine Latch Plunger |
|
7 |
Grip Cap Medallion |
33 |
Magazine Latch Lever Pivot Pin |
|
8 |
Sling Swivel Screw |
34 |
Striker |
|
9 |
Sling Swivel Front Screw with Nut |
35 |
Striker Spring |
|
10 |
Stock |
36 |
Magazine Well Liner |
|
*11 |
Sear |
37 |
Firing Pin Cross Pin |
|
12 |
Trigger Guard Assembly |
38 |
Extractor Plunger, 2 Req'd |
|
*13 |
Bolt Handle |
*39 |
Firing Pin |
|
*14 |
Breech Block |
40 |
Bolt Stop Plunger Spring |
|
*15 |
Trigger |
41 |
Bolt Lock Plunger Spring |
|
*16 |
Extractor |
42 |
Trigger/Sear Spring |
|
*17 |
Safety Selector |
43 |
Extractor Spring |
|
18 |
Magazine Latch Lever |
44 |
Breech Block Retaining Pin |
|
19 |
Safety Selector Retainer |
45 |
Cartridge Support Spring |
|
20 |
Bolt Lock Plunger |
46 |
Magazine Latch Spring |
|
21 |
Cocking Piece |
47 |
Magazine Latch Plunger Spring |
|
22 |
Bolt Sleeve |
48 |
Magazine |
|
23 |
Cartridge Support |
49 |
Scope Rings |
|
24 |
Bolt Stop |
PARTS SO MARKED MUST BE FACTORY FIT
†Because the receiver is a serial numbered component, it is not sold as a separate component.
|

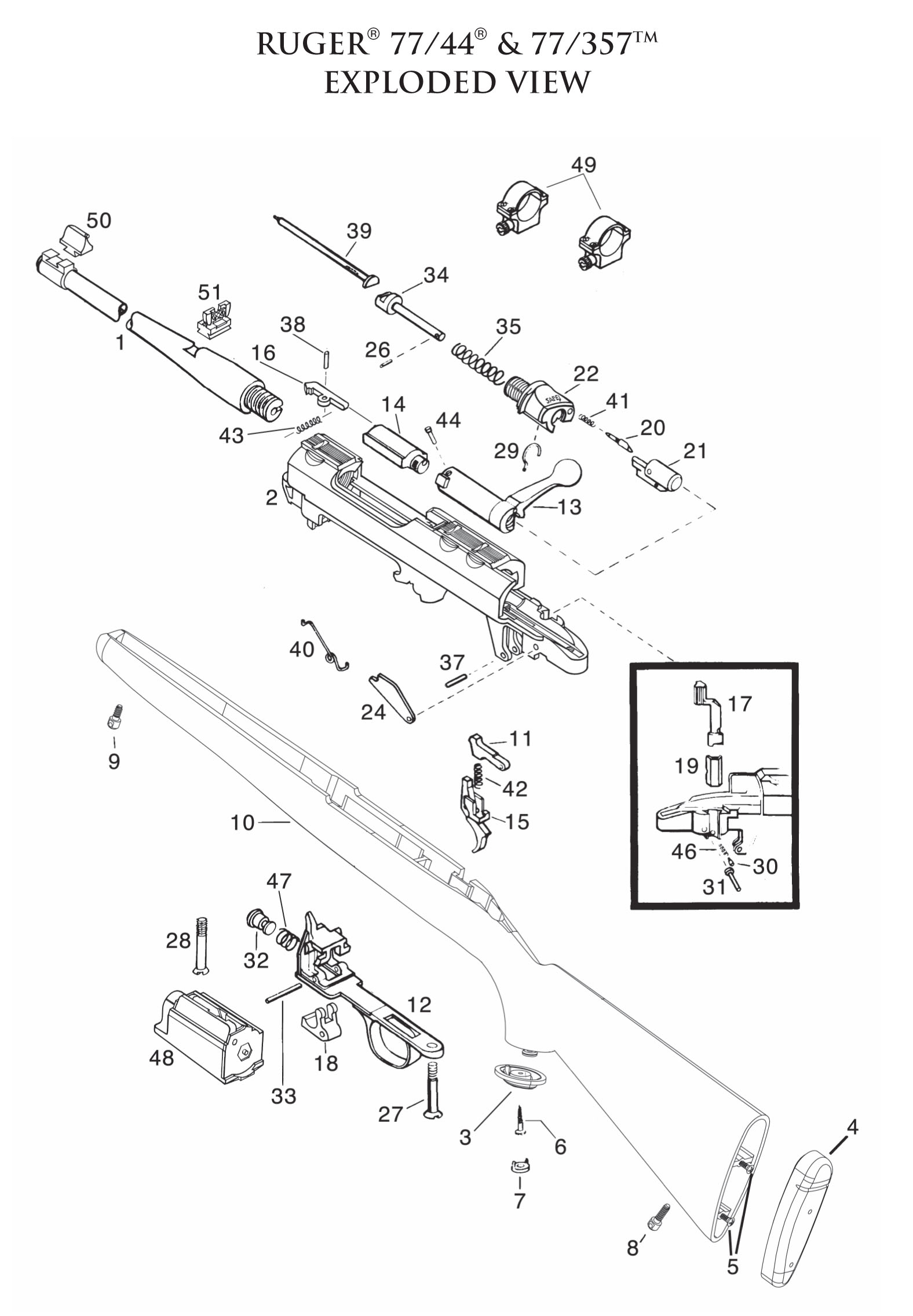

Key |
Part Name |
Key |
Part Name |
|
*1 |
Barrel |
27 |
Rear Mounting Screw |
|
†2 |
Receiver |
28 |
Front Mounting Screw |
|
3 |
Pistol Grip Cap |
29 |
Bolt Lock Plunger Retaining Ring |
|
4 |
Recoil Pad |
30 |
Safety Selector Detent |
|
5 |
Recoil Pad Screws, 2 Req'd |
31 |
Sear Pivot Pin |
|
6 |
Pistol Grip Cap Screw |
32 |
Magazine Latch Plunger |
|
7 |
Grip Cap Medallion |
33 |
Magazine Latch Lever Pivot Pin |
|
8 |
Sling Swivel Screw |
34 |
Striker |
|
9 |
Sling Swivel Front Screw with Nut |
35 |
Striker Spring |
|
10 |
Stock |
36 |
Magazine Well Liner |
|
*11 |
Sear |
37 |
Firing Pin Cross Pin |
|
12 |
Trigger Guard Assembly |
38 |
Extractor Plunger |
|
*13 |
Bolt Handle |
*39 |
Firing Pin |
|
*14 |
Breech Block |
40 |
Bolt Stop Plunger Spring |
|
*15 |
Trigger |
41 |
Bolt Lock Plunger Spring |
|
*16 |
Extractor |
42 |
Trigger/Sear Spring |
|
*17 |
Safety Selector |
43 |
Extractor Spring |
|
18 |
Magazine Latch Lever |
44 |
Breech Block Retaining Pin |
|
19 |
Safety Selector Retainer |
46 |
Magazine Latch Spring |
|
20 |
Bolt Lock Plunger |
47 |
Magazine Latch Plunger Spring |
|
21 |
Cocking Piece |
48 |
Magazine |
|
22 |
Bolt Sleeve |
49 |
Scope Rings |
|
24 |
Bolt Stop |
50 |
Front Sight |
|
25 |
Bolt Stop Plunger |
51 |
Rear Sight |
|
26 |
Striker Cross Pin |
|
|
PARTS SO MARKED MUST BE FACTORY FIT
†Because the receiver is a serial numbered component, it is not sold as a separate component.

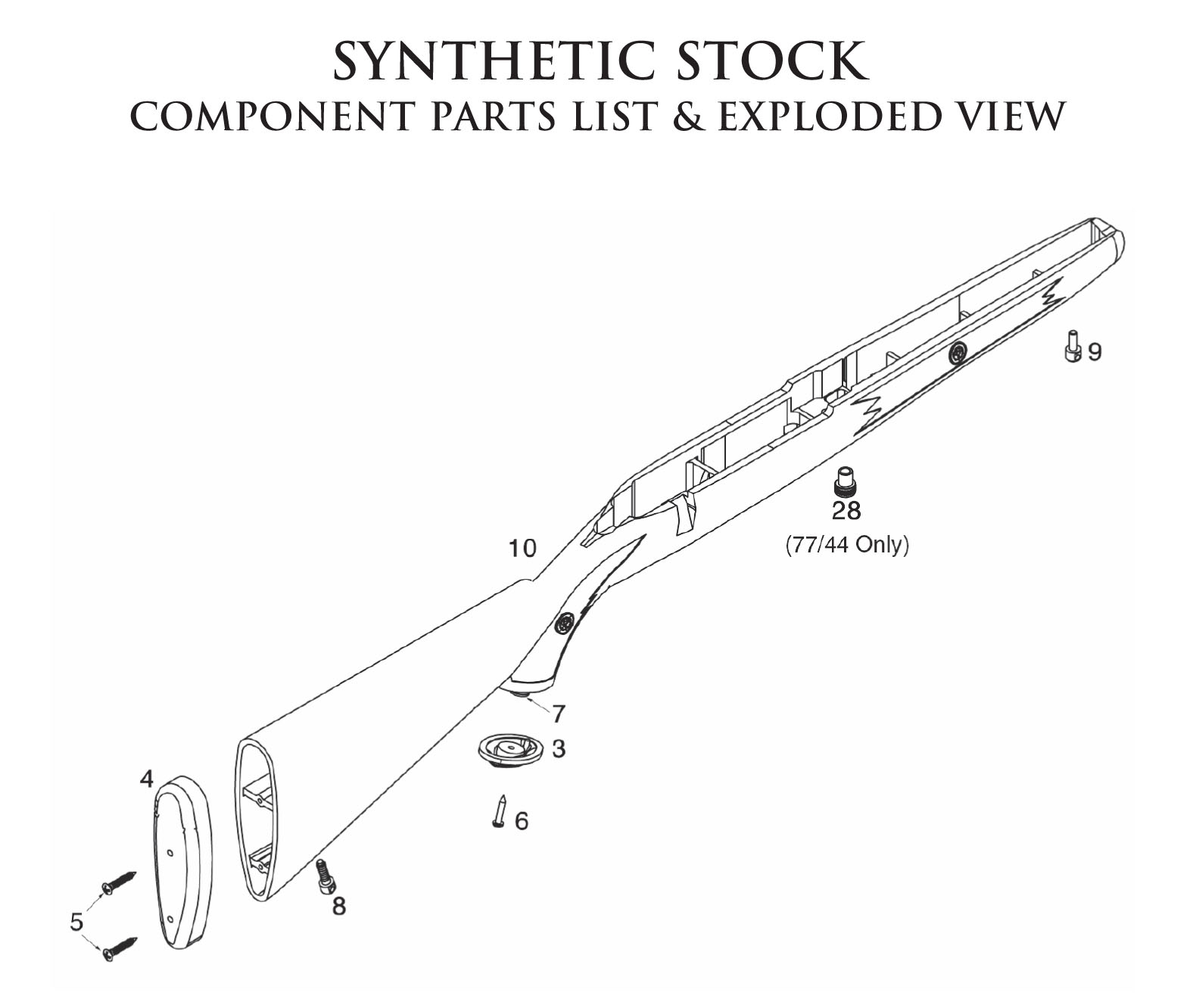

Key - Part Name
1 - Pistol Grip Cap
2 - Recoil Pad
3 - Recoil Pad Screws, 2 Req'd
6 - Pistol Grip Cap Screw
7 - Grip Cap Medallion
8 - Sling Swivel Screw
9 - Sling Swivel Front
10 - Screw with Nut Stock
11- Front Mounting Screw – (77/44 only)
