Despiece RUGER 10/22
Part - Name
1 - Barrel
†2 - Receiver
3 - Receiver Cross Pin, 2 Req’d
4 - Receiver Filler Screw, 4 Req’d
5 - Barrel Retainer V-Block
6 - Barrel Retainer Screw, 2 Req’d

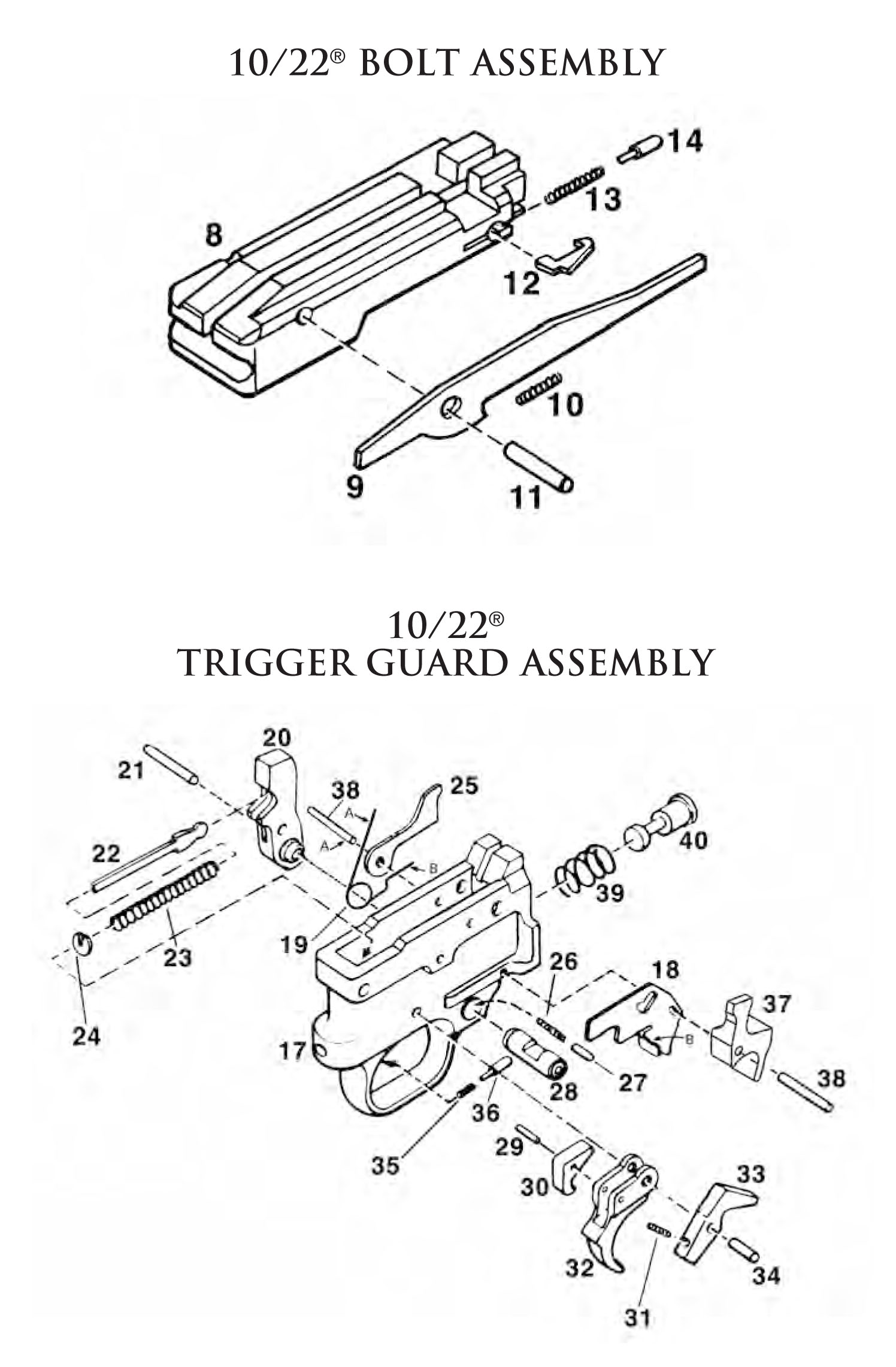

7 - Bolt Assembly – Complete Includes Key Nos. 8 - 14 (See Exploded View p. 47)
8 - Bolt
9 - Firing Pin
10 - Firing Pin Rebound Spring
11 - Firing Pin Stop Pin
12 - Extractor
13 - Extractor Spring
14 - Extractor Plunger
15 - Cocking Handle, Guide Rod & Recoil Spring Assembly
16 - Trigger Guard Assembly – Complete Includes Key Nos. 17 - 40 (See Exploded View p. 47)
17 - Trigger Guard
18 - Bolt Lock
19 - Bolt Lock Spring
*20 - Hammer
21 - Hammer Pivot Pin
22 - Hammer Strut
23 - Hammer Spring
24 - Hammer Strut Washer
25 - Ejector
26 - Safety Detent Plunger Spring
27 - Safety Detent Plunger
*28 - Safety
29 - Disconnector & Trigger Pivot Pin
30 - Disconnector
31 - Sear Spring
*32 - Trigger
*33 - Sear
34 - Trigger Pivot Pin
35 - Trigger Plunger Spring
36 - Trigger Plunger
37 - Magazine Latch
38 - Magazine Latch Pivot & Ejector Pivot Pin, 2 Req’d
39 - Magazine Latch Plunger Spring
40 - Magazine Latch Plunger

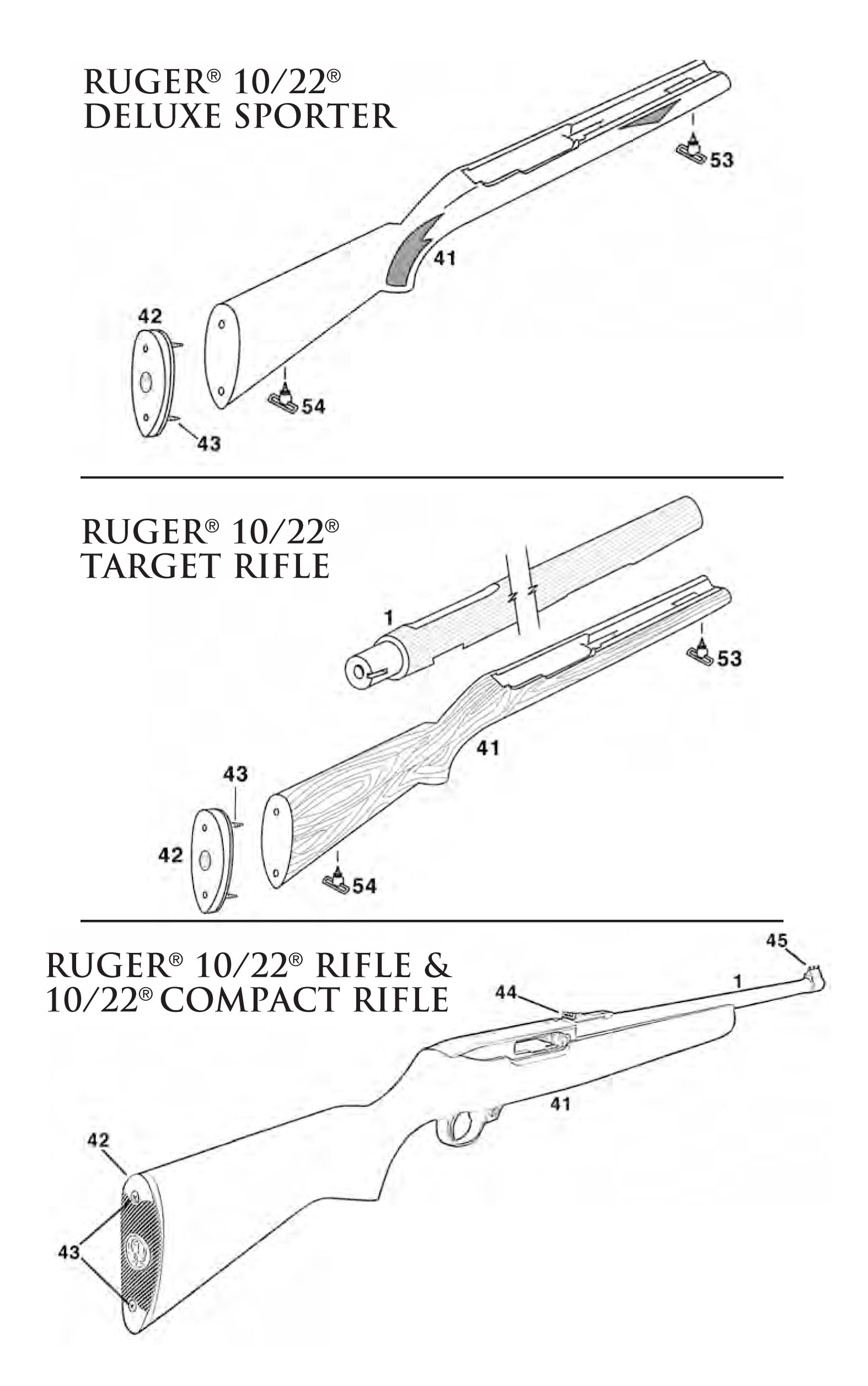

41 - Stock
42 - Butt Plate
43 - Butt Plate Screw, 2 Req’d
44 - Rear Sight
45 - Front Sight
46 - Bolt Stop Pin
47 - Barrel Band
48 - Barrel Band Screw
49 - Magazine Assembly
50 - Scope Base Adapter
51 - Scope Base Screws, 4 Req’d
52 - Take Down Screw
53 - Sling Swivel, Front
54 - Sling Swivel, Rear45

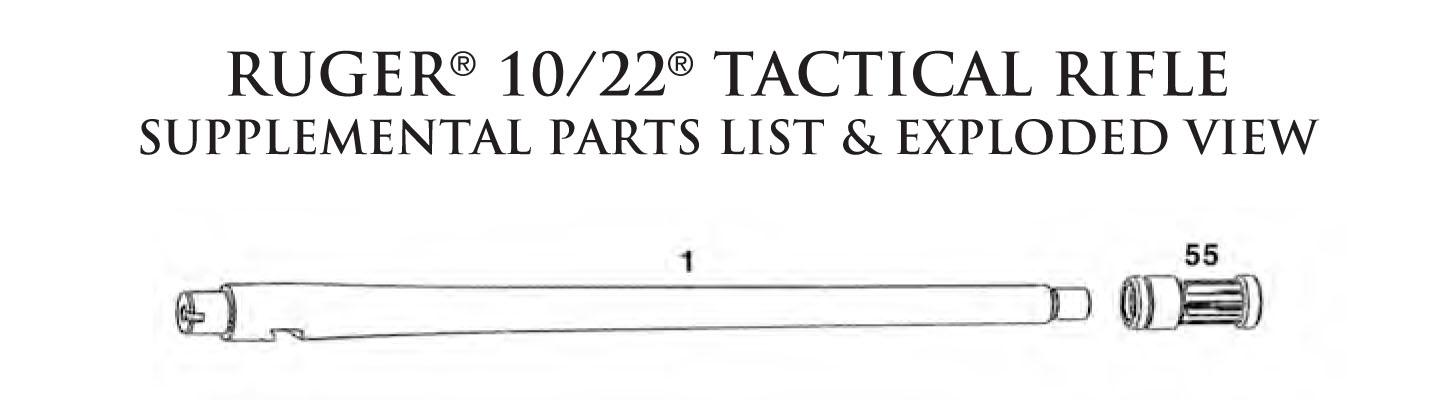

55 - Flash Hider
† The receiver is a serial-numbered part and is not offered for sale.
* Parts so marked must be factory fit.

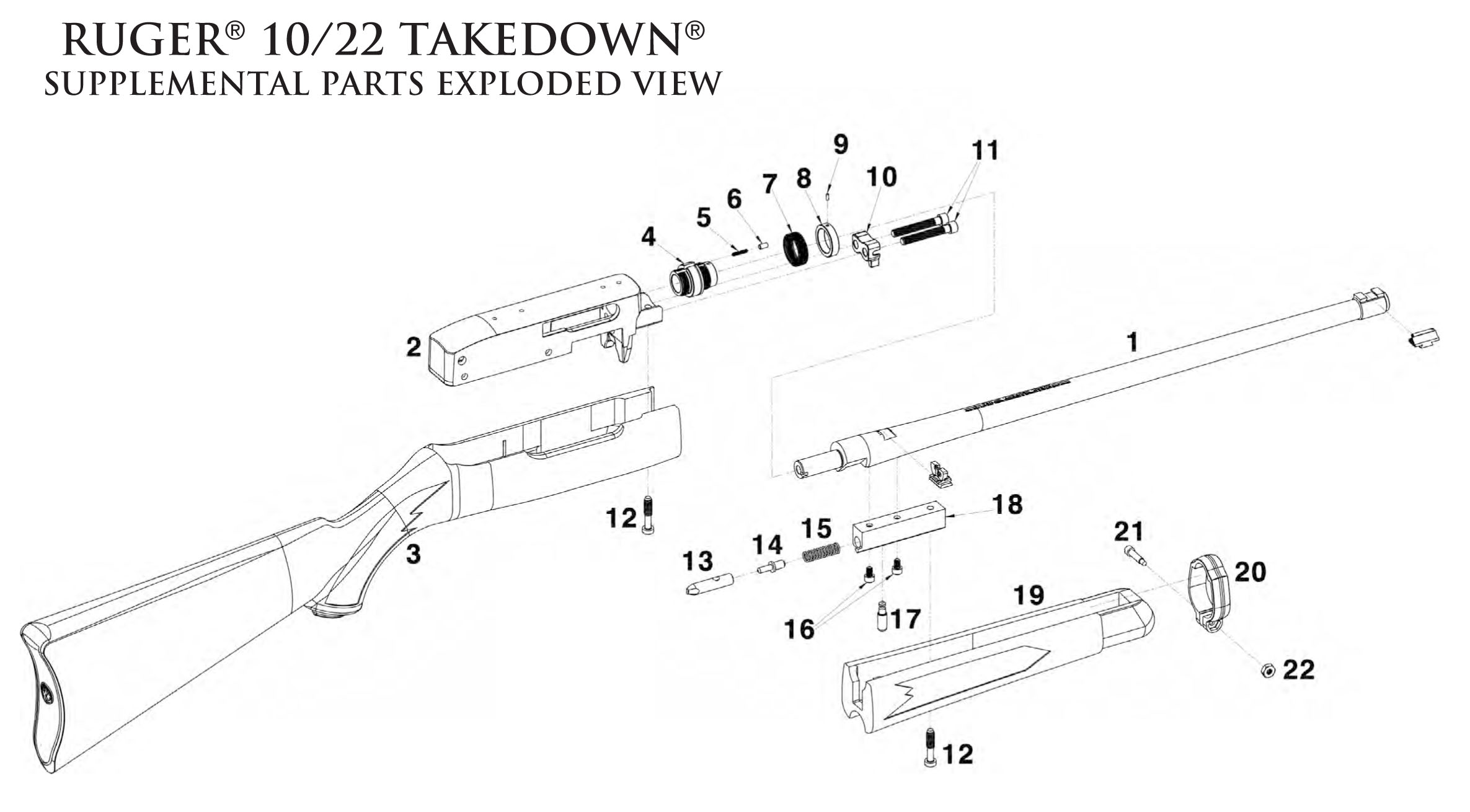

Part - Name
1- Barrel
†2 - Receiver
3 - Buttstock Assembly
*4 - Insert
5 - Detent Spring
6 - Safety Detent Plunger
7 - Adjusting Knob
8 - Spacer
9 - Spacer Pin
10 - Clamp
11 - Barrel Retainer Screws, 2 Req’d
12 - Take Down Screw
13 - Locking Plunger
14 - Locking Plunger Detent
15 - Locking Plunger Spring
16 - Mounting Screws, 2 Req’d
17 - Locking Lever
18 - Block
19 - Stock – Forend
20 - Barrel Band, Black Plastic
21 - Barrel Band Screw
22 - Barrel Band Retaining Nut
† The receiver is a serial-numbered part and is not offered for sale.
* Parts so marked must be factory fit.
