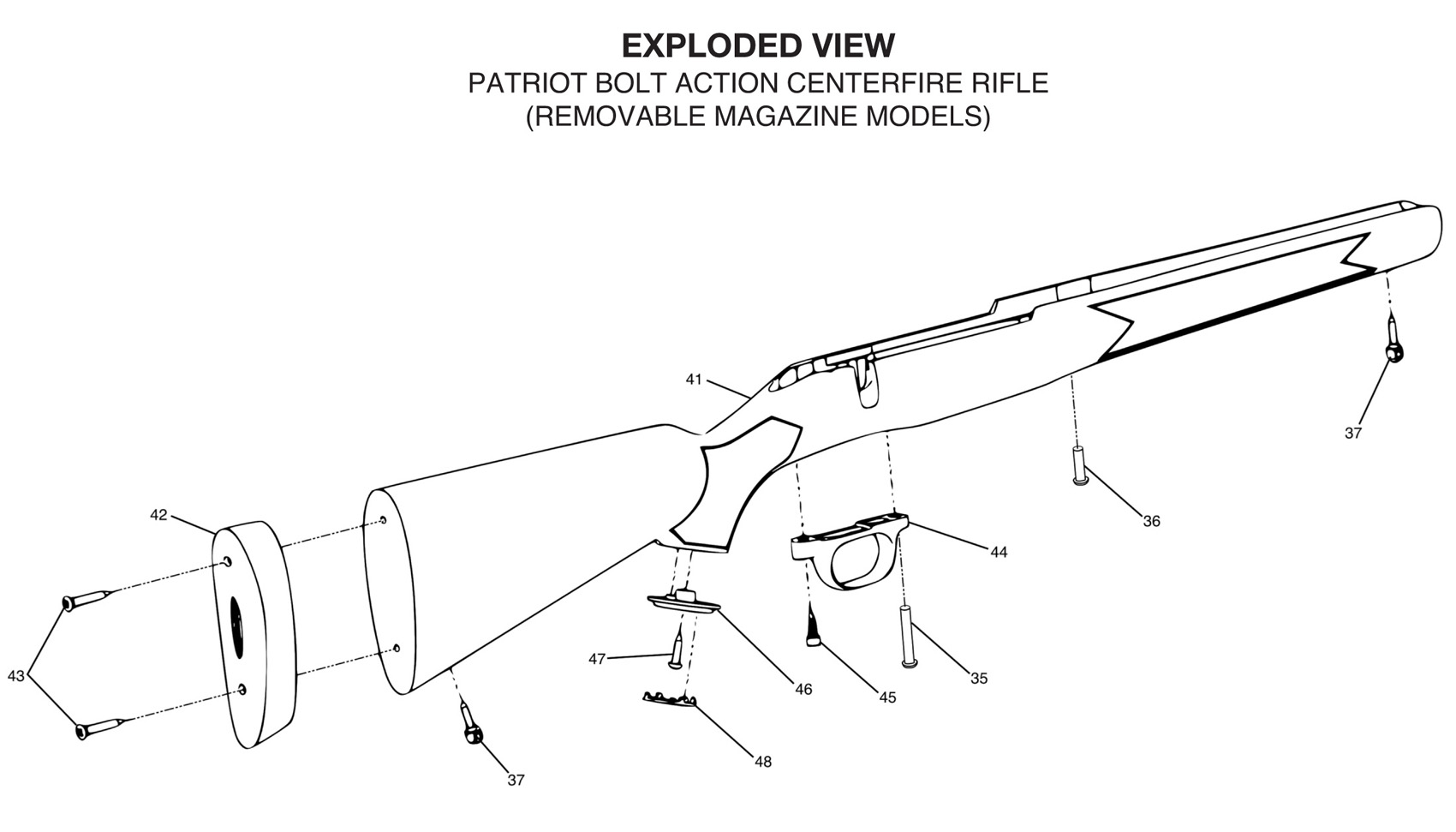

Despiece Mossberg Patriot
| ITEM | DESCRIPTION | ITEM | DESCRIPTION |
| 1* | RECEIVER | 25 | STOCK SYNTHETIC |
| 2* | BOLT STOP | 26 | RECOIL PAD |
| 3 | BOLT STOP SCREW | 27 | RECOIL PAD SCREWS |
| 4 | BOLT STOP SPRING | 28 | MAGAZINE |
| 5 | SCOPE MOUNT, REAR | 29 | MAGAZINE SPRING |
| 6 | SCOPE MOUNT SCREWS, REAR | 30 | FOLLOWER |
| 7 | SCOPE MOUNT, FRONT | 31 | MAGAZINE GUIDE |
| 8 | SCOPE MOUNT SCREWS, FRONT | 32 | LATCH SPRING |
| 9* | BARREL | 33 | LATCH |
| 10* | BARREL LOCK NUT | 34 | LATCH PIN |
| 11* | RECOIL LUG | 35 | REAR ACTION SCREW |
| 12 | STRIKER ASSEMBLY | 36 | FRONT ACTION SCREW |
| 13 | BOLT BODY ASSEMBLY | 37 | SWIVEL STUDS |
| 14 | BOLT HEAD ASSEMBLY PIN | 38* | BARREL (OPEN SIGHTS) |
| 15* | BOLT HEAD | 39 | REAR SIGHT ASSEMBLY (WITH SCREWS) |
| 16 | EJECTOR | 40 | FRONT SIGHT ASSEMBLY (WITH SCREWS) |
| 17 | EJECTOR SPRING | 41 | STOCK, WOOD |
| 18 | EJECTOR PIN | 42 | RECOIL PAD |
| 19 | EXTRACTOR | 43 | RECOIL PAD SCREWS |
| 20 | EXTRACTOR DETENT BALL | 44 | TRIGGER GUARD |
| 21 | EXTRACTOR SPRING | 45 | REAR TRIGGER GUARD SCREWS |
| 22* | TRIGGER HOUSING ASSEMBLY | 46 | PISTOL GRIP CAP |
| 23* | TRIGGER HOUSING SCREW | 47 | PISTOL GRIP CAP SCREW |
| 24* | TRIGGER HOUSING WASHER | 48 | PISTOL GRIP CAP COVER |
* Items on Parts List are reserved for qualified gunsmiths or the Authorized Product Center Only
